Digital Display High Potential Test Equipment For Electrical Appliances

China Digital Display High Potential Test Equipment For Electrical Appliances supplier
Digital Display High Potential Test Equipment For Electrical Appliances supplier Digital Display High Potential Test Equipment For Electrical Appliances supplier Digital Display High Potential Test Equipment For Electrical Appliances supplier Digital Display High Potential Test Equipment For Electrical Appliances supplier

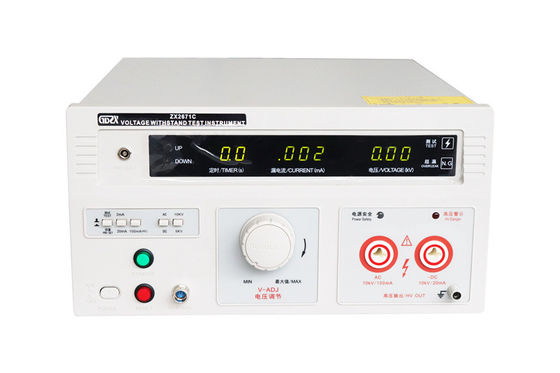

Large Image :  Digital Display High Potential Test Equipment For Electrical Appliances

Product Details:

Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX267

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 500--2250USD/PCS
Packaging Details: carton
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output Voltage: 0~20kV Leakage Current Range: 0~2/20/200mA
Time Control:: 0.0s-999s,continuously Setting &manual Power Dissipation:: 100VA
Size:: 390*270*180mm Leakage Current Accuracy:: ≤±5%
Power:: 5KW Voltage:: AC/DC 0-5KV
Leakage Current (AC):: 0-2 M A/20m A



5kV 10kv 20kV Portable High Voltage Withstanding Tester Hipot Tester


This high voltage withstanding test (also called dielectric strength test, hi-pot test, hi-pot test, breakdown test or flash test) is widely used in electrical appliances, rubber-wooden facility, transformer, wires, power meter, motor, source jack-socket, cables and all kinds of electronic and electrical products. Our product is the ideal instrument for such test.

The withstand voltage tester is an instrument for measuring the withstand voltage. It can intuitively, accurately, quickly and reliably test the electrical safety performance indicators such as breakdown voltage and leakage current of various objects to be tested, and can be used as a high voltage source to test the element. Device and overall performance. The pressure tester is designed in accordance with international and domestic safety standards such as IEC, CSA, UL, JIS, and withstand voltage output of 1kV~50kV and leakage current of 0~200mA. Suitable for all kinds of household appliances, power switches, wire and cable, transformers, terminal blocks, high-voltage bakelite electrical appliances, motors, medical, chemical, instrumentation, etc., as well as the test of safe withstand voltage and leakage current of high-voltage systems, and also a research laboratory And the pressure test equipment is indispensable for the technical supervision department.
The pressure tester product is based on the absorption and digestion of advanced pressure testers at home and abroad, combined with the actual use of many users to improve and perfect the design. The test voltage and leakage current are displayed at the same time. The function is rich and practical. It can reflect the actual value of the leakage current of the measured body through the leakage current display and compare the pressure resistance between different batches of different products or different manufacturers to ensure the safety of your product. The performance is flawless, and it is at the domestic leading level in terms of technical performance and quality reliability.


Features
1. Digital display
2. displaying the leakage current of the measured equipment.
3. Can set and display the time, countdown the measurement time.
4. Can set the alarm current value.
5. The output waveform: sine wave (50Hz).

This series of products meet the following standards:
Household appliances standards(IEC60335, GB4706-1-2001, GB4706-1-1998)
lighting standards(IEC60598-1-1999, GB7000-1-2000)
Information standards(GB8898-2001, GB12113, GB4943-2001, IEC60065, IEC60950)
Medical standards ( IEC601-1-1998, GB4706.1-1998, GB4793.1-2007 ) etc.



Model Series:

Model / Spec AC DC
5KV 10KV 20KV 5KV 10KV 20KV
ZX2670A 20mA -- -- -- -- --
ZX2671A -- 20mA -- -- 10mA --
ZX2671B -- 50mA -- -- 20mA --
ZX2671C -- 100mA -- -- 20mA --
ZX2672A 20mA -- -- 10mA -- --
ZX2672B 100mA -- -- -- -- --
ZX2672C 100mA -- -- 20mA -- --
ZX2672D 200mA -- -- 20mA -- --
ZX2674A -- -- 20mA -- -- 10mA

Mode




Technical parameter of ZX2670A,ZX2672A,ZX2672B,ZX2672C,ZX2672D

Items Model ZX2670A ZX2672A ZX2672B ZX2672C ZX2672D
ACW Output voltage range (0.00~5.00)kV
Maximum output power

100VA

(5.000kV/20mA)

500VA

(5.0kV/100mA)

1000VA

(5.0kV/200mA)

Maximum rated current 20mA 100mA 200mA
Current stalls 2mA,20mA 2mA,20mA,100mA 2mA,20mA,200mA
Output waveform Sine wave
Output waveform distortion ≤5%(No-load or pure resistive load)
Test time 0.0s~999s 0.0=continuous test
DCW Output voltage range ———— (0.00~5)kV ———— (0.00~5.00)kV
Maximum output power ———— 50VA(5kV/10mA) ———— 100VA(5.00kV/20mA)
Maximum rated current ———— 10mA ———— 20mA
Current taps ———— 2mA,10mA ———— 2mA,20mA
Ripple factor ———— ≤5% ———— ≤5%
Test time ————

0.0s~999s

0.0=

Continuous test

———— 0.0s~999s 0.0=continuous test
V Range (0.00~5.00KV)
accuracy ±(5%+3 words)
Resolution 10V
Display the value Root mean square value
A measuring range AC 0.100mA~20.0mA 0.100mA~100mA 0.1mA~200mA
DC ———— 0.1mA~10.0mA ———— 0.100mA~20.0mA
Resolution 2mAfile:1uA,20mA file:10uA,100mA(200mA) file:0.1mA
measurement accuracy ±(5%+3 words)
Timer range 0.0s~999s
Minimum resolution 0.1s
Accuracy ±(1% + 50ms)
Interface of PLC Optional
Remote control interface Yes
Exterior dimension 315*285*175mm 440*380*180 430*375*190
Weight 8.76Kg 9.10Kg 13.72Kg 18.2Kg 24.6Kg

  • Technical parameter of ZX2671A,ZX2671B,ZX2671C
Items Model ZX2671A ZX2671B ZX2671C
ACW Output voltage range (0.00 ~10.00)kV
Maximum output power 200VA(10.0kV/20mA) 500VA(10.0kV/50mA) 1000VA(10.0kV/100mA)
Maximum rated current 20mA 50mA 100mA
Current taps 2mA,20mA 2mA,20mA,50mA 2mA,20mA,100mA
Output waveform Sine wave
Output waveform distortion ≤5%(No-load or pure resistive load)
Test time 0.0s~999s 0.0=continuous test
DCW Output voltage range (0.00~10.0)kV
Maximum output power 100VA(10.0KV/10mA) 200VA(10.0KV/20mA)
Maximum rated current 10mA 20mA
Current taps 2mA,10mA 2mA,20mA
Ripple factor ≤5 %
Test time 0.0s~999s 0.0=continuous test
V Range (0.00~10.0KV)
accuracy ±(5%+3 words)
Resolution 10V
Display the value Root mean square value
A measuring range AC 0.100mA~20.0mA 0.100mA~50mA 0.100mA~100mA
DC 0.100mA ~10.0mA 0.100mA ~20.0mA
Resolution 2mA stop:1uA, 20mA stop:10uA,50mA(100mA) stop:0.1mA
measurement accuracy ±(5%+3 words)
Time meter range 0.0s~999s
Minimum resolution 0.1s
Accuracy ±(1% + 50ms)
PLC interface Optional
Remote control interface Yes
Exterior dimension 380*305*195mm 443*390*220mm 440*380*180mm
Weight 14.76Kg 25Kg 18.2Kg

  • Technical parameter of ZX2674A
Items Model ZX2674A
ACW Output voltage range (0.00~20.0)kV
Maximum output power 400VA(20.00kV/20mA )
Maximum rated current 20mA
Current stalls 2mA,20mA
Output waveform Sine wave
Output waveform distortion ≤5%(No-load or pure resistive load)
Test time 0.0s~999s 0.0=continuous test
DCW Output voltage range (0.00~20.0)kV
Maximum output power 200VA(20.0kV/10mA)
Maximum rated current 10mA
Current taps 2mA,10mA
Ripple factor ≤5%
Test time 0.0s~999s 0.0=continuous test
V Range (0.00~20.0kV)
accuracy ±(5%+3 words)
Resolution 10V
Display the value Root mean square value
A measuring range AC 0.100mA~20.0mA
DC 0.100mA~10.0mA
Resolution 2mA file:1uA,20mA file:10uA
measurement accuracy ±(5%+3 words)
Time meter range 0.0s~999s
Minimum resolution 0.1s
Accuracy ±(1%+50ms)
PLC interface Optional
Remote control interface Optional
Exterior dimension 450*515*230mm
Weight 34.9Kg
