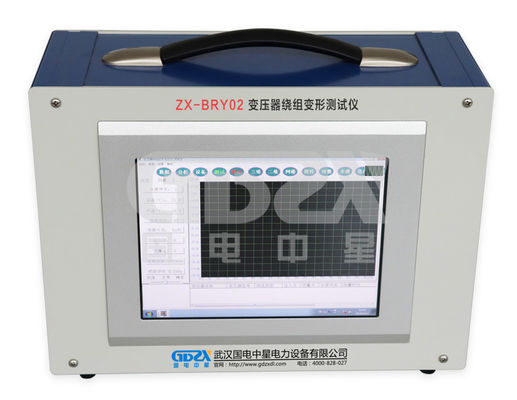

FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer

FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer
FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer

Large Image :  FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001,CE
Model Number: ZX-BRY
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: USD$8,000.00 - $15,000.00 / Sets
Packaging Details: Packed in wooden case
Delivery Time: 8-15 WORK DAYS
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 1200 /Sets per Year
Detailed Product Description
Brand Name: GDZX Product Name:: Transformer Winding Deformation Tester (FRA)
Test Range: -120dB To +20dB Sweep Frequency Accuracy:: 0.01%
Test Accuracy: 0.1dB Weight: 13kg
High Light:

transformer test instruments

,

transformer testing machine

                                        ZX-BRY01 transformer winding deformation tester


PRODUCT DESCRIBTION:

The ZX-BRY01 transformer winding deformation tester is to quantify the response change of the internal winding parameters of the transformer in different frequency domains, and then determine according to the magnitude of the change amount, the amplitude of the frequency response, the change of the regional and frequency response. The degree of change of the internal winding of the transformer, and then it can be judged according to the measurement result whether the transformer has been seriously damaged and whether overhaul is required.


For the running transformer, no matter whether the frequency domain characteristic map is saved in the past, the degree of fault can be judged by comparing the difference of the characteristic map between the coils of the faulty transformer. Of course, if the original winding characteristic map of the transformer is saved, it is easier to provide a more accurate and powerful basis for the operation of the transformer, post-accident analysis and maintenance.



The instrument consists of a notebook computer and a single-chip microcomputer to form a high-precision measurement system. The structure is tight, the operation is simple, and the test analysis function is relatively complete. It can be operated by itself according to the instruction manual or after short-term training.





Product  Main features :

● The instrument is highly intelligent and easy to use. It has various functions such as automatic range adjustment and automatic sampling frequency adjustment.
● The software adopts Windows platform and is compatible with Win98/2000/WinXP/Win7/Win8/Win10 systems.
● The instrument has a variety of frequency linear sweep measurement system measurement functions.





PHOTO SHOW :



FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer 0



Features:



1. In the test process only need to remove the transformer connection bus.
3. Sweeping frequency up to 10MHz, scanning interval can be 0.25kHz, 0.5kHz, 1kHz for multiple analysis
4. High intelligent, auto range adjustment, auto sampling frequency adjustment.
5. Windows platform, compatible with Win98 / 2000 / XP / Win7 / Win8 / Win10 system.
6. Historical curve comparison analysis, max 6 curves observation, auto analysis and diagnosis system
7. Auto save environment parameters and testing results, color printing function
8. Humanized software design, more convenient to use.
9. Auto complete the test after wiring, during the measurement check the historical curves or stop at any time
10. Measurement time less than 60 seconds for every phase, 10 minutes for whole transformer windings.




Two sweep methods:


1.Linear sweep range (10Hz) - (10MHz) 40000 dots , resolution 0.25kHz, 0.5kHz, 1kHz


2.Section sweep range (0.5kHz) - (1MHz), 2000 dots









FRA Power Transformer Testing Equipment Sweep Frequency Response Analyzer 1



Product Parameters:

linear sweep range

(10Hz) - (10MHz) 40000 dots , resolution 0.25kHz, 0.5kHz, 1kHz

Section sweep range

(0.5kHz) - (1MHz), 2000 dots

Test range

-120dB to +20dB

Test accuracy

0.1dB

Sweep frequency accuracy

0.01%

Signal input impedance

1MΩ

Signal output impedance

50Ω

Signal output amplitude

+/-20V

Same phase test reproductivity 99.99%







Our Sevice :





Professional Consulting Services

Detailed Information About Products

Reasonable Price

Welcome Customer Visit










Signing Contracts And Technical Agreements

Ensure Execution Of Contract And Agreement

Active Communication

Complete After-Sales Service




Professional After-Sale Service Team

1 Year Free Warranty, Life-Long Maintenance

Help Troubleshooting Within 24 Hours

Professional R & D Team
