Large LCD Display Electrical Power Calibrator , Multifunction Energy Meter

Name: Large LCD Display Electrical Power Calibrator , Multifunction Energy Meter
Brand: GDZX
SKU: ZX3030E
Price: 10 USD
Availability: InStock
Rating: 5 (172 reviews)

Large Image : Large LCD Display Electrical Power Calibrator , Multifunction Energy Meter

Product Details:

Place of Origin:	CHINA
Brand Name:	GDZX
Certification:	ISO9001
Model Number:	ZX3030E

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$10,000.00 - $15,000.00 / Sets
Packaging Details:	carton
Delivery Time:	8-15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100 Set/Sets per Month

Contact Now

Detailed Product Description

Voltage:	25V、100V、250V、600V	Current:	0.1A、1A、5A、25A
Accuracy:	0.05	Power Supply:	220V±10%
AC DC Ouput::	0-600V, 0-25A	Frequency Output:	40HZ~70HZ
High Light:	energy meter calibration equipment , calibration test bench

MULTIFUNCTION POWER MEASUREMENT STANDARD VOLTAGE SOURCE

Features

1. Using DSP digital signal generating and processing technology makes the measuring output stable and reliable

2. Integrated error 0.05 level (electric energy 0.1 level), high precision good anti-interference

3. Microcomputer management platform, capable of calibrating, transmitting, printing and data management.Specially equip with wireless receiver and emitter to enable remote calibration of AC sampling apparatus.

4. range of voltage current can be preset, and can be shifted automatically

5. large LCD display, tip function, on line help, massive information showing in one screen

6. Can output AC/DC voltage current, equip with standards of power, frequency, phase, power factor, DC voltage current, can display primary value and secondary value at the same time, auto-check the error, save and preview testing results.

7. can test 2~31th order harmonics

8. function of external software calibrating

9. great over-load capacity, can be with 1uFcapacitance (100V)

10. with voltage linkage protection, current limit protection, power amplifier self-closing function

11. going through over-load test, dumping test, misusing test, high temperature aging test make it reliable to use

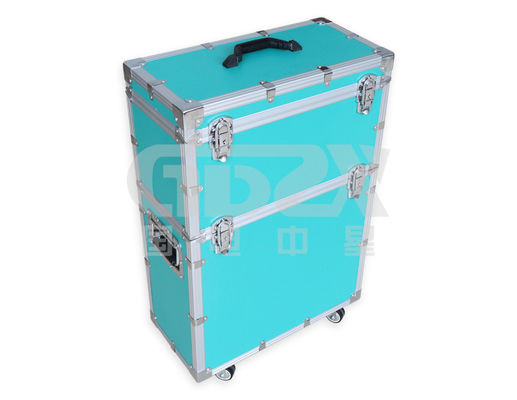

12. with Germany standard carrying box, light and portable

Technical Indicators

Item		Index
Voltage	AC range	Basic range: 25V,100V,250V,600V
	AC range	automatic range: 15V～600V
	DC range	Basic 100mV,25V,100V,250V,600V
	DC range	automatic range: 15V～600V
	Regulation range	0～130% UN
	Regulation fineness	0.002%UN
	Maximum output capacity	≥20VA/Phase
	Fineness	0．05 (100mV: 0.1)
Current	AC range	Basic range: 0.1A,1A,5A,25A
	AC range	automatic range: 0.05A～25A
	DC range	Basic range: 20µA,200µA,2mA,20mA,0.1A,1A,5A,25A
	DC range	automatic range: 20µA～20mA & 0.1A～25A
	Regulation range	0～130%IN(25A: 0～120%)
	Regulation fineness	0．002%IN
	Maximum output capacity	≥25VA/Phase
	Accuracy	0.05
Frequency	Regulation range	40HZ～70HZ
	Regulation fineness	0.01HZ
	Regulation accuracy	±0.01HZ
Phase	Regulation range	0～359.99°
	Regulation fineness	0.01°
	Accuracy	±0.2°( rated output voltage current at full range)
Three phase power accuracy		0.05(reactive power: 0.2)
Three phase voltage symmetry		Three phase four line 120°±0.2° Three phase three line 60°±0.2°
voltage current waveform distortion		< 0.3%
Harmonic component		2~31 orders(when >11, only odd numbers can be set)
voltage current power stability		≤0.01%(1min)
Accuracy		0.01(0～±20mA,0～±5V)
Integrated error		0.05%
Weight		18kg
Dimension		432×428×175
Power supply		220V±10%
