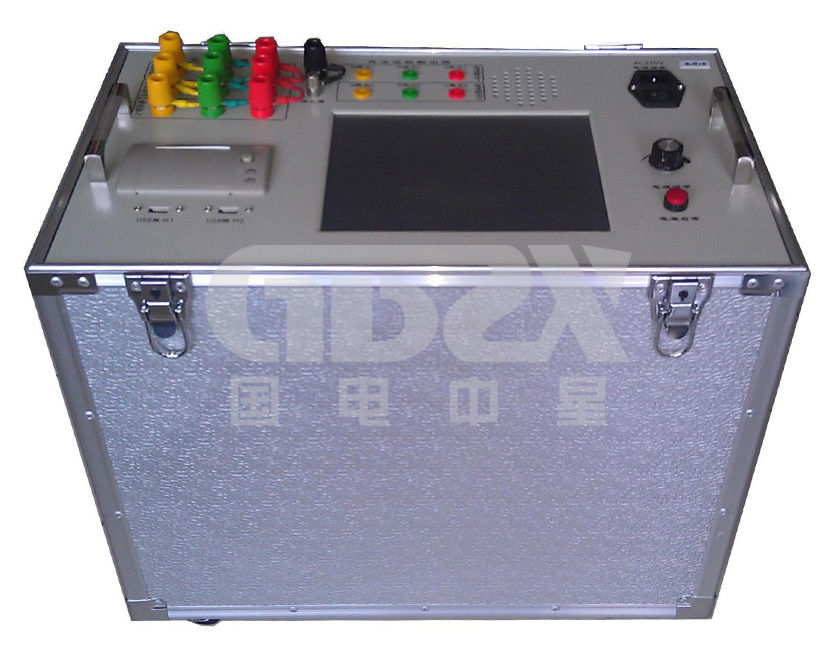

ZXYZ-JZ Ac / Dc Parameter Transformer Testing Equipment On Load Switch OLTC Detection Device

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXYZ-JZ

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD$2,500.00 - $3,000.00 / Sets

Packaging Details: Packed in wooden case or carton

Delivery Time: 8-15 Work days

Payment Terms: L/C,T/T,Western Union,MoneyGram,

Supply Ability: 1200 Cases per Year

Get Best Price
Product Details
Highlight:

transformer test instruments

,

transformer testing machine

Model Number:
ZXYZ-JZ
Brand Name:
GDZX
Working Power:
AC220V ± 10%, 50Hz ± 10%
Insulation Resistance:
Power Supply Input Terminal To Case >20MΩ
Dimension:
530*320*600(mm)
Weight:
30kg (exclude Accessories)
Model Number:
ZXYZ-JZ
Brand Name:
GDZX
Working Power:
AC220V ± 10%, 50Hz ± 10%
Insulation Resistance:
Power Supply Input Terminal To Case >20MΩ
Dimension:
530*320*600(mm)
Weight:
30kg (exclude Accessories)
Product Description


PLEASE NOTE :

Dry type Testing Transformer ,Hipot Transformer Control Unit

Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 15 DAYS.
4: SMALL ORDER WELCOME..
5: ONLINE PAYMENT.
6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.
7: AFTER SALES SERVICES 24/7
   Features

1. AC/DC method to test the true transition waveform ( No Filtering processing), suitable for on site test of parameters like transition waveform, transition time, transient resistance and three-phase synchronization.

2. It is easy to judge the on load tap changer when use AC test method. If the total transition waveform is continuous then the working condition is good

3. Can test 10kV~500kV voltage no matter what kind of winding wiring ways.

4. Built in power supply or external connecting power supply. Built in type can output three phase power with simple wire connection, external power supply can make high voltage test, zero sequence test

5. High speed sampling: over 200k/s/channel ( usually DC method speed is 10k/s). Large storage capacity, cache depth up to 8M byte FIFO.

6. With embedded computer and testing software, 10.4” color LCD, touch screen, printer, supporting U disk and USB keyboard and mouse

7. Meet the request of intelligent power grid operation and management system. The on-site operator can connect the sampler with tablet PC and transmit data via internet

8. Ca transmit and export the data to office PC for further analysis or editing off line

    9. Can work as a digital universal meter

   10. Integrated structure, portable, simple wire connection




 Product Parameters:


1. Working condition:

1)environment temperature: -10℃~40℃

2)environment humidity: ≤80%

3)altitude: ≤2000m

2. Power supply

1)Single phase voltage: 220(1±10%)V

2)Frequency: 50Hz±1Hz

3)Waveform: sine wave, distortion≤2%

3. Internal output testing power:

1)AC output frequency: 50Hz±0.2Hz(adjustable)

2)AC output voltage range: Three phase four line 0~500V( voltage adjustable)

3)AC output capacity: rating 1000VA

4)AC power source waveform distortion factor:≤3%

5)AC current voltage phase angle: 120°angle difference≯120°±1°

6)DC output current range 0.5A,1A for option

4,Accuracy

1)Synchronous sampling channels: 6

2)Sampling data accuracy: 16 digits

3)Sampling speed: 200 k/s/channel

4)Sampling panel caching depth: 8 M byte FIFO

5)Voltage range: 0V~500V

6)Current range: 0mA~100mA,0A~10A

7)Voltage current accuracy: 0.2

8)Resistance range: 0.5A: 0-20Ω, 1A: 0-10Ω(can be customized)

9)DC resistance accuracy: ±(5%+0.1Ω)

5,Insulation

1)Insulation resistance: power supply input terminal to case >20MΩ

2)It can withstand 1500V AC voltage (RMS)

Weight: 30kg (exclude accessories), dimension: 530*320*600(mm)
