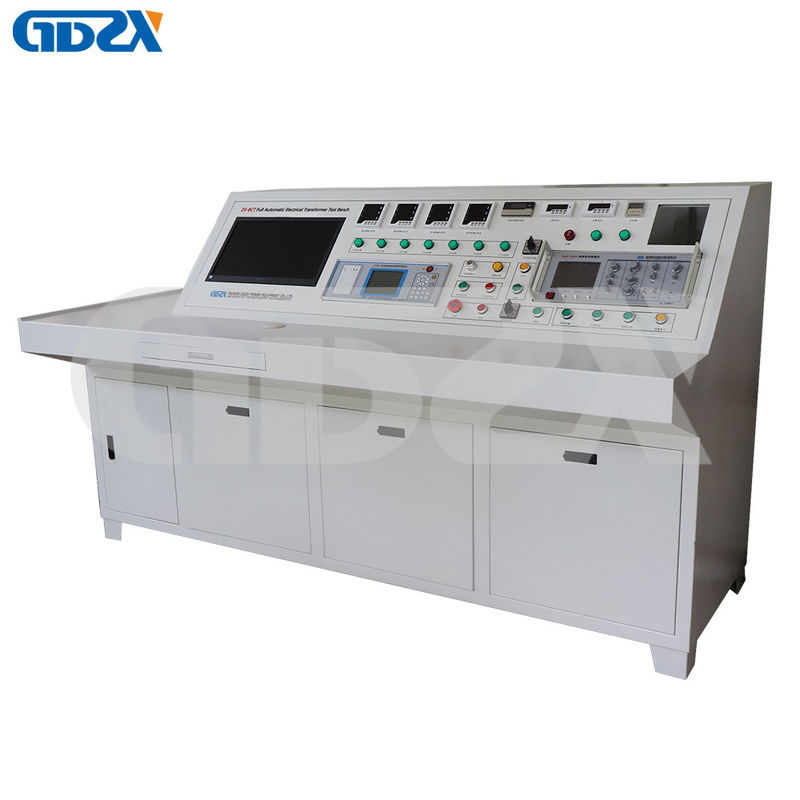

ZX-BCT Full Automatic Transformer Complete Test Bench

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-BCT

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD$16900 - $150000.00 / Sets

Packaging Details: Packed in wooden case or carton

Delivery Time: 25~50 working days

Payment Terms: L/C,T/T

Supply Ability: 1200 /Sets per Year

Get Best Price
Product Details
Highlight:

current transformer test set

,

transformer testing machine

Power Supply:
AC110V-270V Can Be Customized
Operation Environment:
Temperature 0~40℃ 30%~90%RH
Connection Group:
0-11
Brand Name:
GDZX
Power Supply:
AC110V-270V Can Be Customized
Operation Environment:
Temperature 0~40℃ 30%~90%RH
Connection Group:
0-11
Brand Name:
GDZX
Product Description

PLEASE NOTE :

Dry type Testing Transformer ,Hipot Transformer Control Unit

Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 15 DAYS.

4: SMALL ORDER WELCOME..

5: ONLINE PAYMENT.

6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.

7: AFTER SALES SERVICES 24/7




Product introduction:

ZX-BCT transformer integrated test bench is suitable for power transformer manufacturers, industrial and mining enterprises. The transformer integrated test platform can truly judge the power transformer no-load current, no-load loss, impedance voltage and load loss, accurately Measure power transformer DC resistance and ratio, make multiple frequency induced over voltage test and power frequency withstand voltage, give condition diagnosis, ensure safe operation, provide reliable data for monitoring, building or repairing the transformer.


Bastic Testings:

Three phase voltage effective value

Three phase current effective value

Three phase active loss

Three phase reactive power loss

Three phase mean voltage

Three phase voltage mean value

Average current of three phase current

Total power and frequency

Percentage of no-load current

Impedance voltage percentage

power factor

Mutiple frequency induced over voltage test

Power-Frequency Withstand Voltage Test


Features:

  • The testing items can be customized according to user’s projects requirements
  • Automatic, communicate with computer for report export.
  • Real-time data acquisition, auto convert data into standard format.
  • Overload alarm, test reminders, misuse protection functions.
  • High Voltage Switchgear structure, safe and reliable.

Technical Indicators

Item Measuring range Relative error
Voltage 0.1~650V ±(0.2%Reading+0.1%range)
Current 0.1~200A ±(0.2%Reading+0.1%range)
Power U*I ±(0.2%Reading+0.1%range)
Power factor 0.1~0.9999 ±3 bits
Turns ratio 1.000~9999.9 Class 0.2
Connection group 0-11
Power supply AC110V-270V can be customized
Operation environment Temperature 0~40℃ 30%~90%RH

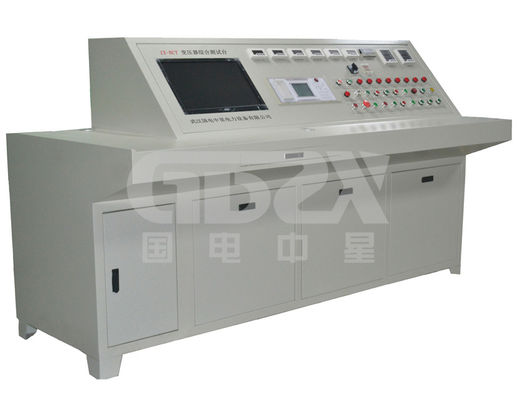

ZX-BCT Full Automatic Transformer Complete Test Bench 1

ZX-BCT Full Automatic Transformer Complete Test Bench 2

ZX-BCT Full Automatic Transformer Complete Test Bench 3

Packaging & Shipping

ZX-BRL Easy Operation ZX-BRL Transformer Capacity Tester CE Certified 6

ZX-BRL Easy Operation ZX-BRL Transformer Capacity Tester CE Certified 7ZX-BRL Easy Operation ZX-BRL Transformer Capacity Tester CE Certified 8ZX-BRL Easy Operation ZX-BRL Transformer Capacity Tester CE Certified 9


Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

ZX-BRL Easy Operation ZX-BRL Transformer Capacity Tester CE Certified 8

ZX-BRL Easy Operation ZX-BRL Transformer Capacity Tester CE Certified 11
