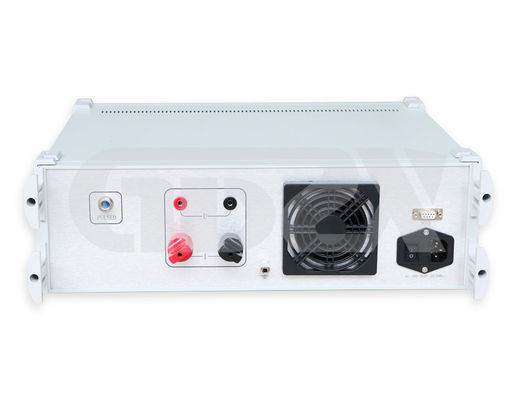

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator
280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator

Large Image :  280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX1030A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: US $5123.00-$12513.00 /SET
Packaging Details: Carton box
Delivery Time: 5-20 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1200Set/year
Detailed Product Description
Output Voltage: 0~280V Rated Voltage Range: 100V~240V (any Value Can Be Set)
Output Current: 0.025A、0.1A、1A、5A、25A、100A Meter Numbers: 1 – 6 Pcs
Instrument Accuracy Level: 0.1 Level Power Supply: AC 220V±10%~50Hz
Output Power: Voltage Circuit ≤100VA, Current Circuit ≤180VA Working Environment: Temperature 20℃±5℃ Relative Humidity≤85%
Size And Weight: 450×156×500 Mm, 20Kg
High Light:

AC Standard Source Electrical Power Calibrator

,

100A Electrical Power Calibrator

,

280V Electrical Test Equipment

Electrical Power Calibrator

0-280v 0-100A Single Phase AC Standard Source Electrical Power Calibrator



I.Product introduction



    ZX1030A Single Phase AC Standard Source is suitable for the inspection of all kinds of single-phase watt-hour meters below 1.0 and below. It is favored by the majority of users due to its luxurious appearance, exquisite craftsmanship, perfect functions and excellent performance.

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 0



II.Product advantages

(1)7-inch color LCD with ram system,
(2)It has perfect protection function, including voltage short circuit alarm, current open circuit and overload alarm.
(3)Built in class 0.1 wide range multifunctional digital standard meter, which can read all electrical parameters of the standard meter through software.

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 1

III.Features

1. Built-in digital multiple function standard meter with Integrated structure of meter and power source, electrical parameters can be read via software

2. adopts DDS technology, CPLD and RAM embedded system, featured with high stability of signal source output, small fineness, low distortion

3. RAM system large color LCD display, massive information can be seen directly through screen

4. use PWM digital power amplifier with above 90% efficiency and 300KHz carrier frequency, to have advantages of low distortion, little heating, high efficiency

5. Perfect protection function: voltage short circuit alarm, open circuit and over load alarm

6. Built-in OCXO for 50KHz high precision impulse output, which can be used to calibrate energy meter clock, also can test day error/hour segment error when matching with meter calibration software (optional)

7. With 485 communication interface, can do various communications test for universal meters (optional)

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 2

IV.Technical Indicators
1. Instrument accuracy level: 0.1 Built in meter accuracy level: 0.1
2. Output voltage: 0~280V

Rated voltage range: 100V~240V (any value can be set);

Regulation amplitude: 0~120% each gear;

Regulation fineness: better than 0.01%;

Built-in 3 terminal independent voltage circuit, each terminal output capacitance ≤15VA;

3.Output current:



0.025A, 0.1A, 1A, 5A, 25A, 100A;

Regulation range: 0~120% continuously adjustable;

Regulation fineness: better than 0.01%;

Minimum output current: 5mA;accuracy: ≤0.5%

4. Output power: voltage circuit ≤100VA, current circuit ≤180VA
5. Stability of output voltage current power : ≤0.05%/120S, PF=1
6. Output voltage current waveform distortion: ≤ 0.5%
7. Frequency range:

45Hz~65Hz

regulation fineness: 0.1Hz

8. Phase range: -180.0° ~180.0°;regulation fineness: 0.1°
9. Indicating instrument accuracy level:

voltmeter,ammeter ±0.2%

Phase meter accuracy ±0.3°

Frequency meter accuracy: ±0.1Hz

10. Meter numbers: 1 – 6 pcs
11. Standard crystal oscillator: 2×10-7 (optional)
12. Power supply: AC 220V±10%~50Hz
13. Maximum power consumption: 300VA
14. Working environment: temperature 20℃±5℃ relative humidity≤85%
15. Size and weight: 450*156*500 mm, 20Kg

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 3280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 4

Test Site

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 5280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 6280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 7



V.Service and Warranty



Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.

Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.





VI.PACKING AND SHIPPING



(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

If you need detailed specification, please feel free to contact us.

If you are interested to this ZX1030A 280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator, please feel free to contact us.
280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 8

VII.Company introduction
   Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 9
280V 100A Single Phase Digital AC Standard Source Electrical Power Meter Calibrator 10
