Product Details
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX3030E
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $10,000.00 - $15,000.00 / Sets
Packaging Details: Carton box
Delivery Time: 3-20 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200Set/year
AC Range: |
Automatic Range: 15V～600V |
DC Range: |
Automatic Range: 15V～600V |
Adjustment Range: |
40HZ～70HZ |
Regulating Fineness: |
0.002%UN |
Maximum Output Capacity: |
≥20VA/Phase |
AC Range: |
Automatic Range: 15V～600V |
DC Range: |
Automatic Range: 15V～600V |
Adjustment Range: |
40HZ～70HZ |
Regulating Fineness: |
0.002%UN |
Maximum Output Capacity: |
≥20VA/Phase |
600V Anti Interference Multifunction Measuring Instrument Calibration equipment
Meter source integration, which can manually or automatically calibrate various indicating instruments, electric energy meters, transmitters and AC samplers.
1.Product introduction

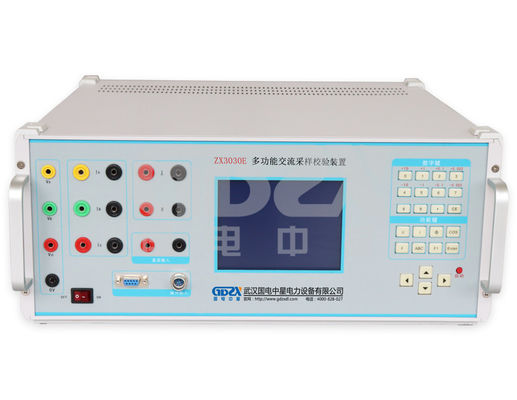

ZX3030E Multi-function Measuring Instrument Calibration Equipment is a high-tech product launched by our company using today's scientific research achievements. The product quotes new design concepts, adopts powerful DSP digital processing system and high-precision A / D and D / A converters, adopts the user's experience, and integrates the achievements of many years of research and development of electrical measuring instruments. The product has powerful functions and integrated meter source. It can manually or automatically calibrate various indicating instruments, electric energy meters, transmitters and AC samplers without additional standard meters.
2.Advantages
● Strong load capacity, with 1uF capacitor directly (100V)
● Multiple protection: power linkage protection, current limiting protection, automatic shutdown of power amplifier output, etc.
●Strict overload test, bump test, misoperation test and high temperature aging test, with excellent reliability.
(1)Using DSP digital signal generating and processing technology makes the measuring output stable and reliable
(2)Integrated error 0.05 level (electric energy 0.1 level), high precision good anti-interference
(3)Microcomputer management platform, capable of calibrating, transmitting, printing and data management.Specially equip with wireless receiver and emitter to enable remote calibration of AC sampling apparatus.
(4)Range of voltage current can be preset, and can be shifted automatically
(5)Large LCD display, tip function, on line help, massive information showing in one screen
(6)Can output AC/DC voltage current, equip with standards of power, frequency, phase, power factor, DC voltage current, can display primary value and secondary value at the same time, auto-check the error, save and preview testing results.
(7)Can test 2~31th order harmonics
(8)Function of external software calibrating
(9)Great over-load capacity, can be with 1uFcapacitance (100V)
(10)With voltage linkage protection, current limit protection, power amplifier self-closing function
(11)Going through over-load test, dumping test, misusing test, high temperature aging test make it reliable to use
(12)With Germany standard carrying box, light and portable .
