| Rated Output Voltage:: | 0 ~ 60kV (AC Valid Value) And Below | Output Frequency: | 50Hz |
|---|---|---|---|
| Resonant Voltage Waveform: | Pure Sine Wave, Waveform Distortion Rate ≤1% | Continuous Working Time: | Continuous Working Time At Full Power 1min |
| Quality Factor: | 10～40 | Test Capacity: | 3000kVA And Below |
| Working Power Supply: | 380V±15%, Power Frequency 50Hz |

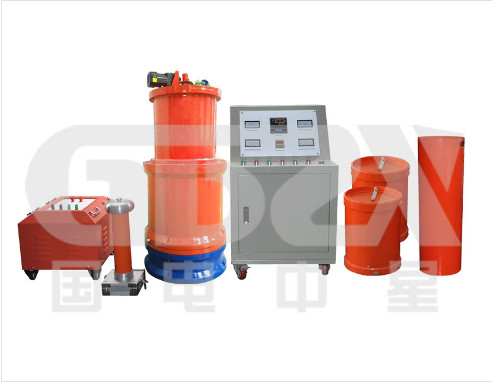

ZXGXZ series inductance generator voltage resonance device requires the use of power frequency voltage, the current national standard for power frequency voltage frequency is defined as 45 Hz ~ 65Hz, but in many test occasions, the generator is required to carry out 50 Hz ±2 Hz AC test, and the generator stator winding to the ground power capacity is relatively large, At present, most of the domestic test units use resonant transformers to test it, but the resonant transformer itself is very heavy, often tons, and the field test is very inconvenient. In view of this situation, our company has designed and developed a frequency-modulated inductance generator AC voltage resonance device.
Features
1. Due to the full compensation of resonant reactive power, the power of the power supply and equipment is only less than 1/10 of the required capacity of the subject (1/ Q>10); The same capacity of small volume, light weight, large output capacity of the device and the required configuration of the power supply capacity is small, cheap, convenient and safe to use.
2, series resonance is actually a current filtering loop, so that the current through the subject is basically fundamental current, the output voltage waveform distortion is small, better than all types of existing AC voltage withstand equipment.
3, the short circuit current after flashover or breakdown of the test product is only less than 1/10 of the test current before short circuit (1/Q), which can effectively prevent the damage to the fault point after breakdown.
4, immediately after the flashover automatic quenching, recovery after the arc state voltage establishment process is long (seconds) is a steady state establishment process, neither the voltage overshoot and no microsecond millisecond level of transient process to restore the danger of
Quota output voltage 0 ~ 60kV (AC RMS) and below
Output frequency 50Hz
The resonant voltage waveform is pure sine wave and the waveform distortion rate is less than 1%
Working system Full power continuous working time 1min
Quality factor 10 ~ 40
Test capacity 3000kVA and below
Working power supply 380V±15%, power frequency 50Hz
逐句对照
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
