Product Details:
Payment & Shipping Terms:
|
| Product Name: | Full-automatic Insulation Oil Heating Oscillator | Display: | Large LCD Screen (240 *128) |
|---|---|---|---|
| Shape Size: | 500*350*385mm | Weight: | 35kg |
| Environmental Humidity: | ≤85% | ||
| High Light: | Automatic Degassing Oscillator,Low Noise Automatic Degassing Oscillator,Heating Oscillation Degassing Oscillator |
||
1. Used for constant temperature heating, oscillation and degassing of all kinds of liquids in the laboratory.
2. Microcomputer program control, simple and convenient operation, accurate temperature control.
3. It has the characteristics of small size, light weight and low noise.
Technical Indicators
1. Display: large LCD display (240*128)
2. Temperature range: room temperature ~100ºC
3. Temperature control accuracy: room temperature ~50ºC±0.2ºC; 50 ºC ~ 100 ºC plus or minus 0.3 ºC
4 oscillation frequency: 275±3 times/min
5. Oscillation amplitude: 35mm
Mode 1:50 ºC constant temperature for 10 minutes, oscillation for 20 minutes, rest for 10 minutes, keep the constant temperature of 50ºC.
Mode 2: Keep the temperature at 50ºC for 10 minutes, shake for 5 minutes, keep the temperature at 75ºC.
6. Self-defined meaning: Oscillation and rest time can be set arbitrarily within 20~99 minutes.
Any set temperature within 20~99ºC.
7. Sample size: 8 100ml syringes; Six 250ml triangular flares.
8. Power supply: AC 220V±22V
9. Frequency: 50Hz±2.5Hz
10. Power: 800VA
11. Ambient temperature: 10ºC~35ºC
12. Ambient humidity: ≤85%
13. Overall size: 500*350*385mm
14. Weight: 35kg

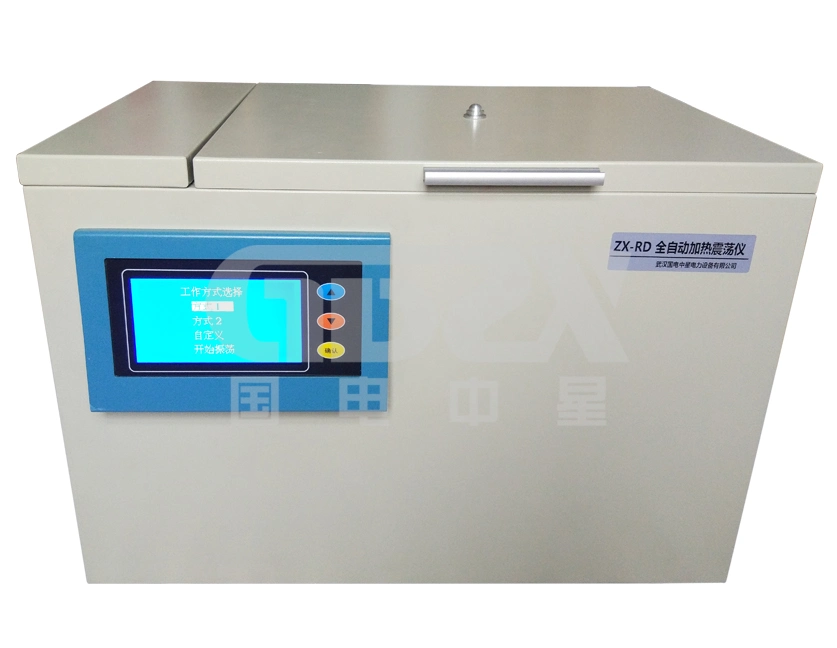

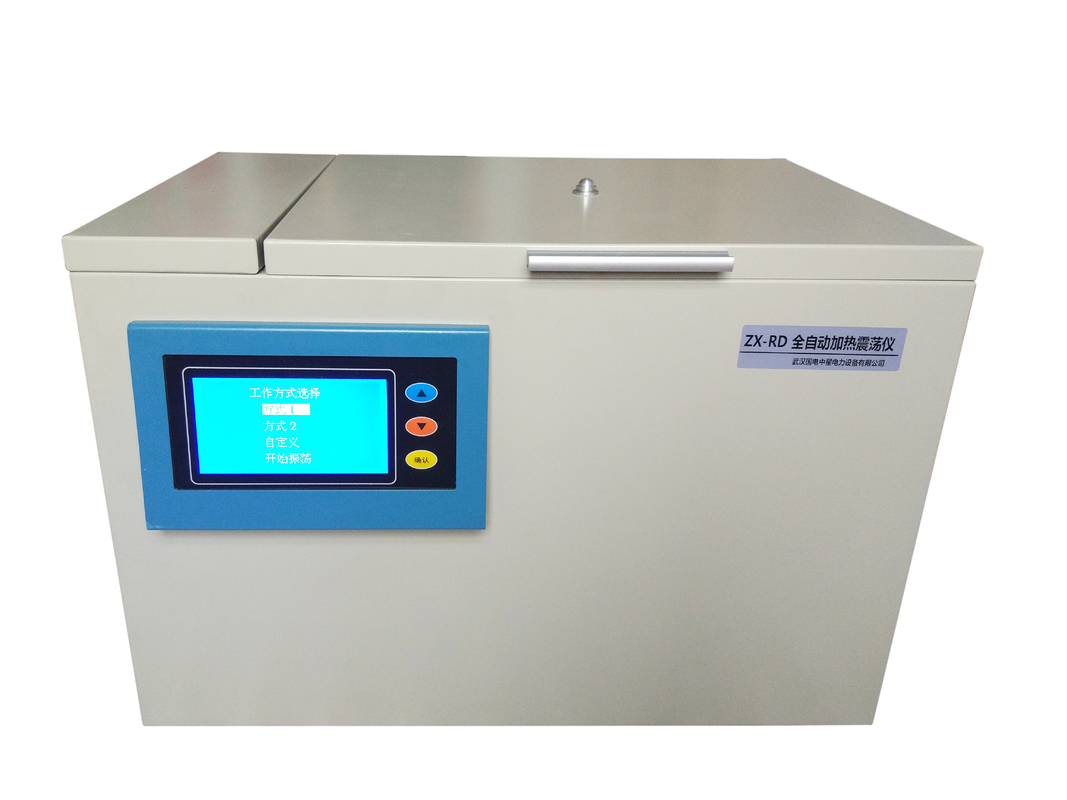

Product pictures
