Payment & Shipping Terms:
|Output Voltage::||DC1600V±3%||Power Supply::||DC12V / AC200V±10% 50Hz±2%|
|Impulse Current:||≥100A（8/20μs）||Interval Time:||≥30s|
DC1600V Lightning Arrester Test Equipment,
Little Weight Lightning Arrester Tester,
Little Weight Lightning Arrester Test Equipment
I. Product introduction

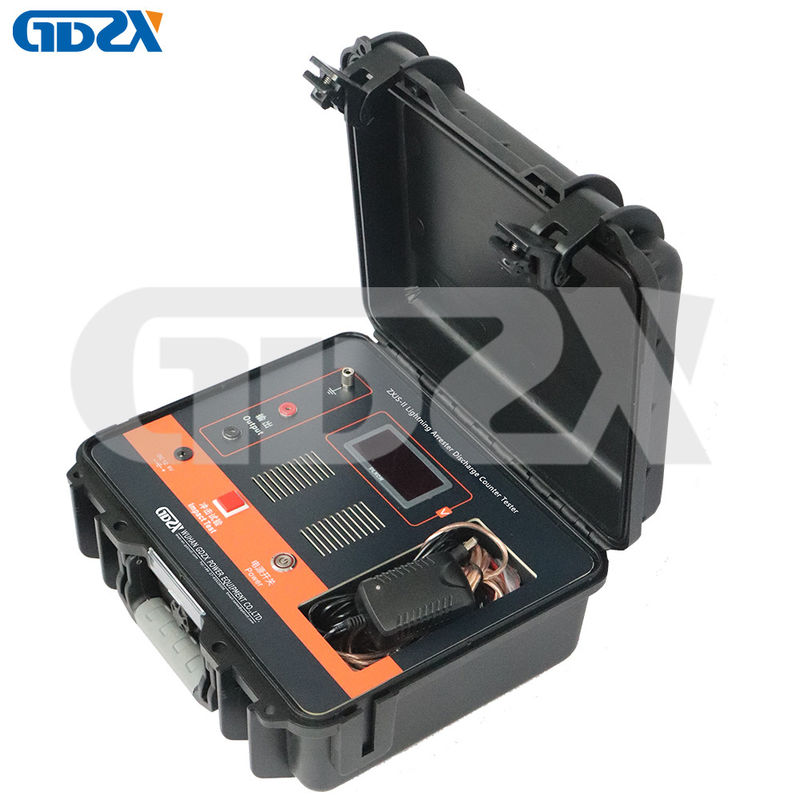

ZXJS-II Lightning Arrester Discharge Counter Tester is used to judge the operation reliability of various surge arrester counters. The reliability of the counter operation is very important to the power system. The counter should correctly record the number of lightning strokes during its normal running, it is a key parameter for inspecting the arresters.
(1) Double valve plate structure measurement.
(2) Current amplitude ＞ 100A, output impulse current waveform 8 / 20 μ s.
(3) Both AC and DC.
1. With rechargeable battery, AC and DC dual purpose.
2. Small size and light weight.
3. The measurement process is safe and fast, and the measurement result is accurate.
1. Output voltage: DC1600V±3%
2. Interval time: ≥30s
3. Power supply: DC12V / AC200V±10% 50Hz±2%
4. Surge current: ≥100A(8/20μs)
5. Volume: 380×250×180mm
6. Net Weight: 3KG
IV. Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
V. Service and Warranty
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
VI.PACKING AND SHIPPING
(1)We will ship products within 10 days after the receipt of confirmation of your payment.
