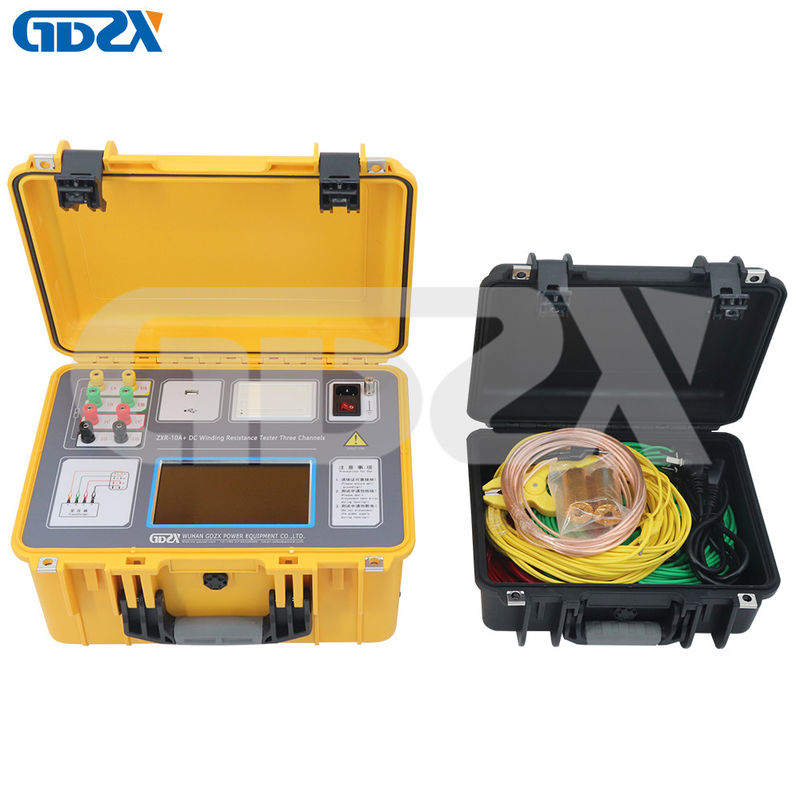

ZXR-10A+ Easy Operated Winding Resistance Meter High Power

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXR-10A+

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: carton

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 1200+set+ per month

Get Best Price
Product Details
Highlight:

current transformer test set

,

transformer testing machine

Measuring Range:
0.2mΩ~20Ω
Current:
1A、5A、10A、1A+1A、5A+5A、10A+10A
Measuring Range:
0.2mΩ~20Ω
Current:
1A、5A、10A、1A+1A、5A+5A、10A+10A
Product Description

Three Channels Transformer Winding Testing Equipment DC Winding Resistance Tester

DC Winding Resistance Tester (Three channels) can measure three circuits simultaneously and automatically make three phase measurement, three line measurement, single phase measurement. It applies to YN,Y,△ type transformers.

Features:

1. New switching power supply technology, small ripple, good stability, high power

2. Provide several kinds of measuring methods: three loop measuring(YN), three phase auto measurement, three line auto measurement(Y,△) and traditional single phase measurement

3. Signal to test circuit, little noise, strong anti-interference performance, test data reliable

4. Perfect protection function

5. Compact structure, small size, light weight.

6. Multiple current options, wide range

7. English interface, menu tip function, easy to operate.

Parameters

Measuring Single ( two phase) Three phase
Current 1A 5A 10A 1A+1A 5A+5A 10A+10A
Measuring range 20mΩ~20Ω 10mΩ~4Ω 0.2mΩ~2Ω 20mΩ~20Ω 10mΩ~4Ω 0.2mΩ~2Ω
Max resolution 0.1μΩ
Accuracy ±(0.2% full range)
Size / Net weight 380x180x320mm / 11KG
Power supply AC 220V±10%,50Hz±1 Hz

Working

environment

Temperature 0℃~40℃ relative humidity: ≤90%RH

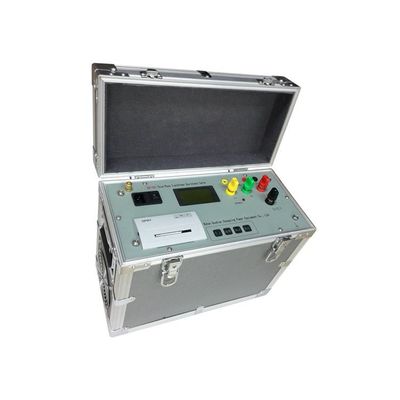

ZXR-10A+ Easy Operated Winding Resistance Meter High Power 0

ZXR-10A+ Easy Operated Winding Resistance Meter High Power 1

ZXR-10A+ Easy Operated Winding Resistance Meter High Power 2

ZXR-10A+ Easy Operated Winding Resistance Meter High Power 3

ZXR-10A+ Easy Operated Winding Resistance Meter High Power 4
