Transformer Capacity And Loss Parameters ( Load And No Load) Tester

Transformer Capacity And Loss Parameters ( Load And No Load) Tester
Transformer Capacity And Loss Parameters ( Load And No Load) Tester Transformer Capacity And Loss Parameters ( Load And No Load) Tester Transformer Capacity And Loss Parameters ( Load And No Load) Tester Transformer Capacity And Loss Parameters ( Load And No Load) Tester Transformer Capacity And Loss Parameters ( Load And No Load) Tester Transformer Capacity And Loss Parameters ( Load And No Load) Tester

Large Image :  Transformer Capacity And Loss Parameters ( Load And No Load) Tester

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-BRL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $1983.00-$3619.00 /SET
Packaging Details: Packed in wooden case or carton
Delivery Time: 8-15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Product Name: Transformer Capacity Loss Parameters Tester Active Section: Voltage:0~10V; Output Current:0~10A
Passive Section: Voltage:0~750V Wide Limit; Current:0~100A Automatically Shifting Measuring Range Inside Rechargeable Power Supply: AC/160V~260V
Operating Temperature: -10℃~ +40℃ Net Weight: 3Kg
Outside Dimension: 32*24*13cm;
High Light:

current transformer test set

,

transformer testing machine

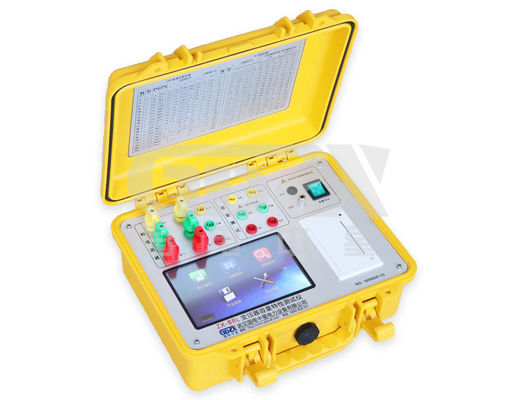

ZX-BRL Transformer Capacity Loss Parameters Tester



Product introduction



This ZX-BRL Transformer Capacity Loss Parameters Tester built in large capacity rechargeable Li-battery, can work without three phase testing source, voltage regulator, large current generator, can continuously test 100 times after full charge.

Transformer Capacity And Loss Parameters ( Load And No Load) Tester 0



Features



1. Can Passive and accurate measure the capacity of Various types of distribution transformer.



2. Can measure Various types of transformer no load current, no load loss, shortcircuit voltage, short circuit (load) loss.



3. All test results can be auto calibrated. It can calibrate following: wave form, temperature, non-rated voltage, non-rated current, so improve the accuracy.



4. Allow external connecting with CT/PT to make extension measurement, can test specimen with any parameters.



5. friendly man-machine interface, brilliance control , adapts to all seasons.



6. Built-in panel-type thermal printer, fast print test results.

Transformer Capacity And Loss Parameters ( Load And No Load) Tester 1


Technical Indicators
1. Measurement range:
1) Active section:

A. voltage:0~10V

B.output Current:0~10A

2) Passive section:

A.voltage:0~750V Wide limit (Can connecte external voltage transformer)

B.Current:0~100A automatically shifting measuring range inside(Can connecte external current transformer)

2. Accuracy:

1) Voltage/current/frequency:±0.2%

2) power:±0.5%(CosΦ>0.1), ±1.0%(0.02<CosΦ<0.1)

3.Workin temperature: -10℃~ +40℃

4.Rechargeable power

supply:

AC/160V~260V
5. Insulation:

1) The insulating resistance of voltage& current input terminal to case≥100MΩ

2) The input terminal of the working power can stand 2kV (RMS) to case, time is 1 minute

6.Outside Dimension: 32*24*13cm
7.Weight: 3Kg



Product pictures

Transformer Capacity And Loss Parameters ( Load And No Load) Tester 2

Transformer Capacity And Loss Parameters ( Load And No Load) Tester 3Transformer Capacity And Loss Parameters ( Load And No Load) Tester 4Transformer Capacity And Loss Parameters ( Load And No Load) Tester 5

Transformer Capacity And Loss Parameters ( Load And No Load) Tester 6









PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.Transformer Capacity And Loss Parameters ( Load And No Load) Tester 7





Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.





Transformer Capacity And Loss Parameters ( Load And No Load) Tester 8

Transformer Capacity And Loss Parameters ( Load And No Load) Tester 9



Transformer Capacity And Loss Parameters ( Load And No Load) Tester 10


Transformer Capacity And Loss Parameters ( Load And No Load) Tester 11Transformer Capacity And Loss Parameters ( Load And No Load) Tester 12Transformer Capacity And Loss Parameters ( Load And No Load) Tester 13




Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

Transformer Capacity And Loss Parameters ( Load And No Load) Tester 14





FAQ:



1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.



2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.



3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.



4.Q: What is your term of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.



5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.



6.Q: Will you provide OEM service?
A: OEM & ODM services available



7.Q: How long is the product warranty?
A: 1 year.
