ZXR-40A Transformer Winding Resistance Tester

Features

1. Machine is controlled by high speed single chip microcomputer, with high automation and easy operation.

2. Using high frequency switching power supply technology, the output current is large, it is suitable for the measurement of DC resistance of large and medium transformers.

3. The protection function is perfect, it can reliably protect the impact of the back EMF on the instrument, and the performance is more reliable.

4. Has the sound discharge alarm, the discharge indication is clear, reduces the misoperation.

5. The response speed is fast, and the load tap switch can be converted directly in the state of measurement. The instrument automatically refreshes the data.

6. The vertical chassis structure is used for site use.

7. Intelligent power management technology, the instrument is always working in the minimum power state, effectively reducing the internal heat of the instrument and saving energy.

8. Point array liquid crystal, English menu, print output.

1. Output current:	2.5A, 5A, 10A, 20A, 40A
2. Range:	50μΩ~500mΩ (40A) ;100μΩ~1Ω (20A) ;500μΩ~2Ω (10A);1mΩ~4Ω (5A) ;2mΩ~8Ω(2.5A)
3. Accuracy:	0.2%
4. Resolution:	0.1μΩ
5. Operating temperature:	0~40℃
6. Environment humidity:	≤90%RH
7. Working power:	AC220V±10%,50Hz±1Hz
8. Net weight:	13kg
9. Volume:	440*240*390mm

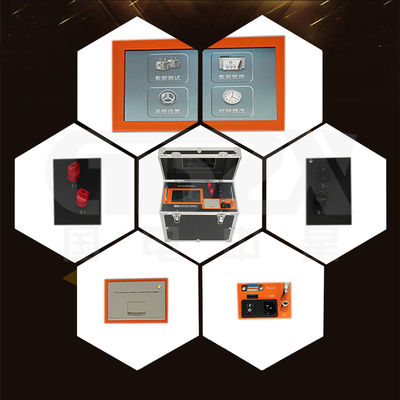

Product pictures











Test cases

Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.





Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
