Payment & Shipping Terms:
|Product Name:||Transformer DC Resistance Tester||Output Current:||2.5A、5A、10A、20A、40A|
|Environment Humidity:||≤90%RH||Working Power:||AC220V±10%，50Hz±1Hz|
40A Transformer DC Resistance Tester,
AC220 Transformer DC Resistance Tester,
iso 50hz transformer testing equipment

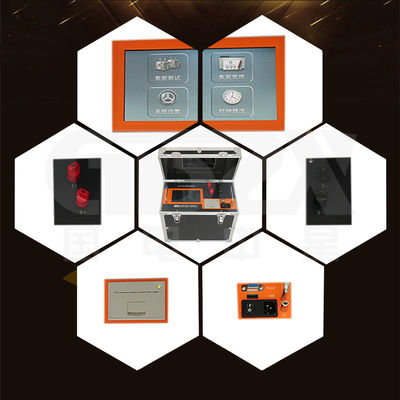

ZXR-40A Transformer Winding Resistance Tester adopts the new power technology. It has the characteristics of small volume, light weight, large output current, good repeatability, strong anti-interference ability, perfect protection function and so on. The whole machine is controlled by high speed single chip microcomputer, and has high automation level. It has the function of automatic discharge and discharge alarm. The instrument has high precision and easy operation, and can be used to measure the direct resistance of the transformer.
1. Machine is controlled by high speed single chip microcomputer, with high automation and easy operation.
2. Using high frequency switching power supply technology, the output current is large, it is suitable for the measurement of DC resistance of large and medium transformers.
3. The protection function is perfect, it can reliably protect the impact of the back EMF on the instrument, and the performance is more reliable.
4. Has the sound discharge alarm, the discharge indication is clear, reduces the misoperation.
5. The response speed is fast, and the load tap switch can be converted directly in the state of measurement. The instrument automatically refreshes the data.
6. The vertical chassis structure is used for site use.
7. Intelligent power management technology, the instrument is always working in the minimum power state, effectively reducing the internal heat of the instrument and saving energy.
8. Point array liquid crystal, English menu, print output.
|1. Output current:||2.5A, 5A, 10A, 20A, 40A|
|2. Range:||50μΩ~500mΩ (40A) ;100μΩ~1Ω (20A) ;500μΩ~2Ω (10A);1mΩ~4Ω (5A) ;2mΩ~8Ω(2.5A)|
|5. Operating temperature:||0~40℃|
|6. Environment humidity:||≤90%RH|
|7. Working power:||AC220V±10%,50Hz±1Hz|
|8. Net weight:||13kg|
1.Q: Are you trading company or manufacturer?
A: We are manufacturer.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the product warranty?
A: 1 year.
