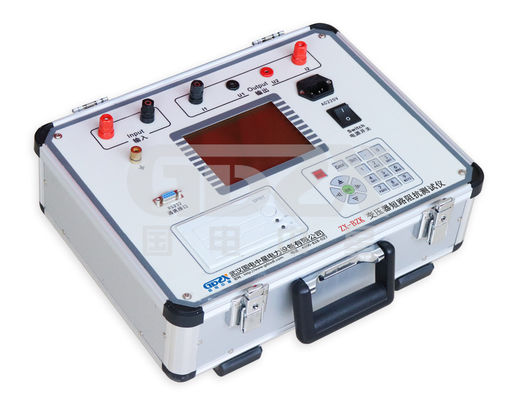

110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester

110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester

Large Image :  110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-BZK
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: US $3785.00-$6596.00/SET
Packaging Details: Packing wooden case or carton
Delivery Time: 7-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal
Supply Ability: 1200sets/year
Detailed Product Description
Product Name: Transformer Short-circuit Impedance Tester Measurement Accuracy: Voltage, Current 0.2%
Power: COSφ>0.1 0.5%; COSφ≤0.1 1.0% Power Supply: AC220V±10%,50Hz±1Hz
Impedance: COSφ>0.1 0.5%; COSφ≤0.1 1.0% Voltage Measurement Range: AC 3V-300V
Internal Power Supply Output Range: Voltage 0-250V, Current 0-10A Current Measuring Range: AC 0.2A-20A
Working Temperature: -10℃-50℃ Humidity: 0-80%
Dimension: 360*220*150mm Weight: About 5kg
High Light:

Transformer Short Circuit Impedance Tester

,

110kV Short Circuit Impedance Tester

,

0.2 Class Transformer Testing Equipment

110kV 0.2 Class Three Phase Transformer Short-circuit Impedance Tester



Product introduction

   Low-voltage short-circuit impedance test is to the most direct way to check the deformation of the winding after transformer suffered from short-circuit current or mechanical collision during transportation and installation, the test is important to help determine whether the transformer can be put into operation, and whether disintegration is necessary for inspection. ZX-BZK transformer short-circuit impedance tester comes with adjustable power output, particularly suitable for 110kV and above main transformer on site measurement.

110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 0

Features



1. With switching power supply, just one time wiring connection can finish measurement for all the windings, no matter it is single phase transformer or three phase transformer

2. Single phase measurement mode. To three phase transformers, each phase short circuit impedance, reactance, inductance can be obtained automatically after three times boosting.

3. Adopts phase locking technology, synchronize sampling AC signal which ensures accuracy

4. current, voltage and power, frequency can be measured at the same time

5. Support external connection with CT/PT to extend measuring range

6. With memory to store data, with printer

7. LCD display with operation menu, data can be read clearly even under direct sunlight
110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 1



Technical Indicators



1.Measurement accuracy Voltage, current 0.2%
2.Power

COSφ>0.1 0.5%; COSφ≤0.1 1.0%



3.Impedance



COSφ>0.1 0.5%; COSφ≤0.1 1.0%

4.Voltage measurement range



AC 3V-300V

5.Internal power supply output range



voltage 0-250V, current 0-10A

6.Current measuring range



 AC 0.2A-20A

7.Working temperature



-10℃-50℃

8.Humidity



0-80%

9.Power supply



AC220V±10%,50Hz±1Hz

10.Dimension



360*220*150mm

11.Weight



about 5kg



Product pictures

110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 2110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 3110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 4110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 5110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 6



Test cases



110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 7110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 8110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 9









Company introduction
      Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 10


Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.

Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 11

PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester 12
