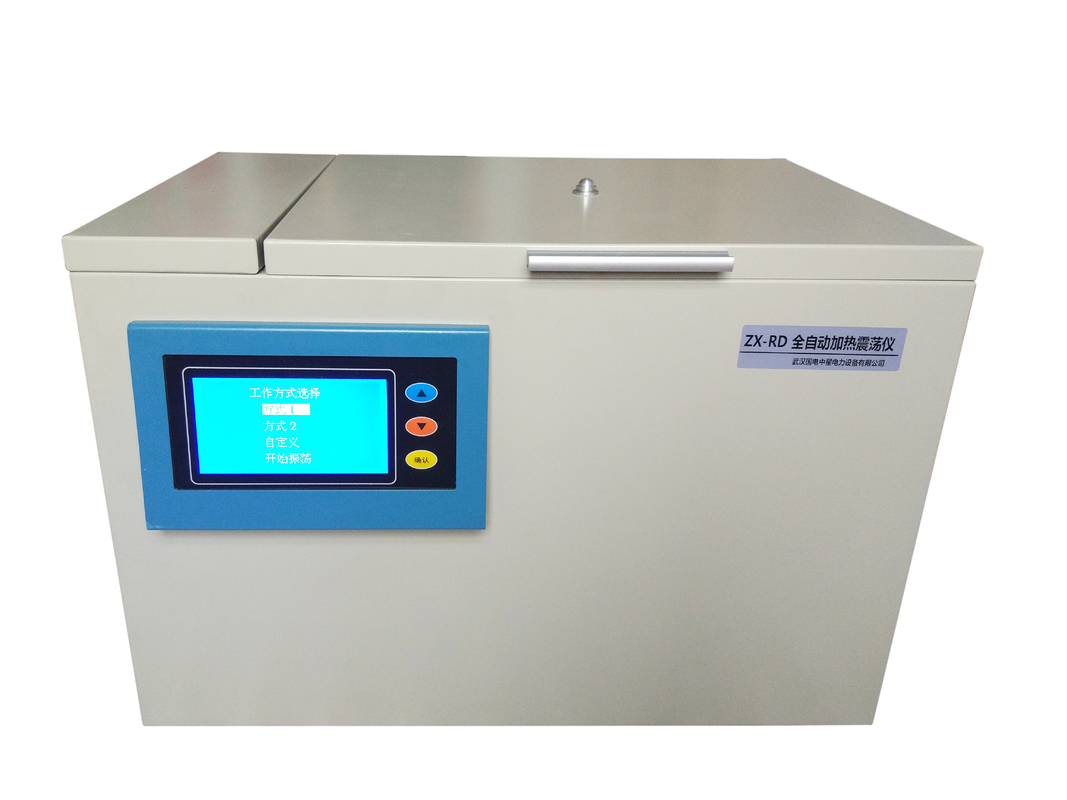

Low Noise Automatic Constant Temperature Timing Heating Oscillation Degassing Oscillator

Name: Low Noise Automatic Constant Temperature Timing Heating Oscillation Degassing Oscillator
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZX-RD
Price: 3,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO

Model Number: ZX-RD

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: usd$2500.0 - 3500.0$

Packaging Details: Carton or wooden box

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                Automatic Degassing Oscillator, Low Noise Automatic Degassing Oscillator, Heating Oscillation Degassing Oscillator


Product Name:	Full-automatic Insulation Oil Heating Oscillator	Display:	Large LCD Screen (240 *128)
Shape Size:	500350385mm	Weight:	35kg
Environmental Humidity:	≤85%

Product Name:	Full-automatic Insulation Oil Heating Oscillator
Display:	Large LCD Screen (240 *128)
Shape Size:	500350385mm
Weight:	35kg
Environmental Humidity:	≤85%

Product Description

Light Weight Low Noise Automatic Constant Temperature Timing Heating Oscillation Degassing Oscillator

Product Description

ZX-RD Automatic Heating Shock Instrumen

ZX - RD automatic heating oscillation device used in laboratory for all kinds of liquid constant temperature heating, oscillation, degassing regularly. The instrument is controlled by microcomputer program, realizing man-machine dialogue, easy operation and accurate temperature control. It has the characteristics of small size, light weight and low noise.

Features

1. Used for constant temperature heating, oscillation and degassing of all kinds of liquids in the laboratory.
2. Microcomputer program control, simple and convenient operation, accurate temperature control.
3. It has the characteristics of small size, light weight and low noise.

Technical Indicators

1. Display: large LCD display (240*128)
2. Temperature range: room temperature ~100ºC
3. Temperature control accuracy: room temperature ~50ºC±0.2ºC; 50 ºC ~ 100 ºC plus or minus 0.3 ºC
4 oscillation frequency: 275±3 times/min
5. Oscillation amplitude: 35mm
Mode 1:50 ºC constant temperature for 10 minutes, oscillation for 20 minutes, rest for 10 minutes, keep the constant temperature of 50ºC.
Mode 2: Keep the temperature at 50ºC for 10 minutes, shake for 5 minutes, keep the temperature at 75ºC.
6. Self-defined meaning: Oscillation and rest time can be set arbitrarily within 20~99 minutes.
Any set temperature within 20~99ºC.
7. Sample size: 8 100ml syringes; Six 250ml triangular flares.
8. Power supply: AC 220V±22V
9. Frequency: 50Hz±2.5Hz
10. Power: 800VA
11. Ambient temperature: 10ºC~35ºC
12. Ambient humidity: ≤85%
13. Overall size: 500*350*385mm
14. Weight: 35kg

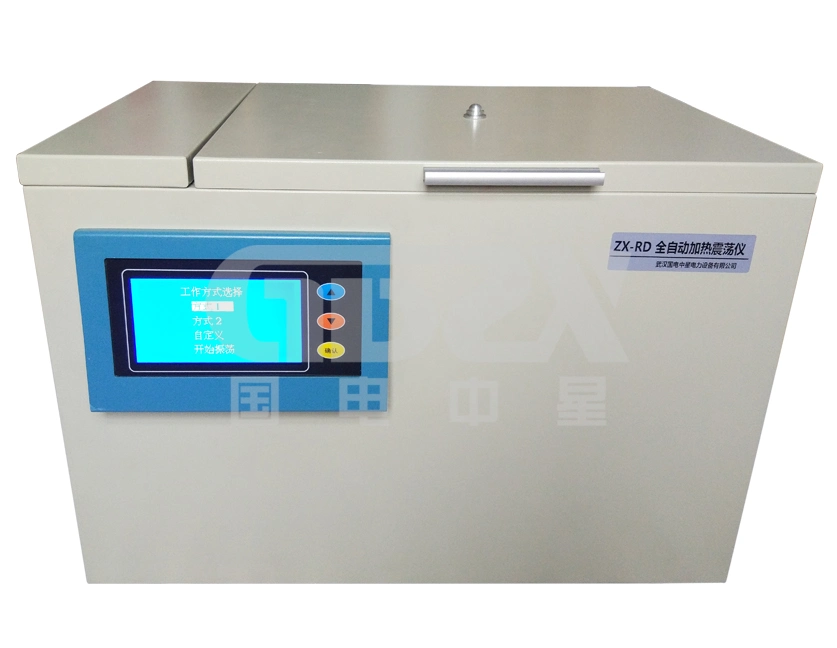

Product pictures

Device display
Small Volume Light Weight Low Noise Automatic Constant Temperature Timing Heating Oscillation Degassing Oscillator

About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Small Volume Light Weight Low Noise Automatic Constant Temperature Timing Heating Oscillation Degassing Oscillator

Shipping and packaging
