Transformer Oil Dissolved Gas Content Analysis
Introduction

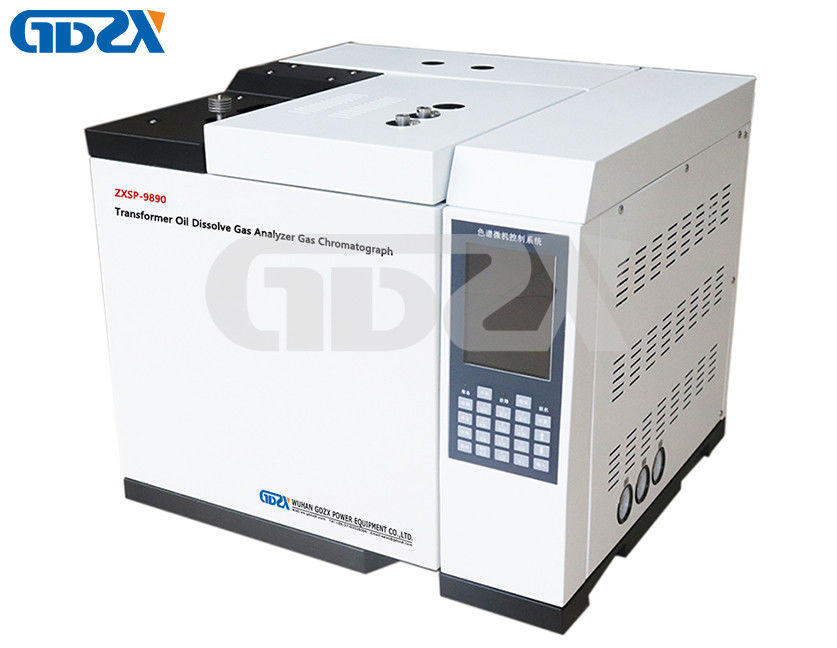

SP-9890 Transformer Oil Chromatograph uses a new type of transformer oil chromatograph with large-screen LCD English display. The instrument absorbs new technologies of similar products at home and abroad, sets various parameters through the keyboard, and has functions such as power-off protection, over-temperature protection, "0 °C" protection, gas cutout protection, electronic automatic ignition, electronic automatic zero adjustment . It has the advantages of stable and reliable performance, simple and reasonable structure, simple and convenient operation, expansion ability and strong, etc. It has a unique column chamber tracking heating function. It is configured as a dual hydrogen flame ionization detector (FID), thermal conductivity cell (TCD) detector, and methane reformer.
SP-9890 Transformer Oil Chromatography Analyzer has been widely used in petroleum, electric power, coal, chemical industry, universities, scientific research and other departments.
Features
1. Large English LCD display with rich and intuitive content, easy to set parameters.
2. A microcomputer automatic ignition device is adopted.
3. A stable and reliable digital zero adjustment is adopted to avoid the unstable baseline caused by the zero adjustment of the potentiometer.
4. Dual intelligent rear door automatic cooling system with frequency conversion function realizes near-room temperature operation in a true sense.
5.The column chamber adopts a unique tracking heating method; it avoids the contamination of the detector caused by the rapid temperature rise of the column chamber.
6. With the function of gas cut protection and English prompt, it can protect the TCD tungsten wire and the chromatographic column from damage.
7. With fault self-diagnosis function, it can display English fault reason and alarm prompt at any time.
8. Microcomputer control, keyboard setting, LCD display, random memory function.
9. The high-performance detector and methane converter can fully detect the gas component content of transformer oil by the Ministry of Electric Power.
10. The system adopts one-time injection and two-time split-column system, with fast analysis speed and good reproducibility.
11. The double hydrogen flame design enables the detection of low-content hydrocarbons and high-content CO and CO2 to avoid mutual interference.
12. Adopt new column packing and double column temperature process, make C2H2 detection time advance, sensitivity increase, and analysis period shorten.
Technical index
| Temperature control | Chromatography column temperature | Range | Room temperature plus 8 ℃ ~ 400 ℃ (setting temperature increment is 1 ℃) |
| Accuracy | Within 200 ℃ is ± 0.1 ℃, ± 200 ° C above 200 °C | ||
| Deviation | Between the indicated temperature and the set temperature is not more than 0.5 ℃ | ||
| Between the actual temperature and the indicated temperature is not more than 2% | |||
| Heating power | 1500W | ||
| The temperature sensing element | Adopts PT100 corundum porcelain platinum resistance | ||
| Temperature of hydrogen flame detection chamber | Accuracy | Within 200 ℃ is ± 0.1 ℃, ± 200 ° C above 200 °C, Operating temperature 400 ℃ | |
| Use horizontal heating | Two 100W internal heating stainless steel heating rods | ||
| The temperature sensing element | Adopts PT100 corundum porcelain platinum resistance | ||
| The temperature of the thermal conductivity detector | Accuracy | Within 200 ℃ is ± 0.1 ℃, ± 200 ° C above 200 ° C, Operating temperature 400 ℃ | |
| Use vertical circular heating | Two 100W internal heating stainless steel heating rods | ||
| The temperature sensing element | Adopts PT100 corundum porcelain platinum resistance | ||
| Converter temperature | Accuracy | Within 200 ℃ is ± 0.1 ℃, ± 200 ° C above 200 ° C, Operating temperature 400 ℃ | |
| Use horizontal heating | Two 100W internal heating stainless steel heating rods | ||
| The temperature sensing element | Adopts PT100 corundum porcelain platinum resistance | ||
| Thermal conductivity detector | Sensitivity | S≥3000mv · ml / mg (benzene, H2) | |
| Noise | ≤0.02mv | ||
| Drift | ≤0.1mv / h | ||
| Built-in pre-amplifier | |||
| Semi-diffused, 100Ω four-arm rhenium tungsten wire | |||
| Power supply mode of constant current source | |||
| Hydrogen flame ionization detector | Detection limit | M≤2 × 10-11g / s (benzene / carbon disulfide) | |
| Noise | ≤5 × 10-13A | ||
| Drift | ≤5 × 10-12A / 30min | ||
| Full collection pole type, corundum nozzle | |||
| Platinum ignition wire | |||
| Instrument size and weight | Host size | 610 × 460 × 470mm | |
| Weight | About 60kg | ||
| Ambient temperature | 0 ~ 30 ℃ | ||
| Relative humidity | Less than 85% | ||
| There is no strong electromagnetic field interference around and no corrosive gas | |||
| The placement table should be stable and free from strong vibration | |||
| Power supply voltage | AC 220V ± 10%, 50Hz ± 0.5Hz | ||
| Power consumption | About 2KW | ||
