Compact ZX2571 Grounding Resistance Tester DC 6V 1.5V LR14Battery Power Supply

Name: Compact ZX2571 Grounding Resistance Tester DC 6V 1.5V LR14Battery Power Supply
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZX2571
Price: 150.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX2571

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100.00-$200.00/ Sets

Packaging Details: export standard wooden box

Delivery Time: 8-15 work days

Payment Terms: L/C,T/T,MoneyGram,Western Union

Supply Ability: 1200/Sets per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                ZX2571 Grounding Resistance Tester, Compact Grounding Resistance Tester


Ground Resistance Range:	0.01Ω～3000Ω Accuracy ±1.5%rdg±5dgt	Ground Resistance Resolution:	0.01Ω
Ground Voltage Range:	0.01～600V AC Accuracy ±1.5%rdg±3dgt	Ground Voltage Resolution:	0.01V
Function:	Ground Resistance Measurement, Ground Voltage Measurement, Low Value Resistance Measurement	Power Supply:	DC 6V 1.5V LR14Battery

Ground Resistance Range:	0.01Ω～3000Ω Accuracy ±1.5%rdg±5dgt
Ground Resistance Resolution:	0.01Ω
Ground Voltage Range:	0.01～600V AC Accuracy ±1.5%rdg±3dgt
Ground Voltage Resolution:	0.01V
Function:	Ground Resistance Measurement, Ground Voltage Measurement, Low Value Resistance Measurement
Power Supply:	DC 6V 1.5V LR14Battery

Product Description

Product Introduction :
The ZX2571 Ground Resistance Tester is a commonly used instrument for inspecting and measuring grounding resistance. It features an LCD gray-white screen with backlight display and microprocessor technology, meeting the requirements for two-wire and three-wire resistance testing. It is suitable for applications in telecommunications, electric power, meteorology, server rooms, oil fields, power distribution lines, transmission line towers, gas stations, factory grounding systems, lightning rods, and more.

The instrument is characterized by high accuracy, speed, simplicity, and reliability. Controlled by a microprocessor, it automatically detects interface connection status, ground network interference voltage, interference frequency, and supports testing of auxiliary grounding electrode resistance. It can store up to 500 sets of data.

Measurement ranges:
- Resistance: 0.01Ω to 3000Ω
- Ground Voltage: 0.01V to 600.0V.

Performance Features :
1. Equipped with an LCD gray-white backlit display and microprocessor technology, it fulfills the requirements for both two-wire and three-wire resistance testing.
2. Controlled by a microprocessor, the instrument automatically detects interface connection status, ground network interference voltage and frequency, and supports auxiliary grounding electrode resistance testing.
3. Capable of storing 500 sets of data. Measurement ranges:
- Resistance: 0.01Ω to 3000Ω
- Ground Voltage: 0.01V to 600.0V
4. Delivers precise, rapid, straightforward, and stable/reliable testing performance.

(Note: Maintains consistency with previous translations in technical terms like "ground resistance tester," "microprocessor," and formatting styles for ranges. Structural parallelism is prioritized for clarity, and key specifications are highlighted to align with technical documentation standards.)

Technical Indicators:

Ground resistance range	0.01Ω～3000Ω Accuracy ±1.5%rdg±5dgt
Ground resistance resolution	0.01Ω
Ground voltage range	0.01～600V AC Accuracy ±1.5%rdg±3dgt
Ground voltage resolution	0.01V
Benchmark conditions	23℃±5℃, below 75%rh
	(Auxiliary grounding resistance 100Ω±5%, ground voltage <10V)
Function	Ground resistance measurement, ground voltage measurement, low value resistance measurement
power supply	DC 6V 1.5V LR14Battery
Backlight	Controllable gray-white screen backlight, suitable for use in dim places
Measurement method	Precision three-wire measurement, simple two-wire measurement
Measurement method	Ground resistance: Rated current-variable method, test current > 20mA (sine wave), 128Hz; Ground voltage: average rectifier
Line resistance verification	Avoid errors caused by not being completely inserted into the instrument interface or poor contact or user replacement of extended test lines, so that the ground resistance measurement is more accurate.
Display mode	4-digit LCD display, off-white screen backlight
Measurement instructions	LED flashing indicator during measurement, LCD countdown display
Measurement time	Ground voltage: about 2 times/second; ground resistance: about 5 seconds/second
Number of measurements	More than 5000 times
Line voltage	Measurement of ground voltage: AC below 600V
Data storage	500 groups, flashing "FULL" symbol indicates that the storage is full
Data review	Data reference function: "MR" symbol display
Working temperature and humidity	-10℃～40℃; below 80%rh
Storage temperature and humidity	-20℃~60℃; below 70%rh
Overload protection	Grounding resistance: AC 280V/3 seconds between EH and ES ports
Insulation resistor	10MΩ or above (500V between the circuit and the housing)
Pressure resistant	AC 3700V/rms (between the circuit and the housing)
Electromagnetic characteristics	IEC61010-4-3, wireless frequency electromagnetic field ≤1V/m
Suitable for safety regulations	IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
Range and accuracy	Measurement function	Range	Accuracy	Resolution
	Ground resistance	0.01Ω～30.00Ω	±1.5%rdg±5dgt	0.01Ω
		30.1Ω～300Ω	(Auxiliary grounding resistance 100Ω±5%, ground voltage <10V)	0.1Ω
		301Ω～3000Ω		1Ω
	Ground voltage	0.01～10.00V AC	±1.5%rdg±3dgt	0.01V
		10.1～100.0V		0.1V
		101～600V		1V

Product picture

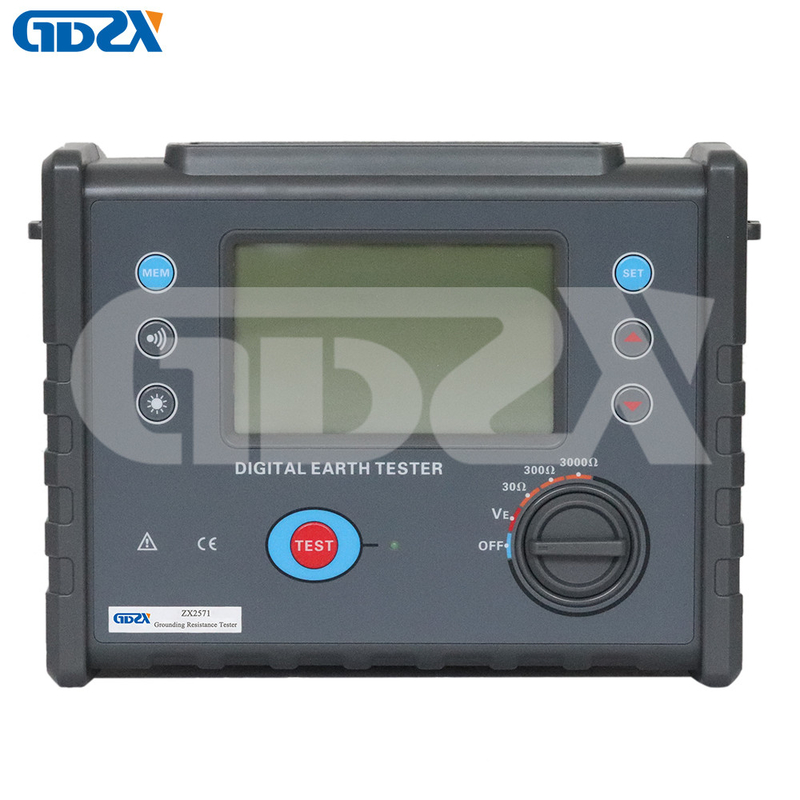

Compact ZX2571 Grounding Resistance Tester DC 6V 1.5V LR14Battery Power Supply 0
