ZX2671 Digital Insulation Resistance Tester Long Standby Time

Name: ZX2671 Digital Insulation Resistance Tester Long Standby Time
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZX2671
Price: 150.00 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX2671

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100.00-$200.00/ Sets

Packaging Details: export standard wooden box

Delivery Time: 8-15 work days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 1200/Sets per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                ZX2671 Digital Insulation Resistance Tester, ZX2671 Insulation Resistance Tester


Power Supply:	DC 1.5V 6 LR14 Dry Battery Standby For More Than 100 Hours	Rated Voltage:	50V;250V;500V;1000V;2500V
Insulation Resistance Range:	0.1MΩ～200GΩ	Voltage Range:	AC/DC:0V～750V
Output Short Circuit Current:	≥2mA	Maximum Capacitive Load:	1uF
Shifting:	Turn The Gear Shift Knob To Select The Corresponding Gear Position	Backlight:	Controllable Off-white Backlight, Suitable For Use In Dim Places

Power Supply:	DC 1.5V 6 LR14 Dry Battery Standby For More Than 100 Hours
Rated Voltage:	50V;250V;500V;1000V;2500V
Insulation Resistance Range:	0.1MΩ～200GΩ
Voltage Range:	AC/DC:0V～750V
Output Short Circuit Current:	≥2mA
Maximum Capacitive Load:	1uF
Shifting:	Turn The Gear Shift Knob To Select The Corresponding Gear Position
Backlight:	Controllable Off-white Backlight, Suitable For Use In Dim Places

Product Description

ZX2671 Digital Insulation Resistance Tester

Product Introduction:
The ZX2671 Digital Insulation Resistance Tester is a high-performance digital instrument featuring an LCD large screen with backlight display, data hold, auto discharge, and auto shutdown functions. Equipped with test timing and voltage monitoring capabilities, the meter prohibits testing when the loop voltage exceeds 36V to ensure the safety of both the tested object and personnel. It simultaneously displays insulation resistance value, test time, and output voltage on the same screen. Additionally, it supports AC voltage and DC voltage measurement functions.

Performance Features:

1.Sleek Design & Superior Performance: Combines an aesthetically pleasing structure with a wide measurement range, high accuracy, and high resolution.

2.User-Centric Reliability: Offers user-friendly operation, portability, accurate and reliable results, stable performance, and strong anti-interference capabilities.

3.Robust Construction: Designed with shock-resistant, dustproof, and moisture-resistant protection for durability in harsh environments.

4.Advanced Functions: Features an LCD large screen with backlight display, data hold, auto discharge, and auto shutdown functions.

5.Smart Monitoring: Integrated test timing and real-time voltage monitoring capabilities.

6.Versatile Measurements: Supports AC voltage and DC voltage measurement functions.

7.Enhanced Safety: Automatically blocks testing when the loop voltage exceeds 36V to safeguard both the tested device and personnel.

Function	Insulation resistance test, AC voltage test, DC voltage test
power supply	DC 1.5V 6 LR14 dry battery standby for more than 100 hours
Rated voltage	50V;250V;500V;1000V;2500V
Insulation resistance range	0.1MΩ～200GΩ
Voltage range	AC/DC:0V～750V
Output short circuit current	≥2mA
Maximum capacitive load	1uF
Shifting	Turn the gear shift knob to select the corresponding gear position
Backlight	Controllable off-white backlight, suitable for use in dim places
Display mode	4-digit super large LCD display, obvious contrast
Measurement instructions	During measurement, LED flashes and buzzer rings
LCD size	108mm×65mm
Instrument size	212mm×175mm×76mm
Test line	High-voltage rod test line: 1 red; test line: 1 black; crocodile clip test line: 1; crocodile clip: 1
Measurement time	The single test time is 1 min. During the test, the user can stop manually or automatically stop after 1 min, and the screen displays the measurement data.
Battery voltage	Battery undervoltage symbol displays, remind you to replace the battery in time when the battery voltage is low
Automatic discharge function	The symbol flashes when discharged. The discharge completion symbol is turned off.
Automatic shutdown function	Automatic shutdown after 15 minutes of booting
Power consumption	Standby: About 40mA (backlight off); Measurement: About 100mA (backlight off)
quality	Instrument: 1230g (including battery)
Working temperature and humidity	-10℃～40℃; below 80%rh
Storage temperature and humidity	-20℃~60℃; below 70%rh
Suitable for safety regulations	IEC61010-1 (CAT Ⅲ 300V, CAT IV 150V, pollution degree 2)

Product picture:

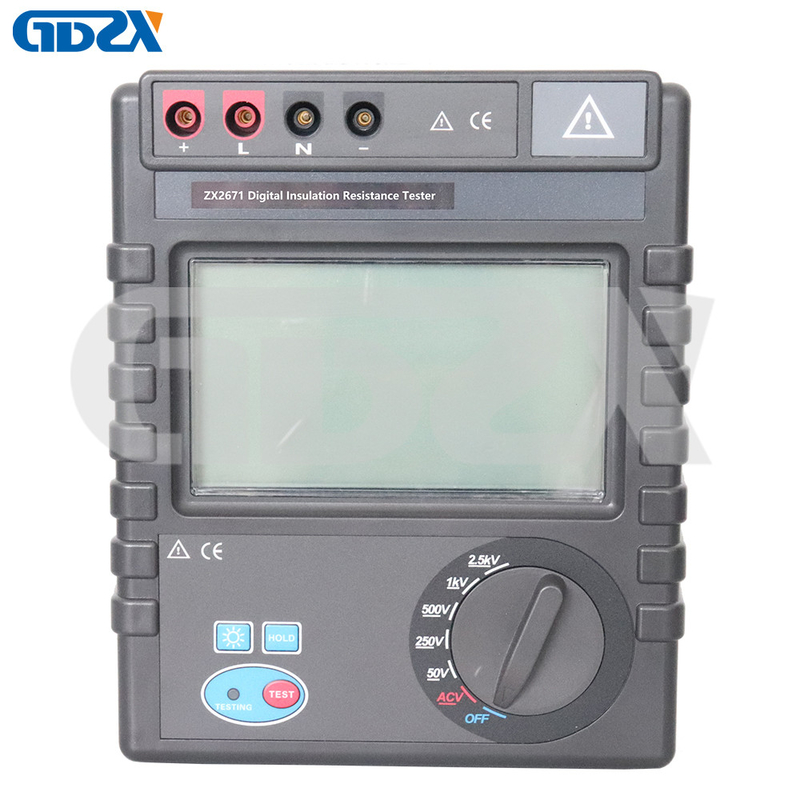

ZX2671 Digital Insulation Resistance Tester Long Standby Time 0
