International Electrical Power Calibrator Multifunctional Meter Field Calibrator Source

International Electrical Power Calibrator Multifunctional Meter Field Calibrator Source
International Electrical Power Calibrator Multifunctional Meter Field Calibrator Source International Electrical Power Calibrator Multifunctional Meter Field Calibrator Source International Electrical Power Calibrator Multifunctional Meter Field Calibrator Source International Electrical Power Calibrator Multifunctional Meter Field Calibrator Source

Large Image :  International Electrical Power Calibrator Multifunctional Meter Field Calibrator Source

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX5050
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3500USD/PCS
Packaging Details: Carrying carton
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/MONTH
Detailed Product Description
Output Type: Three Phase Output Voltage: 1000V
Output Current: 100A AC/DC Current Output Range: 0.1A / 0.25A / 0.5A / 1A / 5A / 10A / 20A / 50A / 100A
Weight (kg): 8 Range: 57.7V / 100 V / 220V / 380V
Accuracy Class: 0.05% Output Power: 1 - 50W
High Light:

energy meter calibration equipment

,

calibration test bench

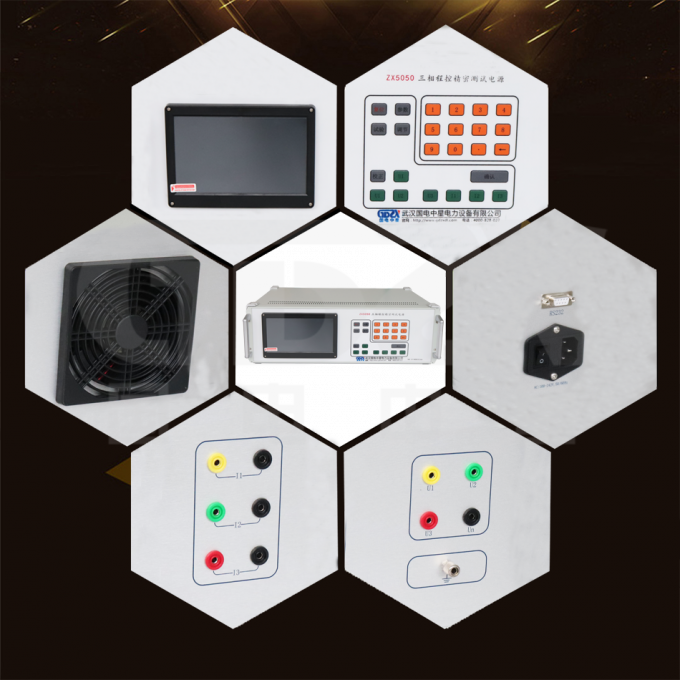

ZX5080 International AC Standard portable three-phase Multifunctional Meter Field Calibrator Source



Features:

1. Design with touch panel and mask button, massive information to see and simple to use

2. built-in standard energy meter for digital closed loop feedback, U, I, Φ, F, W, VAR, VA, PF all for reference

3. Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection

4. Independent control on Three phase voltage current circuits, every phase voltage current parameters can be regulated.

5. Auto shift range, can freely preset rated value

6. Multiple choose of voltage, current, phase regulation test point

7. With R232 communication interface for PC control and software upgrade

8. accuracy class 0.05 or 0.01 for options

Product Parameters



AC Phase voltage output



















Regulation fineness 0.01% RG
Resolution 6 effective digits
Accuracy better than 0.1% RG
Stability better than 0.02%RG/ 2 min
Distortion degree <0.2% (non capacitive load)
Output power rated 25 VA/phase
Full load regulation rate ≤0.01% RG
Range 10V - 460V
Four gears 57.7 V, 100 V, 220 V, 380 V, switch automatically
Long-term stability ± 60 PPM/year

AC current output

















Adjust fineness 0.01% RG
Accuracy better than 0.1% RG
Resolution 6 effective digits
Stability <0.02% RG / 1 min
Distortion degree < 0.5%
Output power rated output 20 VA/Phase
Full load regulation rate 0.01% RG
Range 1mA~24A
Gears 0.2A, 1A, 5A, 20A, switch automatically

Power output





Accuracy better than 0.1% RG
Stability better than 0.02% RG / 1 min
Resolution 6 effective digits ( active power, reactive power, apparent power)

Power factor





Adjusting range -1 ~ 0 ~ + 1
Resolution 0.00001;
Accuracy 0.001

Phase angle





regulation range 0 ~ 359.99°
Resolution 0.001°
Accuracy 0.05°

Frequency





Adjusting range 40 Hz ~ 70 Hz
Resolution 0.001 Hz
Accuracy 0.005 Hz

Harmonic

















Output 2~31th harmonic, each order can be overlapped and output simultaneously but total harmonic content should not exceed below limit
Harmonic order Voltage harmonic maximum content percentage (relative to fundamental wave)
2-8 40%
9-15 30%
16-31 20%
32-51 5%
Content display accuracy 0.1%
Content resolution 4 effective digits
Harmonic phase regulationrange 0 ~ 359.99°(relative to fundamental wave)
