|Measuring Range:||1mΩ～2kΩ||Current Range:||0.20A～2.00A|
transformer test instruments,
current transformer test set
Power Transformer Winding Testing Equipment 2A DC Resistance Tester
This DC resistence teter Is A High-Precision Regeneration Product Used To Replace DC Single/Double Bridge. Equipped With Advanced Switch Power Supply Technology, The Measurement Speed Of The Instrument Is Faster A Hundred Times Than That Of The Bridge. Using Four And Half Bits LCD To Display
The Measurement Results And Three And Half Bits LCD To Display Ambient Temperature Or Test Current Value, It Overcomes The Shortcoming Of Other Similar Products That It Is Difficult To Read Value From The LED Display In The Sun And Possesses Automatic Arc Suppression Function. The Instrument Is Characterized By Fast Test Speed, High Precision, Intuitive Display, Strong Anti-Interference Ability, Small Size, Low Power Consumption, Stable And Reliable Test Data. Built-In Rechargeable Battery Pack (12V) And AC/DC Dual-Use, The Instrument Is Very Convenient For On-Site And Field Test.
1. Fast test: The maximum output charge current of the instrument is up to 1A. When measuring it can effectively compensate current inertial for large inductor and accelerate core saturation, thereby reduced the charging time and increased test speed. Its test speed is faster hundreds of times than the traditional single instrument and double bridge.
2. High accuracy: The application of advanced four-terminal measurement and constant current source technology to the instrument makes the inductive load charging current hold a relatively stable value. Base on that, and the instrument with stable anti-sense capability and strong anti-interference characteristics can ensure the accuracy of measurement. And the use of imported high-quality components not only improves the measurement accuracy, but also makes the instrument have good repeatability.
3. Wide measurement range: resistance measurement range 1μΩ ~ 2KΩ, wide range.

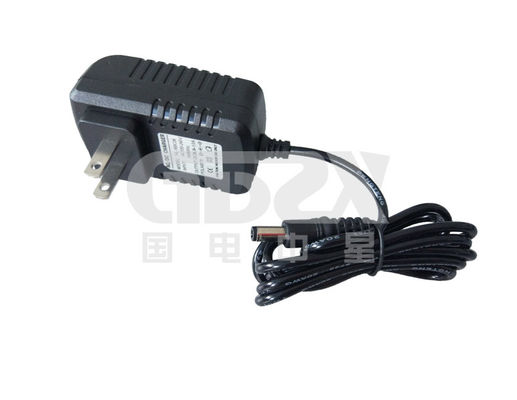

4. AC and DC power supply: Attached rechargeable battery, the instrument can use AC and DC power supply. Portable design, it is easy to carry and use.
1 Temperature:0℃～40℃ Humidity:≤85％RH
2 Measuring range:1mΩ～20mΩ;20～200mΩ;0.2～2Ω;2～20Ω;20～200Ω;200Ω～2kΩ
3 measurement accuracy:0.5 Resolution:1μΩ
4 constant current source:2A(1uΩ～2Ω),0.2A(2Ω～20Ω),0.02A(20Ω～200Ω),0.002A(200Ω～2000Ω)
5 Ammeter display range:0.20A～2.00A
6 Operating Voltage: DC:11V～14V AC:220V Power consumption:≤15W
7 Volume and weight:335×275×175mm/2.8kg
