GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source

GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source
GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source

Large Image :  GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXFJ-3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,000.00 - $8,000.00 / Sets
Packaging Details: carton
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 Sets/ per Month
Detailed Product Description
Measuring Range: SO2:0~100μL/L, H2S:0~100μL/L, CO: 0~1000μL/L Response Time: Maximum 5min
Pressure: Tube Can Stand Pressure Over 1MPa Temperature Range: -40℃~+50 ℃
Humidity Range: ≤95%RH Atmospheric Pressure: 86kPa~106kPa
Communication Interface: RS232 Weight: About 2.5kg
High Light:

sf6 leak detection equipment

,

sf6 gas analyzer equipment

               GIS Gas Decomposition SO2 H2S CO Measuring SF6 Gas Analyzer

Introduction:

SF6 Gas Decomposition Tester can simultaneously detecting decomposed -SO2, H2S, CO then quickly and accurately determine the early failure SF6 circuit breakers, transformers , bushings other electrical equipment inside. It is widely used in electric power, railway, metallurgy and petrochemical industries.

Features

1. Simultaneously measure and respectively display the typical decomposition products
2. High precision, good stability, minimum tested quantity can be low as 0.1µl/L
3. Fast testing speed, can finish within 1 minute
4. Fault diagnosis and suggestion function, data management function, gas flow rate can be regulated and displayed
5. Easy operation, intuitive interface, built-in power source, No need calibration within 1 year
6. Eco-friendly, little gas consumption: 200~300ml for each time measuring
7. Decomposition products: SO2, H2S ( CO, HF optional)

Parameters:

1. Minimum detect quantity: 0.1ppm

2. Stability: temperature variance during 20℃~40℃: maximum zero shift≤±0.1ppm

3. Accuracy: ≤2ppm, error ≤±0.1ppm, >2ppm, error ≤±0.2ppm

4. Measuring range:

SO2:0~100μL/L

H2S:0~100μL/L

CO:0~1000μL/L

5. Allowable measuring error:

SO2≤10μL/L,±1μL/L;SO2>10μL/L,±10%,

H2S≤10μL/L,±1μL/L;H2S>10μL/L,±10%

CO≤50μL/L,±4μL/L;CO>50μL/L,±8%

6. Repeatability

SO2≤10μL/L,±0.5μL/L;SO2>10μL/L,±5%

H2S≤10μL/L,±0.5μL/L;H2S>10μL/L,±5%

CO≤50μL/L,±2μL/L;CO>50μL/L,±4%

7. Resolution: SO2≤0.1μL/L,H2S≤0.1μL/L,CO≤1μL/L

8. Response time: maximum 5min

9. Pressure: Tube can stand pressure over 1MPa

10. Temperature range: -40℃~+50 ℃

11. Humidity range: ≤95%RH

12. Atmospheric pressure: 86kPa~106kPa

13. Self-contained power source: rechargeable battery, continuous work for over 10 hours once full charged

14. Size and weight : 252×310×98mm, Weight: about 2.5kg

15. Communication interface:RS232



Product Overview :

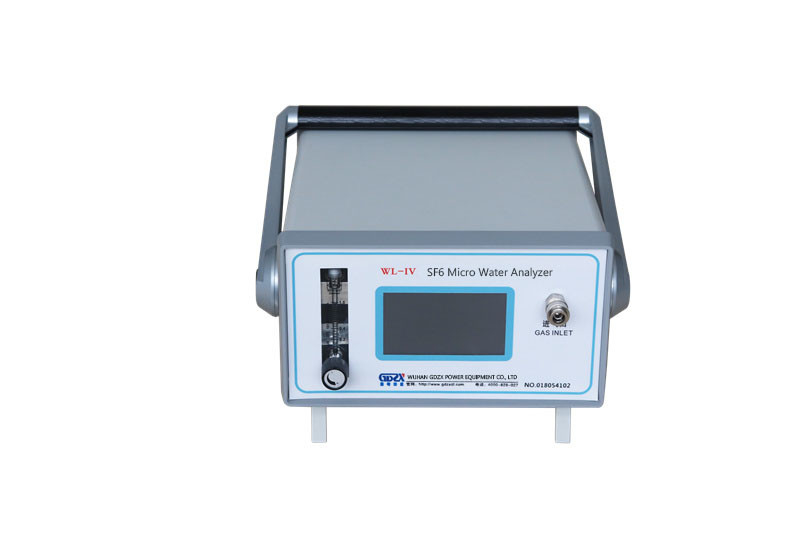

WL-V is researched and designed by using imported high-precision dew point sensor and the latest digital circuitcontrol technology, which is the intelligent precision instrument to measure the moisture content of the SF6 gas.

The instrument uses intelligent self-calibration technology, wide measuring range, fast response, high accuracy, good linearity, dynamic display measurement curve. While the instrument with automatic dryer, can greatly shorten the measuring time.



● Self-locking joint: The self-locking joint imported from Germany is safe and reliable, and there is no air leakage.
● Data storage: Large-capacity design can store up to 250 sets of test data.
● Curve function: Large screen curve shows the dew point measurement process.






Product Features:



1. Self-calibration. Its probe auto calibrate to eliminate systematic errors due to deviation of the zero and slope

2. High measurement speed: 2 minutes

3. Self-locking joints made in Germany, no leakage

4. Large data storage capacity: up to 250 groups of testing results

5. Curve displaying

6. Color LCD displaying dew point, PPM, temperature, humidity, time etc.

7. Micro ink printer

8. Communication: RS232 interface can be connected to PC serial port, convenient for further process data

9. Built in 4Ah rechargeable Li-battery, once full charged, continuous work for 10 hours



Technical Parameters:



Dew point Measuring range -80℃~+20℃(0.04ppm-23700ppm)
Accuracy ±0.5℃(-60℃~+20℃)
±1.0℃(-80℃~-60℃)
Response time(+20℃) 63% 5sec,90% 45sec(-60℃~+20℃)
63% 10sec,90% 240sec(+20℃~-60℃)
Ambient temperature -40℃~+60℃
Ambient humidity 0~100% RH
Display 4.3” color LCD Touch Screen
Date display Year Month Day
Time display Hour Minute Second
Printing function Micro ink printer
Power supply AC 220V
  Built in rechargeable Li-battery
Battery performance Charge for 4 hours, work for above 10 hours
Weight 5kg
Size 250×150×300mm
Operating temperature -40℃~+60℃
Store temperature -40℃~+80℃





GIS Gas Decomposition SF6 Gas Analyzer Fault Diagnosis Built In Power Source 0
