Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test

Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test
Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test

Large Image :  Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test

Product Details:
Place of Origin: Hubei, China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXHQ-A+ Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US $2899.00-4200.00/SET
Packaging Details: Carton or Wooden Case
Delivery Time: 8-10 working days
Payment Terms: T/T, L/C
Supply Ability: 1200 sets/year
Detailed Product Description
Product Name:: CT/PT Characteristics Tester Operational Power Supply:: AC220V±20V, 50~60Hz
Equipment Power Supply Output Waveform:: Sine Wave Single Machine Output Voltage of Excitation Characteristic:: 0~2500V
Single Machine Output Current of:: 0~1000A PT ratio measurement range:: 1~500KV
CT ratio measurement range:: 5~25000A/5A(5000A/1A) Resistance measurement range:: 0.1~300Ω
Dimension And Weight:: 560*390*420mm; 41kg
High Light:

ct pt test set

,

current transformer test set

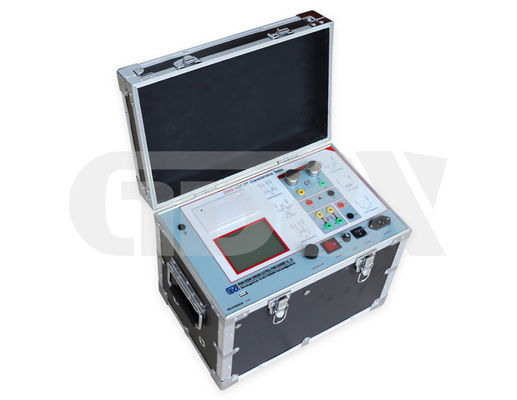

ZXHQ-A+ Series Automatic CT/PT Characteristics Tester


It can be used for volt ampere characteristic test of 500kV class 1A current transformer.



Product introduction



ZXHQ-A+ Series Automatic CT/PT Characteristics Tester is mainly used for field testing of P class CT and PT. The test items mainly include excitation characteristic,transformation ratio, polarity, degauss, 5% and 10% error curves,secondary circuit check,withstand test of power frequency alternating current and secondary load.Adopt LCD, self-equipped minitype printer supporting field printing; supporting to use USB flash disk to dump data,with simple and convenient operation.



Volt ampere characteristic test of ZXHQ-A+ Series Automatic CT/PT Characteristics Tester: the output voltage of a single machine is up to 2500V (3000V optional), which can be used for volt ampere characteristic test of 500kV class 1A current transformer. Transformation ratio test: current output up to 600A (1000A optional). The power output of the equipment is all true voltage and current values, and the waveform is a standard sine wave with a frequency of 50Hz; It can truly and effectively simulate the real state of the transformer and comply with relevant national maintenance regulations.

Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 0

Product advantages

● With large capacity memory, it can store 2000 groups of test data, and the data will never be lost when power is off.

● It has perfect data query, browsing, printing, emptying and other functions.

● Inflection point automatic calculation function, test data screening and printing function.

Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 1


Features

1.Current Transformer (CT):

  • Magnetization Curve
  • Transformation Ratio Test
  • Polarity
  • 5% and 10% error curve
  • Current Injecting
  • Degauss
  • Withstand Test of Power Frequency Alternating Current
  • Automatic Calculation of Excitation Knee Point Value
  • Actual Secondary Load Test
  • Resistance Test

2.Voltage Transformer (PT):

  • Excitation Characteristic Test
  • Transformation Ratio Test
  • Polarity
  • Withstand Test of Power Frequency
  • Degauss
  • Calculation of Knee Point Value
  • Actual Secondary Load Test
  • Resistance Test
Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 2




Technical Indicators

1.Operational Power Supply: AC220V±20V, 50~60Hz
2.Equipment Power Supply Output Waveform: Sine Wave
3.Single Machine Output Voltage of Excitation Characteristic: 0~2500V
4.Excitation Output Current: 0~20A
5.Single Machine Output Current of: 0~1000A
6.Transformation Ratio Test:
7.CT ratio measurement range: 5~25000A/5A(5000A/1A)
8.PT ratio measurement range: 1~500KV
9.Load Range: 5~1000VA
10.Resistance measurement range: 0.1~300Ω
11.Error: ≤0.5%(0.2%*Reading+0.3%*Range)
12.Operating Temperature: -10℃ ~ +40℃
13.Relative Humidity: <90RH%
14.Altitude: ≤1000m
15.Dimension and Weight: 560*390*420mm; 41kg






Product pictures

Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 3Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 4

Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 5

Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 6Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 7


Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 8





PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.Full Automatic 3000V Transformer Comprehensive Tester For Volt-Ampere Characteristic Test 9
