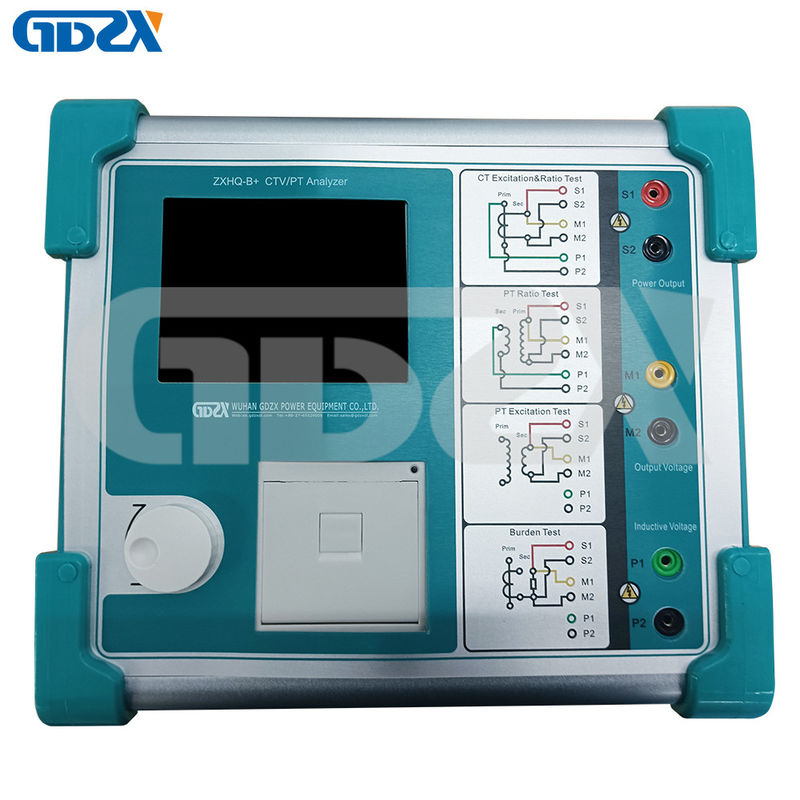

Portable Wide Range CT PT Analyzer Friendly Interface 5.7 Inch LCD Display

Portable Wide Range CT PT Analyzer Friendly Interface  5.7 Inch LCD Display
Portable Wide Range CT PT Analyzer Friendly Interface  5.7 Inch LCD Display Portable Wide Range CT PT Analyzer Friendly Interface  5.7 Inch LCD Display Portable Wide Range CT PT Analyzer Friendly Interface  5.7 Inch LCD Display Portable Wide Range CT PT Analyzer Friendly Interface  5.7 Inch LCD Display Portable Wide Range CT PT Analyzer Friendly Interface  5.7 Inch LCD Display Portable Wide Range CT PT Analyzer Friendly Interface  5.7 Inch LCD Display

Large Image :  Portable Wide Range CT PT Analyzer Friendly Interface 5.7 Inch LCD Display

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXHQ-B+
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5600.70-$6800.7
Packaging Details: carton
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200sets / month
Detailed Product Description
Output: 0~180Vrms,12Arms,36A(PEAK) Ratio: Range 1~40000
Ratio Accuracy: 0.1% Standards: IEC60044-1/6
Memory: 1000 Records Net Weight: 9KG
Brand: GDZX Warranty: 1 Years
High Light:

current transformer test set

,

ct pt testing equipment

   Variable Frequency Method Portable Wide Range IEC standards CT PT Analyzer


Full-functions, mainly for test of various CT and PT: excitation characteristics (volt-ampere characteristics), turns ratio, polarity, secondary winding resistance, secondary burden, ratio error, angle error.

Features:

1. No need standard transformers, booster, load box, voltage control box or primary current leads, simple wire connection and simple operation

2. Test CT/PT A/V characteristics curve and 10% error curve based on advanced variable frequency method, maximum output AC voltage 160V and output current 5Arms (peak value:15A) but CT knee voltage up to 60KV.

3. can measure ratio error and angle error with high precision, allowed ratio error variation:±0.05%, allowed angle error variation:±2min, can test 0.02S level current transformers, turns ratio measuring range: 1~35000

4. Automatically display parameters: knee point voltage / current,10%(5%) error curve, accuracy limit factor (ALF), instrument security factor (FS), the second time constant (Ts), Remanence coefficient (Kr), saturated and unsaturated inductance etc.

5. Conforms to standards: IEC60044-1, GB16847 (IEC60044-6) GB1207 etc, auto choose testing standard in accordance with the transformer types and levels

6. One click can finish CT DC resistance, excitation, ratio, polarity test. One wire connection mode for all CT test except load test

7. Friendly interface

8. 5.7 inch LCD, clear in sunshine

9. Optical rotate mouse to control, simple to operate

10. built-in printer for printing testing reports

11. With USB communication interface

12. Large storage, can save 1000 groups of testing results and will not lose when power off

13. With analysis software for comparing data and evaluation

14. Easy to carry as the weight is less than 9 Kg.

Parameters

Usage CT, PT
Output 0~180Vrms,12Arms,36A(PEAK)
Voltage measurement accuracy ±0.2%
CT Ratio Range 1~40000
accuracy ±0.1%
PT Ratio Range 1~40000
accuracy ±0.1%
Phase error ±5min
Relosution 0.5min
DC resistance Range 0~300Ω
accuracy 0.5%±2mΩ
Burden Range 0~1000VA
accuracy 0.5%±0.05VA
Power supply AC220V±10%,50Hz
Environmental Conditions Operating temperature : -10ºC~50ºC ,Humidity :≤90%
Weight and Dimensions 365 mm×290 mm×153mm,Weight<10kg
