|Product Name:||Double Clamp Digital Phase Meter||Signal Waveform::||Sine Wave|
|Signal Frequency::||50HZ+/-0.2HZ||Voltage Measuring Range:||20V, 200V, 500V|
|AC Current Measuring Range:||200mA, 2A, 10A||Power Supply:||Single 9V Laminated Cell Current Of Power Is <5mA|
|Ambient Temperature And Humidity::||23℃+/-5℃; 45%~75%RH|
power quality meter,
three phase power analyzer

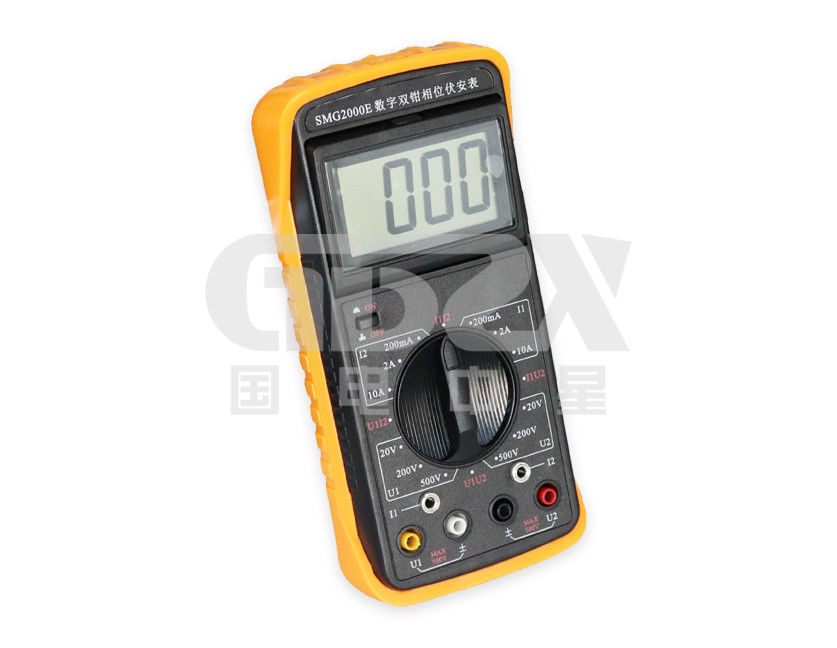

SMG2000E Double Clamp Digital Phase Meter is special designed for testing voltage, current and phase onsite, it is in high-precision, low price, portable hand-held, dual-channel input measuring product. It’s easy to measure the phase between U-U, I-I and U-I, identify the inductive circuit ,capacitive circuit and the phase sequence of three-phase voltage, detect the wiring group of transformer, test the secondary circuit and bus differential protection system, read the phase relationship among the CT groups of a differential protection system, and check if the watthour meter was correctly wired.
1. Ingenious structure, easy to operate, hand held structure
2. no need to disconnect circuit or change measurement range under 10mA-10A, 3V-500v when test phase
3. use high contrast LCD, characters can be 25mm, the screen angle can be 70°to obtain the best visual effects
4. the function and layout of the switch are reasonable, rotating can read the measuring voltage, current and phase.
5. High resolution, with new type patent current clamp, current resolution up to 0.1mA; voltage resolution up to 0.1V.
6. Low power consumption, with the function of testing the voltage of battery.
|1.Base Conditions and Working Conditions:|
|Influence Quantity:||Base Condtion|
|Signal Waveform:||sine wave|
|External Electric Magnetic Field:||To be avoided|
|Position of Measured current carrying conductor in clamp jaw:||Optional position|
|Current/ voltage Amplitude in Phase / Frequency/ Phase Sequence Test:||
Phase U1-U2: 30V~500V;
Phase I1-I2: 10mA~10.00A;
Phase U1-I2 or I1-U2: 10V~500V, 10mA~10.00A
|Limits of Rated Working Error:||Under the conditions described in 1, the limits of the rated operating error will not exceed twice of the limits of intrinsic error.|
|2.Intrinsic Error and Performance Indicators under Base Conditions:|
|Measure Range||Resolution||Limits of intrinsic error|
|Current Input Impedance: 2MΩ for all the measure range.|
|Voltage input impedance of phase testing: >500KΩ.|
|Impedance of input voltage loop when measuring phase of U1-U2: 40KΩ|
|Measure Range||Resolution||Limits of intrinsic error|
|Phases U-U,U-I, I-I|
|Sampling rate:||3 times per second|
|Power supply:||Single 9V laminated cell current of power is less than 5mA|
|4.Size and weight:||34*30*13cm; 3kg|
