AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source

AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source
AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source

Large Image :  AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX1030A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US $5123.00-$12513.00 /SET
Packaging Details: Carton or Wooden Case
Delivery Time: 8-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1200 Sets/year
Detailed Product Description
Product Name:: Single Phase AC Power Standard Source Output Voltage: 0~280V
Rated Voltage Range: 100V~240V (any Value Can Be Set) Output Current: 0.025A、0.1A、1A、5A、25A、100A
Output Power:: Voltage Circuit ≤100VA, Current Circuit ≤180VA; Output Voltage Current Waveform Distortion:: ≤ 0.5%;
Maximum Power Consumption:: 300VA; Working Environment:: Temperature 20℃±5℃, Relative Humidity≤85%;
Net Size And Weight:: 450*156*500mm, 20Kg;
High Light:

calibration test bench

,

electric meter calibration equipment

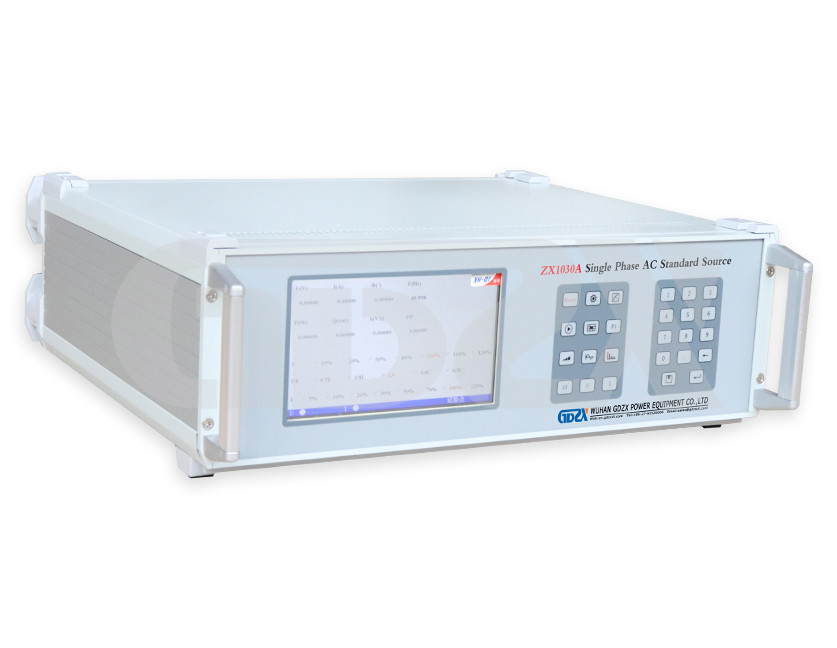

ZX1030A Single Phase AC Power Standard Source





Product introduction



ZX1030A Single Phase AC Standard Source is suitable for the inspection of all kinds of single-phase watt-hour meters below 1.0 and below. It is favored by the majority of users due to its luxurious appearance, exquisite craftsmanship, perfect functions and excellent performance.

AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 0


Features

1. Built-in digital multiple function standard meter with Integrated structure of meter and power source, electrical parameters can be read via software

2. adopts DDS technology, CPLD and RAM embedded system, featured with high stability of signal source output, small fineness, low distortion

3. RAM system large color LCD display, massive information can be seen directly through screen

4. use PWM digital power amplifier with above 90% efficiency and 300KHz carrier frequency, to have advantages of low distortion, little heating, high efficiency

5. Perfect protection function: voltage short circuit alarm, open circuit and over load alarm

6. Built-in OCXO for 50KHz high precision impulse output, which can be used to calibrate energy meter clock, also can test day error/hour segment error when matching with meter calibration software (optional).

7. With 485 communication interface, can do various communications test for universal meters (optional).

AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 1

Technical Indicators
1. Instrument accuracy level: 0.1 Built in meter accuracy level: 0.1
2. Output voltage: 0~280V

Rated voltage range: 100V~240V (any value can be set);

Regulation amplitude: 0~120% each gear;

Regulation fineness: better than 0.01%;

Built-in 3 terminal independent voltage circuit, each terminal output capacitance ≤15VA;

3.Output current:



0.025A, 0.1A, 1A, 5A, 25A, 100A;

Regulation range: 0~120% continuously adjustable;

Regulation fineness: better than 0.01%;

Minimum output current: 5mA;accuracy: ≤0.5%

4. Output power: voltage circuit ≤100VA, current circuit ≤180VA
5. Stability of output voltage current power : ≤0.05%/120S, PF=1
6. Output voltage current waveform distortion: ≤ 0.5%
7. Frequency range:

45Hz~65Hz

regulation fineness: 0.1Hz

8. Phase range: -180.0° ~180.0°;regulation fineness: 0.1°
9. Indicating instrument accuracy level:

voltmeter,ammeter ±0.2%

Phase meter accuracy ±0.3°

Frequency meter accuracy: ±0.1Hz

10. Meter numbers: 1 – 6 pcs
11. Standard crystal oscillator: 2×10-7 (optional)
12. Power supply: AC 220V±10%~50Hz
13. Maximum power consumption: 300VA
14. Working environment: temperature 20℃±5℃ relative humidity≤85%
15. Size and weight: 450*156*500 mm, 20Kg





Product pictures

AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 2AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 3AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 4AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 5





PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 6





Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 7



AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 8



AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 9

AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 10






AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 11AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 12AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 13




Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

AC 240V 100A Program Controlled Electrical Power Calibrator Single Phase Standard Source 14





FAQ:



1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.



2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.



3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.



4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance, balance before shipment.



5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T.



6.Q: Will you provide OEM service?
A: OEM & ODM services available



7.Q: How long is the product warranty?
A: 1 year.
