|Product Name::||Multi-function Measuring Instrument Calibration Equipment||AC Voltage Range::||Basic Range: 25V, 100V, 250V, 600V|
|DC Voltage Range::||Basic 100mV, 25V, 100V, 250V, 600V||AC Current Range::||Basic Range: 0.1A、1A、5A、25A|
|DC Current Range::||Basic Range: 20µA, 200µA, 2mA, 20mA, 0.1A, 1A, 5A, 25A||Harmonic component::||2~31orders(when >11, Only Odd Numbers Can Be Set)|
|Power supply::||220V±10%||Size And Weight::||432*428*175; 18kg|
energy meter calibration equipment,
electric meter calibration equipment

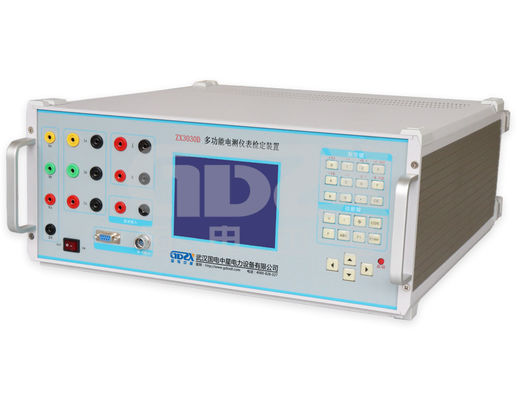

ZX3030D Multi-function Measuring Instrument Calibration Equipment
Without standard meters can test various indicating instrument, energy meters, transmitters.
ZX3030D Multi-function Measuring Instrument Calibration Equipment is a high-tech product launched by our company using today's scientific research achievements. The product quotes new design concepts, adopts powerful DSP digital processing system and high-precision A/D and D/A converters, adopts the user's experience, and integrates the achievements of many years of research and development of electrical measuring instruments. Powerful function, meter source integration, manual or automatic calibration of various indicating instruments, electric energy meters and transmitters without additional standard meters.
● Digital signal synthesis and data acquisition and processing technology based on DSP make the device output stable and reliable.
● The comprehensive error of the device is level 0.05 (power level 0.1), with high precision and excellent indicators.
● Powerful microcomputer management platform shall be configured to check, transmit, print and manage data through microcomputer.
1. Using DPS digital signal generating and processing technology makes the measuring output stable and reliable.
2. Integrated error 0.05 level (electric energy 0.1 level), high precision good ani-interference.
3. Microcomputer management platform, capable of calibrating, transmitting, printing and data mangament.
4. Range of voltage current can be preset, and can be shifted automatically.
5. large LCD display, tip function, on line help, massive information showing in one screen.
6. Can output AC/DC voltage current with standards of power, frequency, phase, power factor, DC voltage current equipped, can display primary value and secondary value at the same time, auto-check the error, save and preview testing results.
7. Can test 2~31 orders harmonics.
8. Function of external software calibrating.
9. Great over-load capacity, can be with 1uFcapacitance (100V).
10. With voltage linkage protection, current limit protection, power amplifier self-closing function.
11. Going through over-load test, dumping test, misusing test, high temperature aging test make it reliable to use.
12. With germany standard carrying box, light and portable.
|1.Voltage||AC range:||Basic range: 25V, 100V, 250V, 600V|
|Automatic range: 15V～600V|
|DC range:||Basic 100mV, 25V, 100V, 250V, 600V|
|Automatic range: 15V～600V|
|Regulation range:||0～130% UN|
|Maximum output capacity:||≥20VA/Phase|
|Fineness:||0.05 (100mV: 0.1)|
|2.Current:||AC range:||Basic range: 0.1A,1A,5A,25A|
|automatic range: 0.05A～25A|
|DC range:||Basic range: 20µA, 200µA, 2mA, 20mA, 0.1A, 1A, 5A, 25A|
|Automatic range: 20µA～20mA & 0.1A～25A|
|Regulation range:||0～130%IN(25A: 0～120%)|
|Maximum output capacity:||≥20VA/Phase|
|Accuracy:||±0.2°( rated output voltage current at full range)|
|4.Three phase power accuracy:||0.05(reactive power: 0.1)|
|5.Three phase voltage symmetry:||Three phase four line 120°±0.2°;
Three phase three line 60°±0.2°;
|6.Voltage current waveform distortion:||< 0.3%|
|7.Harmonic component:||2~31orders(when >11, only odd numbers can be set)|
|8.Voltage current power stability:||≤0.01%(1min)|
|9.Accuracy:||0.02 (0～±20mA, 0～±5V)|
|10.Integrated error:||0.05% (energy meter 0.1%)|
