Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5%

Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5%
Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5%

Large Image :  Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5%

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZX-SZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US $2259.00-4599.00 /SET
Packaging Details: carton or wooden case
Delivery Time: 8-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1200 sets/year
Detailed Product Description
Product Name: Transformer Oil Acid Tester Related Coefficient: 0.999-0.9998
Recovery Rate: 99-102% Minimum Resolution: 0.001mgKOH/g
Repeatability: 2-5%(RSD) Display: 5.4 "large Screen Touch Color LCD Screen
Dimension And Weight: 420*190*340 Mm; 9KG
High Light:

oil breakdown voltage tester

,

insulating oil dielectric strength tester

ZX-SZ Transformer Oil Acid Tester



Product introduction

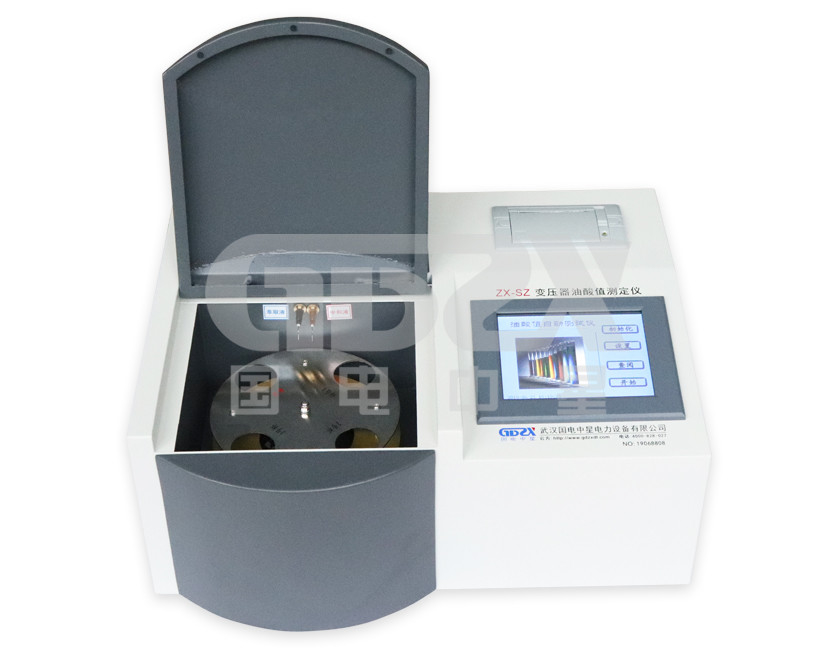

ZX-SZ Transformer Oil Acid Tester is used for determination of acid value in transformer oil and turbine oil. It is featured with computer control, automatic operation and printing.

Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% 0



Features

1. Self-checking function;

2. Unique liquid pump;

3. Large LCD display, man-machine interaction interface. automatic searching cups, auto stirring, titrating, testing, calculating, printing and storing results.

Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% 1

Technical Indicators

1. Linearity range:

0.001~0.900 mgKOH/g,

0.001-0.100mgKOH/g,

error±0.003mgKOH/g,

0.100-0.900mgKOH/g,error 2-5%

2. Related coefficient: 0.999-0.9998
3. Recovery rate: 99-102%
4. Minimum Resolution: 0.001mgKOH/g
5. Repeatability: 2-5%(RSD)
6. Display: 5.4 "large screen touch color LCD screen
7. Dimension and Weight 420*190*340 mm; 9KG



Product pictures

Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% 2

Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% 3Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% 4



Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% 5Unique Liquid Pump Dielectric Oil Tester , Oil Acid Test Kit Repeatability 2 - 5% 6











PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
