IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory

IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory
IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory

Large Image :  IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXHQ-B+
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,899.00 - $8,000.00 / Sets
Packaging Details: carton
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200 Sets per Year
Detailed Product Description
Model Number: ZXHQ-B+ Work Power Supply: AC220V±10%,50Hz/60Hz
Output:: 0~180Vrms, 12Arms, 36A (peak Value) Product Name:: Variable-frequency Voltage Method CT PT Analyzer
Brand: GDZX Test Standards: IEC60044-1, IEC60044-6, C57.13
Voltage Measurement Accuracy: ±0.2% Data Storage: 1000
High Light:

ct pt test set

,

current transformer test set

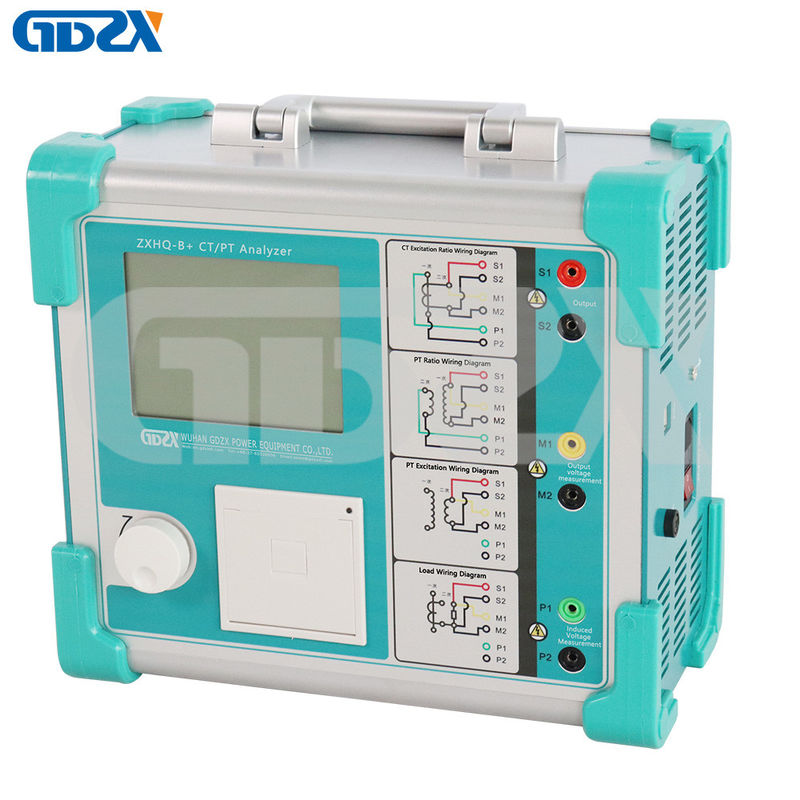

ZXHQ-BIEC Standards Variable Frequency CT PT Analyzer



ZXHQ-B+ CT/PT Analyzer Is New Product Created After Widely Adopt Customers’ Advices And Deep Theoretical Study.



The Series Of Product Equipped With High-Performance DSP And ARM, Advanced Manufacturing Technology Ensured A Stable And Reliable Product Performance. Full-functions, mainly for test of various CT (Protection Type, Measuring type, TP type) and PT electro-magnetic unit: excitation characteristics (volt-ampere characteristics), turns ratio, polarity, secondary winding resistance, secondary burden, ratio error, angle error . Can also through the USB interface for data transfer and upload test data, editing and saving or printing. Simple and convenient operation, improve work efficiency.



Full-Featured, High Degree Of Automation, High Efficiency, Leading In The Market. They Are The Professional Testing Equipments For Instrument Transformer Check In electrical Power Industry.






Features introduction:



1.No need standard transformers, booster, load box, voltage control box or primary current leads, simple wire connection and simple operation
2. Test CT/PT A/V characteristics curve and 10% error curve based on advanced variable frequency method, maximum output AC voltage 160V and output current 5Arms (peak value:15A) but CT knee voltage up to 60KV.
3. can measure ratio error and angle error with high precision, allowed ratio error variation:±0.05%, allowed angle error variation:±2min, can test 0.02S level current transformers, turns ratio measuring range: 1~35000
4. Automatically display parameters: knee point voltage / current,10%(5%) error curve, accuracy limit factor (ALF), instrument security factor (FS), the second time constant (Ts), Remanence coefficient (Kr), saturated and unsaturated inductance etc.
5. Conforms to standards: IEC60044-1, GB16847 (IEC60044-6) GB1207 etc, auto choose testing standard in accordance with the transformer types and levels
6.One click can finish CT DC resistance, excitation, ratio, polarity test. One wire connection mode for all CT test except load test
7. Friendly interface
8.5.7 inch LCD, clear in sunshine
9.Optical rotate mouse to control, simple to operate
10.built-in printer for printing testing reports
11.With USB communication interface
12.Dta storage capacity up to 1000 sets, not lose when power off
13.With analysis software for comparing data and evaluation
14.Easy to carry as the weight is less than 9 Kg.(HOST )






 Product  parameters:



Output 0~180Vrms, 12Arms, 36A (peak value)
CT Ratio Range 1~40000 accuracy ±0.05%
PT Ratio Range 1~40000 accuracy ±0.05%
Phase Range ±2min resolution 0.5min
Secondary winding DC resistance Range 0~300Ω resolution 0.2%±2mΩ
AC burden Range 0~1000VA accuracy 0.2%±0.02VA
Power supply AC220V±10%,50Hz/60Hz
Environmental Conditions Operating temperature:-10ºC~50ºC, Humidity: ≤90%
Weight and Dimensions Dimensions:365*290 *153mm, Net Weight<10kg



 CT PT ANALYZER  Technical Parameters :



MODEL

ZXHQ-B+
Test standards IEC60044-1, IEC60044-6, C57.13
Output 0~180Vrms 12Arms 36A(peak)
knee voltage measurement 60kV
Voltage measurement accuracy ±0.2%
Current measurement /

CT Ratio



Range 1~40000
accuracy max 0.1%



PT ratio



Range 1~40000
accuracy max 0.1%
Phase error ±5min
resolution 0.5min
DC resistance Range 0~300Ω
accuracy 0.5%±2mΩ
Secondary Burden Range 0~1000VA
accuracy 0.5%±0.05VA
Data storage 1000
Temperature measurement /
Power supply AC220V±10%,50Hz
Environmental Conditions Operating temperature : -10οC~50οC, Humidity :≤90%



IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory 0



SOME  TIPS :



Why is the transformer tester divided into ordinary type and Variable Frequency type? How to choose it ?



Common CT PT Analyzer , mainly used for CT volt-ampere characteristic test, PT volt-ampere characteristic test, CT polarity test, PT polarity test, CT transformation ratio polarity test and PT transformation ratio polarity test;



Variable Frequency CT PT Analyzer   is mainly used for multi-functional field test instruments designed for volt-ampere characteristics, transformation ratio, polarity, error curve, angular difference ratio difference, calculation of inflection points and secondary side circuit inspection. It supports detection of CT and PT (protection Class, measurement class, TP class) steady state and instantaneous parameters.


On the whole, the test functions of these two transformer testers are highly overlapped. The advantages of the frequency converter tester over the ordinary transformer tester are speed, accuracy, and ease of operation. The advantages of the frequency converter tester More, but the price is also higher, the power workers need to choose according to their actual needs.





IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory 1





IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory 2

IEC Standards Variable Frequency CT PT Analyzer Portable For Laboratory 3



Dry type Testing Transformer ,Hipot Transformer Control Unit

Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 15 DAYS.

4: SMALL ORDER WELCOME..

5: ONLINE PAYMENT.

6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.

7: AFTER SALES SERVICES 24/7



Contact Details
Wuhan GDZX Power Equipment Co., Ltd

Contact Person: Emma

Tel: 86-17396104357

Fax: 86-27-65526007

Send your inquiry directly to us (0 / 3000)
