WL-V Intelligent High Precision Portable SF6 Dew Point Hygrometer
Product Overview :
WL-V is researched and designed by using imported high-precision dew point sensor and the latest digital circuitcontrol technology, which is the intelligent precision instrument to measure the moisture content of the SF6 gas.
The instrument uses intelligent self-calibration technology, wide measuring range, fast response, high accuracy, good linearity, dynamic display measurement curve. While the instrument with automatic dryer, can greatly shorten the measuring time.
● Self-locking joint: The self-locking joint imported from Germany is safe and reliable, and there is no air leakage.
● Data storage: Large-capacity design can store up to 250 sets of test data.
● Curve function: Large screen curve shows the dew point measurement process.
Product Features:
1. Self-calibration. Its probe auto calibrate to eliminate systematic errors due to deviation of the zero and slope
2. High measurement speed: 2 minutes
3. Self-locking joints made in Germany, no leakage
4. Large data storage capacity: up to 250 groups of testing results
5. Curve displaying

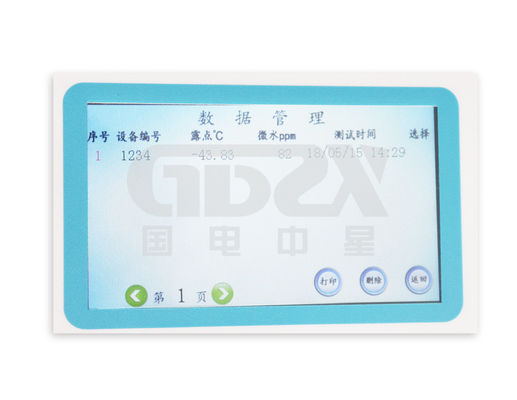

6. Color LCD displaying dew point, PPM, temperature, humidity, time etc.
7. Micro ink printer
8. Communication: RS232 interface can be connected to PC serial port, convenient for further process data
9. Built in 4Ah rechargeable Li-battery, once full charged, continuous work for 10 hours
Technical Parameters:
| Dew point |
Measuring range |
-80℃～+20℃(0.04ppm-23700ppm) |
| Accuracy |
±0.5℃(-60℃～+20℃)
±1.0℃(-80℃～-60℃) |
| Response time(+20℃) |
63% 5sec,90% 45sec(-60℃～+20℃)
63% 10sec,90% 240sec(+20℃～-60℃) |
| Ambient temperature |
-40℃～+60℃ |
| Ambient humidity |
0～100% RH |
| Display |
4.3” color LCD Touch Screen |
| Date display |
Year Month Day |
| Time display |
Hour Minute Second |
| Printing function |
Micro ink printer |
| Power supply |
AC 220V |
| |
Built in rechargeable Li-battery |
| Battery performance |
Charge for 4 hours, work for above 10 hours |
| Weight |
5kg |
| Size |
250×150×300mm |
| Operating temperature |
-40℃～+60℃ |
| Store temperature |
-40℃～+80℃ |
