| Product Name: | Lightning Protection Component Tester | Power Supply: | AC 220V 50Hz/DC12V |
|---|---|---|---|
| Working Temperature: | 0~+40℃ | Humidity: | ≤85%RH |
| Size: | 208mm*190mm*78mm | Weight: | 1.5kg |
| High Light: | lightning arrester tester,leakage current test equipment |
||

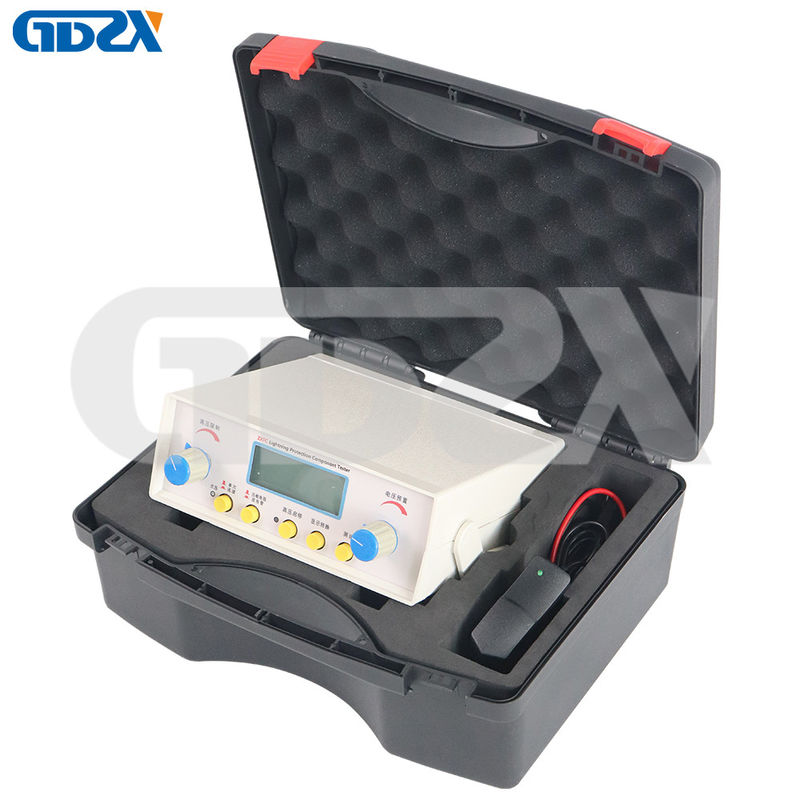

High Precision Intelligent Lightning Protection Component Tester With LCD Display
Introduction
This instrument is used to test the DC parameters of Oxide Zinc voltage dependent resistor
( varistor/ MOV), ceramic 2/3-electrode surge arrester, gas discharge tube and other Surge
Protective Devices. It also can be used as stable power source or constant current power supply.
Features
HV short circuit and over current protection, high voltage preset, range adjustment functions
HV self discharge time less than 0.5 second.
Self check function.
LCD display, high precision, strong reliability.
Measurement range can be preset, sound alert when exceed the acceptable range.
Continuous measurement for a batch of test objects
Simple panel for easy operation
Light in weight, easy to carry
Technical Parameters
| Varistor/Pressure sensitive resistor measurement | |||||||
| Technique parameter | range | error | condition | ||||
| Initial action voltage:U1mA | 0~1999V | ≤±1%±1d | 1mA±5μA | ||||
| Leakage current:0.75U1mA | 0~199.9μA | ≤±1μA±1d | 0.75U1mA≤±1%±1d | ||||
| Discharge tube/Gas Tube Surge Arrester GDT measurement | |||||||
| Technique parameter | Range | error | Condition | ||||
| DC breakdown voltage Vsdc | 75~1999v | ≤±1%±1d | Voltage rise speed:100V/S±10% | ||||
| Insulation resistance | 6MΩ(500V) | ||||||
| Withstand voltage | AC 1.5kV 50HZ 1min | ||||||
| Working temperature humidity | 0~+40℃ ≤85%RH | ||||||
| Storage temperature humidity | -10℃~+50℃ ≤90%RH | ||||||
| Power supply | AC 220V 50Hz/DC12V | ||||||
| Consumption | 8W | ||||||
| Instrument size Net Weight | 208mm×190mm×78mm, | ||||||
