Portable Field Calibration Device Single Phase Program Control Testing Source

Product Details

Place of Origin: China

Brand Name: GDZX

Model Number: ZX-1030

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 4500USD/PCS

Packaging Details: Carrying box

Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000PCS/MONTH

Get Best Price
Product Details
Highlight:

energy meter calibration equipment

,

calibration test bench

Work Environment Temperature:
20℃±10℃
Size:
460*480*200mm
Power Supply:
220V±10%,50Hz±5%
Relative Humidity:
≤85%RH
Weight:
18kg
Work Environment Temperature:
20℃±10℃
Size:
460*480*200mm
Power Supply:
220V±10%,50Hz±5%
Relative Humidity:
≤85%RH
Weight:
18kg
Product Description



Class 0.05 Single Phase Program Control Testing Source

Introduction

This device adopts programmable FPGA, high speed high precision D/A converter, DDS technology, can regulate frequency, amplitude, phase signal source, and amplify signal power. It’s with high precision standards of voltage, current, power, electric energy inside, by analog closed loop feedback and digital PID control it can output voltage, current, frequency, phase, and trace the set parameters automatically over a long period of time. It is combination of standard power frequency indicating meter and energy meter, can be used to calibrate a lot kinds of electrical instruments. And It can connect with PC to realize automatic calibration and total management of testing data.

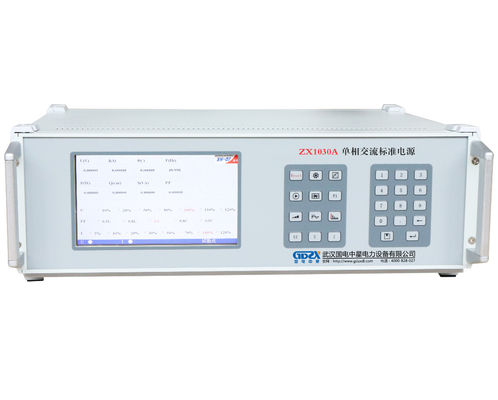

Portable Field Calibration Device Single Phase Program Control Testing Source 0



Features

1.Simplest structure but most reliable

2.High fidelity output signal and shock-proof ability by using high precision high power operational amplifier

3.dual output protection, built in U I F θ energy standard and PID control output, capable of long-term stable running

5.Color LCD display, easy to operate

6.With aluminum alloy carrying box, which look nice, weight less than 12 KG



Technical indicators

Power Frequency output voltage



output range 0V ~ 720V, rated voltage range 25V,50V,100V,200V,400V,600V
Regulation range 0~120% , Regulation fineness 5×10-5
Rated range error class 0.1:≤±0.06%(Rd)±0.04%(FR) , class 0.5: ≤±0.03% (Rd)±0.02%(FR)
output power full range 100%, ≥20VA

Power Frequency output current



output range 0A ~ 24A
Current ratings 0.1A,0.5A,1A,5A,10A,20A
Rated range error class 0.1:≤±0.06%(Rd)±0.04%(FG) , class 0.05:≤±0.03% (Rd)±0.02%(FR)
output power 1~20A ≥20VA
Output Frequency range 45Hz ~ 65Hz, Resolution 0.001Hz error 0.01Hz
Output phase position 0.00 °- 359.99 °, error 0.1°
Output harmonics Harmonic 2~32 amplitude 0~20%, step 0.010·N(N is harmonic order#)
Output wave form distortion AC voltage current ≤0.3%
Power frequency output power range rated voltage and rated current in any combination
Rated range error class 0.1:≤±0.06%(Rd)±0.04%(fr) , class0.05:(≤±0.03% (Rd)±0.02%(fr)
Remark Reactive power accuracy will be one level lower
Energy meter test integrated error 0.1/ 0.05% FS (impulse output≤90kHz,3P ratings=60kHz)
Others Work power supply single phase 220V±10%,50Hz±5%
Work environment temperature 20℃±10℃, relative humidity ≤85%RH
Size and weight 460×480×200mm / 18kg



Portable Field Calibration Device Single Phase Program Control Testing Source 1
