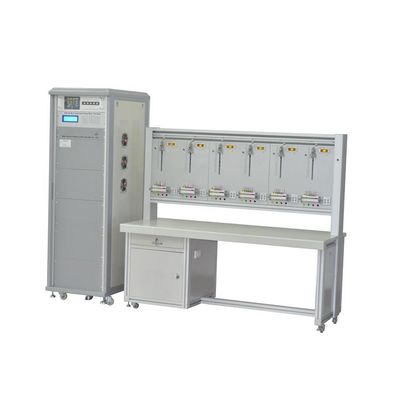

ZXDN Series Three Phase Electricity Multimeter Test Bench Calibration Of Energy Meter

Introduction

Three Phase Multimeter Test System is used to measure various kinds of single/three phase energy meters of 0.2% and below. It has good appearance, complete functions and excellent performance.

Features

1. Split structure or united structure: the meter rack of the testing equipment and the desk frame are all made of special aluminum alloy and the desk faceplate is made of fireproof and heatproof fiber material.

2. High stability, small fineness, small distortion

3. Large color LCD display

4. Multifunctional six digits screen in each meter position displaying basic error, clock, frequency and other parameters

5. Shortcut compression joint aluminum alloy wire connecting box(Intelligent type is optional)

6. Several impulse input switch ports available in each unit, four for impulse, one for 485, and one is multifunctional ) with protection function

7. Automatic current open circuit testing function for each unit

8. Expense control testing module in every unit for local or remote expense control testing, function of open/close testing for inter circuit breaker and output voltage testing for external circuit breaker

9. ZXT10 high precision standard clock, built in 3*10^-8 crystal oscillator, capable of clock error test( GPS time server selectable)

10. Multiple series port communication. each unit equipped with independent RS485 port, serial server selectable

11. Photoelectric sampler can realize three-dimensional adjustment. Both the signals from mechanic type and digital type energy meter can be accepted

12. Using the PWM amplifier, efficiency >90%, low heating

13. Soft startup and shutdown function, full protecting and alarming functions

14. Carrier switching box selectable

15. Management software available

Parameters
