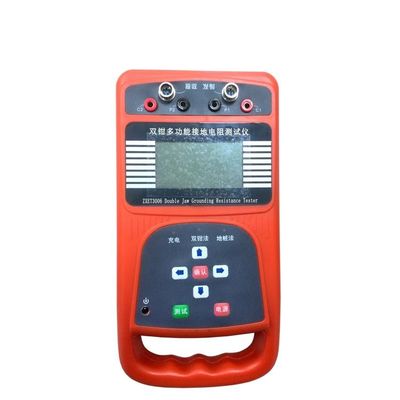

Product Name: | Double Clamp Grounding Resistance Tester | Minimum Resolution: | 0.01Ω |
---|---|---|---|
Temperature: | 0℃~+50℃ | Weight: | 0.8KG |
High Light: | Digital Earth Resistance Tester,ISO9001 Earth Resistance Tester,double clamp ground resistance tester |
Features
1. Double clamp / ground piles measurement method: Can be applied to any place to measure whether multi-point or single point grounding.
2. Strong anti-interference ability: Self-generating high-frequency current can filter 50Hz and 100Hz harmonic interference current, even in the 500KV substation environment, it can accurately measure.
3. Wide measurement range and high resolution: Range from 0.01Ω ~ 200Ω, resolution 0.01Ω, the ground resistance under 0.7Ω also can be accurately measured.
4. Large jaw design: Jaw diameter is 50mm (standard configuration), which meets the case using flat iron / steel wire grounding, special jaw size can be customized.
5. High-capacity data storage It can store 200 sets of measurement datum.
6. Simple operation, single-operator Small size, light weight, explosion-proof carrying case, is easy for field measurements.
Parameters
Measurement range | Double clamp method | 0.01Ω~200Ω |
Ground piles method | 0.01Ω~200Ω | |
Error | Double clamp method | ±3%±2 digits |
Ground piles method | ±2%±2 digits | |
Minimum resolution | 0.01Ω | |
Jaw size | Φ50mm | |
Storage capacity | 200 groups | |
Temperature | 0℃~+50℃ | |
Power supply | 8 AA NiMH rechargeable batteries or regular AA batteries | |
Weight | 0.8KG (battery included) | |
Dimension | 265×130×65mm3 |
