ABS Shell GIS Partial Discharge Test Equipment With LCD Display

Portable GIS Partial Discharge Test System With PRPD Capablity For Fied Use​

Brief description:

The ZXPD-200L partial discharge detector can be widely used in the theater detection of power systems, including the insulation status of high-voltage switchgears, ring network cabinets, voltage / current transformers, transformers (including dry-type transformers), GIS, overhead lines, and cables Detection, to measure the discharge level of electrical equipment through the following indicators:

Partial discharge intensity detection: By measuring the discharge signal within a power frequency period, the intensity of partial discharge is characterized according to the maximum value (dB) in the discharge pulse sequence.

Partial discharge frequency detection: The device measures the discharge signal within a power frequency period, extracts discharge pulses and characterizes the frequency of partial discharges according to the number of discharge pulses.

Features:

☀ Configure different sensors to realize partial discharge detection of almost all electrical equipment;

☀ Provide time domain waveform, PRPD, PRPS and other discharge patterns to realize the analysis of different discharge types;

☀ Humanized man-machine interface facilitates data management of different devices, including traceback of historical data change trends, horizontal and vertical data analysis, and realizes 360 ° comprehensive diagnosis of the device under test;

☀ Built-in ultrasonic sensors and transient ground voltage (hereinafter referred to as TEV) sensors, which can be connected with special sensors such as transformers, GIS, overhead lines and cables;

☀ Adopt non-intrusive detection method, no power failure during the test, maybe no high voltage source is applied, which is more convenient to use than traditional pulsed partial discharge detector;

☀ The test bandwidth range is 30kHz ~ 2.0GHz, suitable for the detection principle of various frequency bands;

Product Application:

ZXPD-200L partial discharge detector is widely used in the following fields:

Technical Parameters:

Product configuration list:

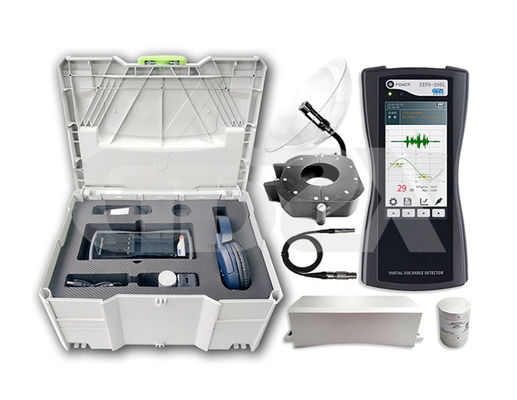

The ZXPD-200L partial discharge detector is composed of the detection host, sensor, PC, software CD and related accessories. Among them, the sensor, PC and software CD are optional parts.Shown as below

.
