|Product Name:||Insulating Oil Breakdown Voltage Tester||Step-up Transformer capacity :||1.5 KVA|
|Rate Of Voltage Rise:||0.5 KV/s，1kV/s ,2.0kV/s，3.0kV/s , 5.0kV/s Five Gears||Output Voltage:||0～80 KV|
|Aberration Rate of Power Supply:||＜1%||Display Mode:||Big LCD Display Chinese Characters|
|Working Power Supply:||AC 220V ± 10%; 50/60± 5 Hz||Environment Temperature And Relative Humidity:||0～40℃; ≤85%|
MCU Control Dielectric Strength Tester,
3% Accuracy Dielectric Strength Tester,
MCU Control Dielectric Strength Test Equipment

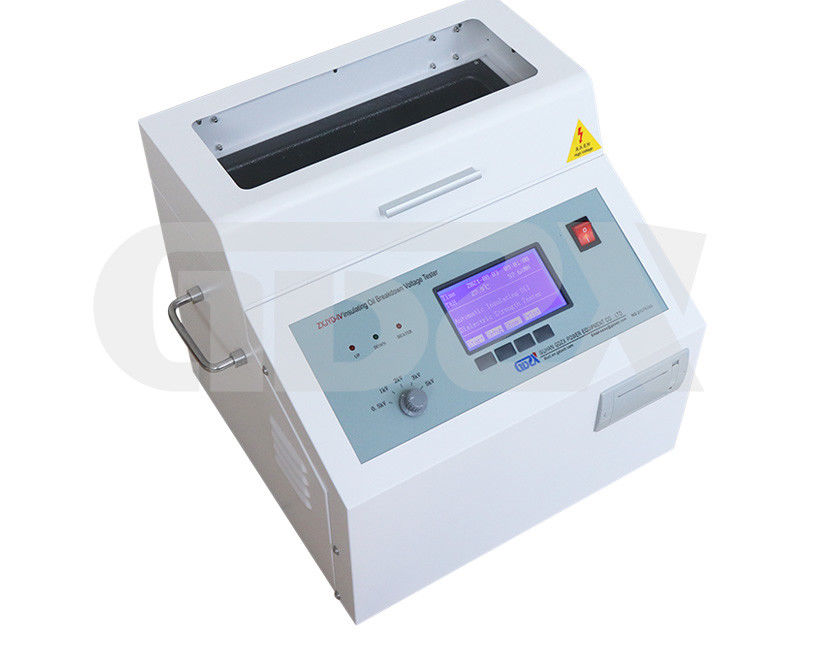

ZXJYD-IV Insulating Oil Breakdown Voltage Tester
ZXJYD-IV Insulating Oil Breakdown Voltage Tester for insulating oil is developed according to the national standard GB-86 determination of dielectric strength of insulating oil. The LCD display of the instrument can display the test process and results. The built-in EEPROM memory can store more than 100 groups of test data and results. All human-computer interaction operations are completed by rotating the mouse. The micro printer can print the test results at any time. The tester has simple operation and powerful function, It is stable and reliable, with strong anti-interference ability, and there is no crash during the test.
1. The instrument adopts the large capacity single-chip microcomputer control,works stably and reliably.
2. Instrument can eliminate the phenomenon of crash with wide range of watchdog circuit
3. A variety of operation to choose, Instrument program with IEC156, ASTM D877 and ASTM D1816 three methods of national standard and custom operations for different users’ multiple choice
4. Instrument test cell is made of a special glass casting form once to eliminate the phenomenon of oil leaking and other interference
5. instrument can take articularly high voltage terminal sampling design for test values to analogue-digital converter, to avoid the error caused in the analog circuit, to make more accurate measurement results.
6. Instrument internal functions of overflowing, overvoltage, short circuit be protected,and are good for antijamming capability and electromagnetic compatibility
7. Instruments are portable structure , easy to move, used inside and outside rooms.
|1. Step-up transformer capacity||1.5 kVA|
|2. Rate of voltage rise||0.5 kV/s,1kV/s ,2.0kV/s,3.0kV/s , 5.0kV/s five gears|
|3.Output voltage||0～80 kV|
|4. Aberration rate of power supply||＜1%|
|5. Display mode||Big LCD display Chinese characters|
|6.Electrode gap||standard 2.5 mm|
|7.Size and weight||54*50*50cm; 40kg;|
|3. Working power supply||AC 220V ± 10%|
|4. Supply frequency||50/60± 5 Hz|
|5. Power consumption||＜200 W|
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
