|Drop Formula:||Electric Quantity Tit-ration (Coulomb Analysis)||Range:||0ug~ 200mg (10ug ~ 100ug)|
|Sensitivity Threshold::||0.1ug||Accuracy:||3-1000ug ±3ug, The Above 1000ug Is Not More Than ±0.2% (Error Without Sampling, Ambient Humidity)|
|Test Sample Type:||Solid, Liquid, Gas||Display Formula:||64K Color High Definition Touch Monitor|
|Power Source:||220V 10V + AC, 50Hz + 2.5Hz||Work Rate:||50VA|
|Ambient Temperature And Humidity:||5～35℃; ≤85%||Package Size And Weight:||49*44*26cm; 13kg|
50VA Oil Moisture Analyzer,
Karl Fischer Itration Oil Moisture Analyzer,
Coulomb Analysis SF6 Gas Analyzer

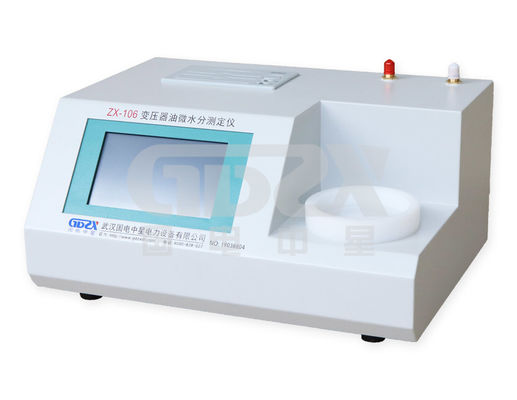

ZX-106 Automatic Transformer Oil trace Moisture Tester by Karl Fisher coulomb tit-ration method, can reliably on liquid, gas and solid samples for trace moisture determination. When testing, for insoluble solid reagent and easy contamination of the electrode and reagent material can be equipped with corresponding solid, gas and liquid injector for indirect determination, is a kind of highly efficient, fully automatic analysis instrument. Widely used in electric power, petroleum, chemical, pharmaceutical, railway, environmental protection, scientific research institutions and other industries.
1. Electrode open circuit fault and short circuit fault auto-detection function
2. Built-in thermal printer, can do off-line printing
3. With Screen protection function to extend LCD life span
4. High precision and rapid measuring speed
|1. Drop formula:||electric quantity tit-ration (Coulomb analysis)|
|2. Range:||0ug~ 200mg (10ug~100ug)|
|3. Sensitivity threshold:||0.1ug|
|4. Accuracy:||3-1000ug ±3ug, The above 1000ug is not more than ±0.2% (Error without sampling, ambient humidity)|
|5. Test sample type:||solid, liquid, gas|
|6. Display formula:||64K color high definition touch monitor|
|7. Data storage:||1000 test records|
|8. State indication:||Dynamic curve, text display|
|9. Stir mixing speed:||sliding touch panel speed control|
|10. Time period:||ten years of normal operation of power down time|
|11. Printer:||micro thermal printer, paper width 56mm|
|12. Power source:||220V 10V + AC, 50Hz + 2.5Hz|
|13. Work rate:||50VA|
|15. Ambient humidity:||≤85%|
|16. Package size and weight:||49*44*26cm; 13kg|
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
