I. Product introduction

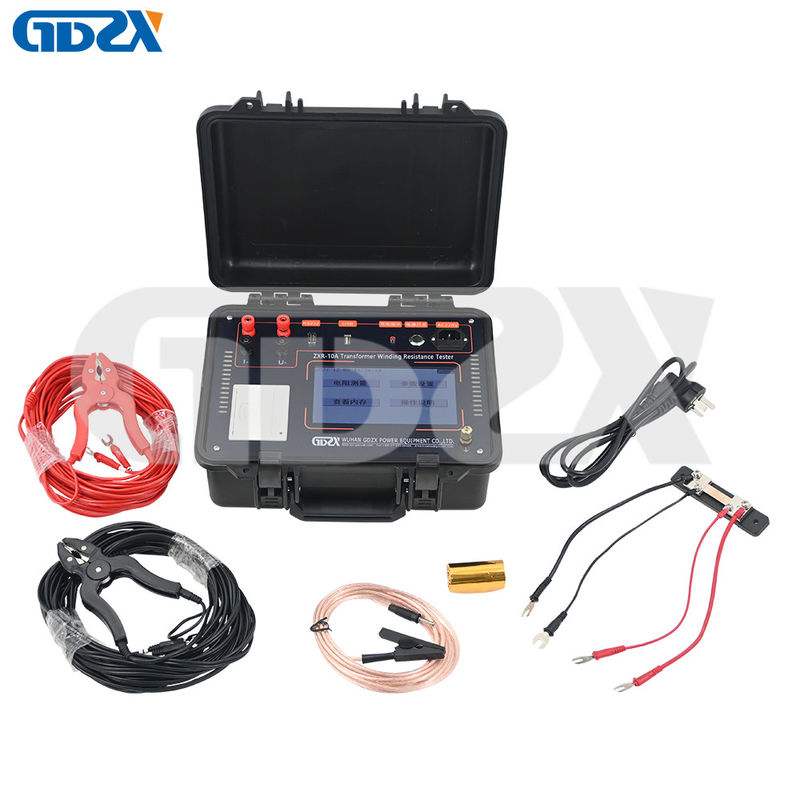

ZXR-10A Transformer Winding Resistance Tester adopts new power supply technology, featuring small size, light weight, large output current, wide range and digital display.
The whole machine is controlled by single-chip microcomputer, which automatically completes functions such as self-test, data processing and display, and has automatic discharge and discharge indication functions.
The instrument has high test accuracy and easy operation, and can realize rapid measurement of direct resistance. The instrument has a built-in lithium battery, which is very convenient for field test work.
II. Features
1. The instrument has a large output current and is light in weight.
2. The instrument provides 7-speed output current selection, which can output up to 10A current.
3. The measuring range of the instrument is 0uΩ-20KΩ.
4. With perfect protection circuit, the performance is more reliable.
5. Lithium battery power supply for easy on-site operation.
6. The LCD prompt menu is easy to use.
7. It has sound and liquid crystal indicating discharge alarm, clear discharge index and reduce misoperation.
III. Technical Indicators
| Specification |
Measuring range |
Output current |
Measurement accuracy |
Volume( mm ) |
Weight (kg) |
| 10A |
1mΩ~20kΩ |
0~10A |
0.2%±2 words |
380×260×160 |
7 |
1. Test current: 10A, 5A, 1A, 200mA, 400mA, 40mA, <5mA.
2. Range:
(1)0-180mΩ (10A)
(2)180mΩ-360mΩ (5A)
(3)360mΩ-1.8Ω (1A)
(4)1.8Ω-4.5Ω (400mA)
(5)4.5Ω-9Ω (200mA)
(6)9Ω-45Ω (40mA)
(7)45Ω-20kΩ (<5mA)
(8)0mΩ-20kΩ (automatic)
3. Accuracy: 2 ‰ ± 2μΩ
4. Resolution: 0.1μΩ
5 Operating temperature: -20 ~ 40 ℃
6. Humidity: ≤ 80% RH, no condensation
7. Power Supply: Lithium-ion rechargeable battery.
8. Volume: 400 × 220 × 320mm
9. Weight: 10kg
10. Battery working time: about 2 hours of continuous operation.
