DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits

DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits
DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits

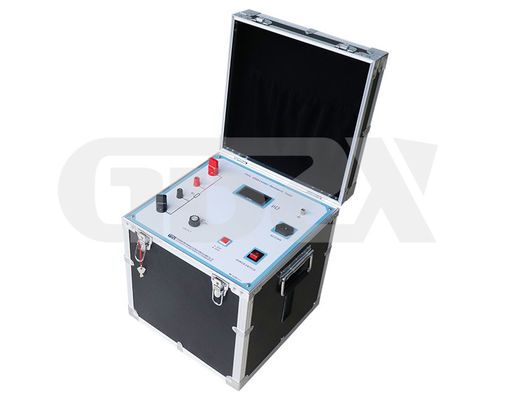

Large Image :  DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXHL-600A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $4015.00-$7089.00/set
Packaging Details: Packing bag or carton
Delivery Time: 8-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1200Sets/ year
Detailed Product Description
Measurement Range: 1~1999.9μΩ Resolution: 1μΩ
Measured Current (customerized): DC 100A、200A、400A、600A Accuracy: 0.50%
Continuous Working Time: 100A:600S,200A:60S,400A:10S,600A:10S Power Supply: AC220V±10% 50Hz
Dimension: 350×350×510 Mm Weight: 30Kg(not Including Accessories)
High Light:

DC 600A Contact Resistance Tester

,

Switchgear Circuits Contact Resistance Tester

,

DC 600A contact resistance meter

DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits



Product introduction

   ZXHL-600A Contact Resistance Tester is designed for measuring contact resistance of Switching Control Equipment, using High-frequency switching power supply technology and digital circuit technology. It is high precision and good stability and can meet most power systems’ requirements in high-voltage switches maintenance and high-voltage switches factory contact resistance measurement.

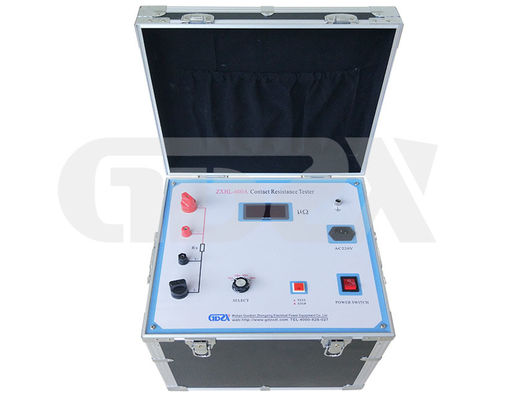

DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 0

Features

1. Large current: sustainable output test current from a constant current source, which overcome the malpractice of instantaneous current of the impulse type power, can effectively break through the oxide film of the switch contact, get accurate test results.

2. High stability. under strong interference, the last number displayed by the LCD within the range of ±1, with steady reading and good reproducibility

3. Long service life: use high precision resistsance to eliminates the effect from ambient temperature

4. Easy to use: small in volume, light in weight.

5. Optional to buit in printer or without printer.



DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 1


Technical Indicators

Measurement range 1~1999.9μΩ
Resolution 1μΩ
Measured current (customerized) DC 100A,200A,400A,600A
Accuracy 0.50%
Continuous working time 100A:600S,200A:60S,400A:10S,600A:10S
Display 3½ LED
Power supply AC220V±10% 50Hz
Service conditions

1)Temperature -10℃~40℃

2)Humidity:≤80%RH

Dimension

350×350×510 mm



Weight

30Kg(not including accessories)





Produc pictures

DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 2DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 3DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 4DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 5



DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 6DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 7DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 8DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 9



Company introduction

    Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 10

DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 11





Service and Warranty



Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.

Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.


PACKING AND SHIPPING

(1)We will ship products within 10 days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

If you need detailed specification, please feel free to contact us.
DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 12
Test cases

DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 13DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 14DC 600A Contact Resistance Tester For Measurement of Switchgear Circuits 15
