| Product Name: | Transformer Short-circuit Impedance Tester | Environment Temperature: | -10℃～40℃ |
|---|---|---|---|
| Environment Humidity: | ≤80% | Single Phase Voltage: | 220（1±10%）V |
| Frequency: | 50Hz±1Hz | Waveform: | Sine Wave, Distortion≤2% |
| AC Output Frequency: | 50Hz±0.2Hz（adjustable） | AC Output Capacity: | Rating 1000VA |
| Synchronous Sampling Channels: | 6 | Voltage Range: | 0V～500V |
| Current Range: | 0mA～100mA、0A～10A | Weight: | 30kg (exclude Accessories) |
| Dimension: | 530*320*600（mm） | ||
| High Light: | On Load Tap Changer Parameter Tester,On Site AC Parameter Tester,On Site Transformer Testing Equipment |
||

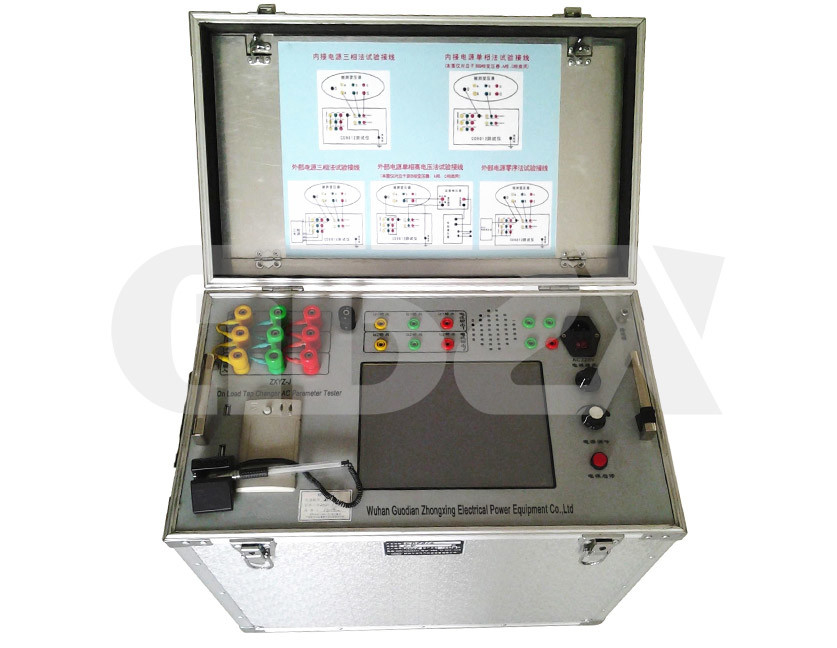

Transformer On Load Tap Changer AC Parameter Tester For On Site
Product introduction
ZXYZ-J On Load Tap Changer AC Parameter Tester is an ideal device for testing on load tap changer.
Features
Technical Indicators
|
1. Working condition:
|
1)environment temperature: -10℃～40℃ 2)environment humidity: ≤80% 3)altitude: ≤2000m |
|
2. Power supply
|
1)Single phase voltage: 220(1±10%)V 2)Frequency: 50Hz±1Hz 3)Waveform: sine wave, distortion≤2% |
|
3. Internal output testing power:
|
1)AC output frequency: 50Hz±0.2Hz(adjustable) 2)AC output voltage range: Three phase four line 0～500V( voltage adjustable) 3)AC output capacity: rating 1000VA |
|
4)AC power source waveform distortion factor:≤3% 5)AC current voltage phase angle: 120°angle difference≯120°±1° |
|
|
4,Accuracy
|
1)Synchronous sampling channels: 6 2)Sampling data accuracy: 16 digits 3)Sampling speed: 200 k/s/channel |
|
4)Sampling panel caching depth: 8 M byte FIFO 5)Voltage range: 0V～500V 6)Current range: 0mA～100mA,0A～10A 7)Voltage current accuracy: 0.5 |
|
|
5,Insulation
|
1)Insulation resistance: power supply input terminal to case ＞20MΩ 2)It can withstand 1500V AC voltage (RMS) |
|
6,Weight and volume:
|
1)Weight: 30kg (exclude accessories) 2)Dimension: 530*320*600(mm) |
Test cases
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
