ZX-MOA 30kV Intelligent Zinc Oxide Lightning Arrester Leakage Current Tester

Name: ZX-MOA 30kV Intelligent Zinc Oxide Lightning Arrester Leakage Current Tester
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZX-MOA
Price: 1,460.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZX-MOA

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: US $963.00-$1958.00 /SET

Packaging Details: Packing wooden case or carton

Delivery Time: 7-20 work days

Payment Terms: L/C,T/T

Supply Ability: 1200sets/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                Intelligent Lightning Arrester Leakage Current Tester, 30kV Leakage Current Tester, 30kV Lightning Arrester Tester


Product Name:	Zinc Oxide Arrester DC Parameter Tester	Measurement Range:	Voltage 0-30kV Or 0-60kV Or 0-120kV For Option
Current:	0-2000μA.	Measurement Accuracy:	Voltage 1%.
Ambient Temperature:	0～+40℃	Relative Humidity:	≤85％(at 25℃)
Altitude:	＜1000M	Power Supply:	220V±10％
Frequency:	50±1Hz

Product Name:	Zinc Oxide Arrester DC Parameter Tester
Measurement Range:	Voltage 0-30kV Or 0-60kV Or 0-120kV For Option
Current:	0-2000μA.
Measurement Accuracy:	Voltage 1%.
Ambient Temperature:	0～+40℃
Relative Humidity:	≤85％(at 25℃)
Altitude:	＜1000M
Power Supply:	220V±10％
Frequency:	50±1Hz

Product Description

ZX-MOA Zinc Oxide Arrester DC Parameter Tester

Product introduction

The ZX-MOA Zinc Oxide Arrester DC Parameter Tester is specially used to detect the internal defects of poor electrical contact between MOA valves of gapless zinc oxide arrester for power system, and measure the DC reference voltage (U1mA) of MOA and the leakage current under 0.75 U1mA. This instrument integrates the DC high-voltage power supply, measurement and control system. All the components are concentrated in one box. It has the characteristics of small size and light weight.

ZX-MOA 30kV Intelligent Zinc Oxide Lightning Arrester Leakage Current Tester 0

Features

1. Automatic measurement, convenient and quick operation

The instrument adopts the automatic control principle of the closed-loop adjustment precision of 1mA current and 0.75 times the DC reference voltage, using microcomputer control measurement process, leakage current DC reference voltage of arrester only needs to measure the Zinc Oxide 1mA press a button to automatically when the DC reference voltage and 0.75 times of the process takes about 15 seconds very suitable for mass measurement.

2. Integrated structure, small volume, light weight

The instrument consists of high voltage power supply, measurement and control system. All the components are concentrated in a case. It has the characteristics of small volume, light weight and so on.

3. Special process design, simple connection

Technical Indicators

1. Measurement range	Voltage 0-30kV or 0-60kV or 0-120kV for option
2. Current	0-2000μA.
3. Measurement accuracy	Voltage 1%.
4. Ambient temperature	0～+40℃
5. Relative humidity	≤85％(at 25℃)
6. Altitude	＜1000M
7. Power supply	220V±10％ Frequency: 50±1Hz

Product pictures

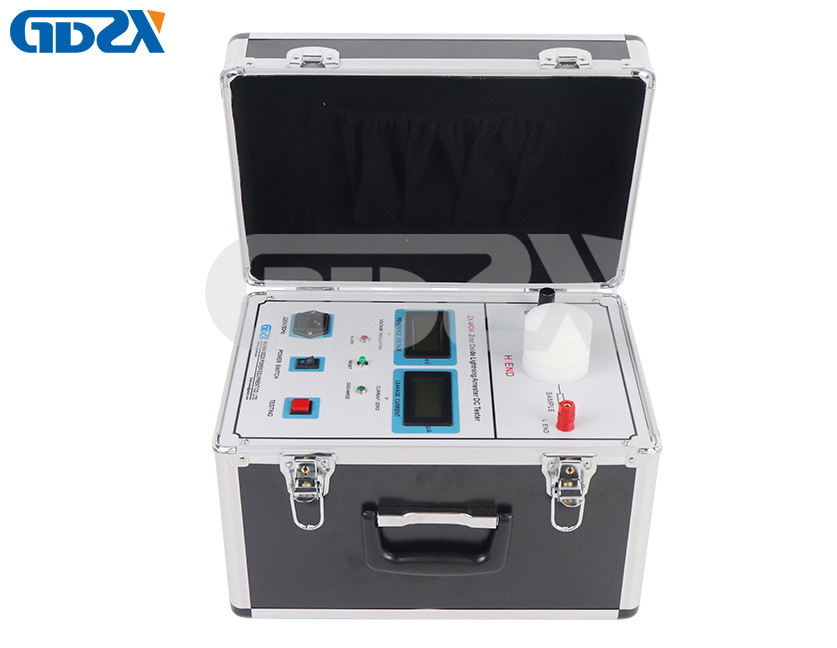

ZX-MOA 30kV Intelligent Zinc Oxide Lightning Arrester Leakage Current Tester 2
