| Product Name: | Merging Unit Tester | Auxiliary DC Output: | 110V/220V DC (can Switch) |
|---|---|---|---|
| Power Supply: | AC：220V±15% Frequency: 50Hz±10Hz | Optical Ethernet Interface: | 6 Pairs×100Mbits/s,SC,multi-mode,1310nm; |
| Optical Serial Interface: | 5pairs×(2~10Mbits/s, SC, Multi-mode, 850nm； | Switch Input: | 8 Channels,10-250VDC Or Idle Contact, Auto-identifying, No Polarity |
| Switch Output: | 8 Channels, Idle Contact/fast Output, AC/DC Breaking Capability:0.5A, 250V | Dimension: | 360 ×200 ×415 （mm） |
| Weight: | 16.8Kg | ||
| High Light: | 220V Merging Unit Tester,110V Merging Unit Tester,Electromagnetic Transformer Input Tester |
||
110V/220V Merging Unit Tester For Testing Electronic /Electromagnetic Transformer Input Test
Product introduction

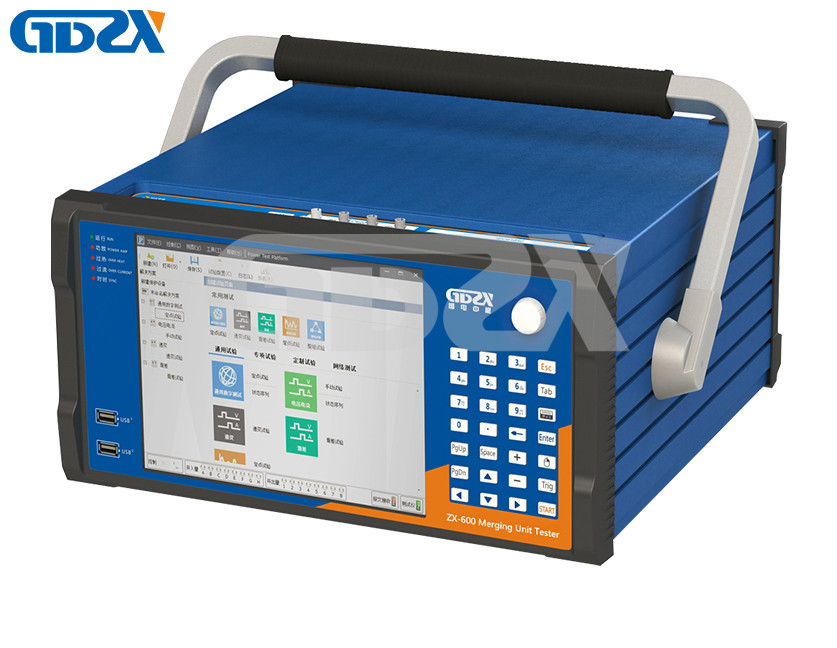

ZX-600 Merging Unit Tester is a test tool developed for Merge unit testing. Because of the difference between design and Construction of current intelligent station, The device can be used to Carry out a comprehensive and effective test for the input of the electronic transformer electromagnetic transformer input, electronic transformer and electromagnetic hybrid mixed input , and then meet the combined unit test in practical engineering work. And then satisfied the testing of the merging units in various practical project.
Features
| AC voltage source |
6×120V, resolution: 100μV, maximum output power: 40VA/phase |
Accuracy:0.05% |
| AC current source |
6×20A, resolution: 25μA, maximum output power: 120VA/phase |
Accuracy: 0.05% |
| DC voltage source |
6×170V, resolution:100μV, maximum output power: 30VA/phase |
Accuracy: 0.1% |
| DC current source |
6×10A, resolution:25μA, maximum output power:60VA/phase |
Accuracy:0.1% |
| Output frequency | 0~2500Hz, resolution: 1mHz | Accuracy: 0.001Hz |
| Output phase | 0~359.999°, resolution: 0.001° | Accuracy: 0.05° |
| Output harmonic | DC component, 2~20 order harmonic | |
|
Current voltage synchronization |
＜5μs | |
| Auxiliary DC output | 110V/220V DC (can switch) | |
| Small signal output | 12×(0~7.07VAC/0~10VDC), resolution: 1mV | Amplitude accuracy: 0.05% |
| phase accuracy:0.05° | ||
| Frequency accuracy:0.001Hz | ||
|
Optical Ethernet interface |
6 pairs×100Mbits/s,SC,multi-mode,1310nm; |
Sending dispersion: <0.1μs Receiving time accuracy: <25ns |
| IEC61850-9-1/2/LE,Goose,IEEE-1588 | 1588 time synchronization accuracy:<80ns | |
|
Optical serial interface |
5pairs×(2~10Mbits/s, SC, multi-mode, 850nm； | Sending dispersion:<0.1μs |
|
IEC60044-7/8,FT3; support Manchester code or asynchronous serial port transmission method |
Receiving time accuracy:<25ns | |
| Synchronous interface |
Built in GPS;1 pair×IRIG-B/PPS optical port, SC, multi-mode, 850nm |
Accuracy:<1μs |
|
Electrical Ethernet interface |
1pcs, RJ-45,100Mbits/s | |
| Switch input |
8 channels,10-250VDC or idle contact, auto-identifying, no polarity |
|
| Switch output |
8 channels, idle contact/fast output, AC/DC breaking capability:0.5A, 250V |
Fast output time:<10μs |
| Screen | 8.4” 1024×768 | |
| Power supply | AC:220V±15% frequency: 50Hz±10Hz | |
| Dimension | 360 ×200 ×415 (mm) | Weight 16.8Kg |
Test cases
