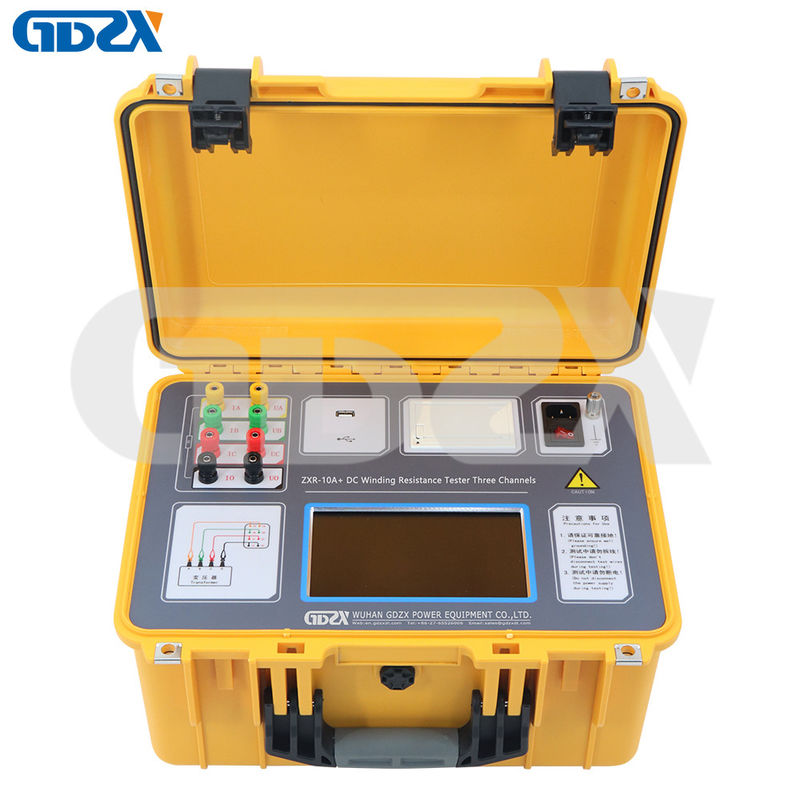

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels

Name: ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels
Brand: Wuhan GDZX Power Equipment Co., Ltd
SKU: ZXR-10A+
Price: 4,344.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GDZX

Certification: ISO9001

Model Number: ZXR-10A+

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: US $3119.00-$5569.00 /SET

Packaging Details: Packing wooden case or carton

Delivery Time: 7-20 work days

Payment Terms: L/C,T/T,Western Union,MoneyGram,D/A,D/P,WeChat,Paypal

Supply Ability: 1200sets/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Transformer DC Winding Resistance Tester, DC Winding Resistance Tester Three Channels, Three Phase Transformer Testing Equipment


Product Name:	DC Winding Resistance Tester	Single-phase Output Four Stalls Current:	10A, 5A, 1A
Three-phase Output Current:	10A+10A，5A+5A，1A+1A	Resolution:	0.1μΩ
Accuracy:	0.2%	Humidity:	<90%RH
Temperature:	0～40℃	Working Power:	AC220V±10%, (50±1)Hz
Volume:	380180320mm³	Weight:	11kg(Excluding Test Lines)

Product Name:	DC Winding Resistance Tester
Single-phase Output Four Stalls Current:	10A, 5A, 1A
Three-phase Output Current:	10A+10A，5A+5A，1A+1A
Resolution:	0.1μΩ
Accuracy:	0.2%
Humidity:	<90%RH
Temperature:	0～40℃
Working Power:	AC220V±10%, (50±1)Hz
Volume:	380180320mm³
Weight:	11kg(Excluding Test Lines)

Product Description

Three Phase Transformer DC Winding Resistance Tester Three Channels

Product introduction

ZXR-10A+ DC Winding Resistance Tester (Three channels) can measure three circuits simultaneously and automatically make three phase measurement, three line measurement, single phase measurement. It applies to YN, Y, △ type transformers.

Features

1. New switching power supply technology, small ripple, good stability, high power

2. Provide several kinds of measuring methods: three loop measuring(YN), three phase auto measurement, three line auto measurement(Y, △) and traditional single phase measurement

3. Signal to test circuit, little noise, strong anti-interference performance, test data reliable

4. Perfect protection function

5. Compact structure, small size, light weight.

6. Multiple current options, wide range

7. English interface, menu tip function, easy to operate.

Technical Indicators

1.Single-phase output four stalls current:	10A, 5A, 1A
2.Three-phase output current:	10A+10A,5A+5A,1A+1A
3.Resolution:	0.1μΩ
4.Range:	0.2mΩ-2Ω(10A); 10mΩ-4Ω(5A); 20mΩ-20Ω(1A); 0.2mΩ-2Ω(10A+10A); 10mΩ-4Ω(5A+5A); 20mΩ-20Ω(1A+1A)
5.Accuracy:	0.2%
6.Humidity:	<90%RH
7.Temperature:	0～40℃
8.Working power:	AC220V±10%, (50±1)Hz
9.Volume:	380180320mm³
10.Weight:	11kg(Excluding test lines)

Packaging & Shipping

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 5

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 6

Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 10

Company Information

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 11

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 12

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 13

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 16

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 17

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 18

Our Services

Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 19

ZXR-10A+ Three Phase Transformer DC Winding Resistance Tester Three Channels 20

FAQ

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.

2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.

3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.

4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance, balance before shipment.

5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.

6.Q: Will you provide OEM service?
A: OEM & ODM services available

7.Q: How long is the product warranty?
A: 1 year.
