Payment & Shipping Terms:
|Product Name:||Automatic Transformer Oil Trace Moisture Tester||Range:||0ug~ 200mg (10ug ~ 100ug)|
|Test Sample Type:||Solid, Liquid, Gas||Display Formula:||64K Color High Definition Touch Monitor|
|Data Storage:||1000 Test Records||Work Rate:||Work Rate 50VA|
|State Indication:||Dynamic Curve, Text Display||Time Period:||Ten Years Of Normal Operation Of Power Down Time|
|Power Source:||220V 10V + AC, 50Hz + 2.5Hz||Ambient Temperature And Humidity:||5～35℃; ≤85%|
|Package Size And Weight:||49*44*26cm; 13kg|
Transformer Oil Trace Moisture Tester,
50VA Transformer Oil Trace Moisture Tester,
ISO9001 Transformer Oil Testing Equipment

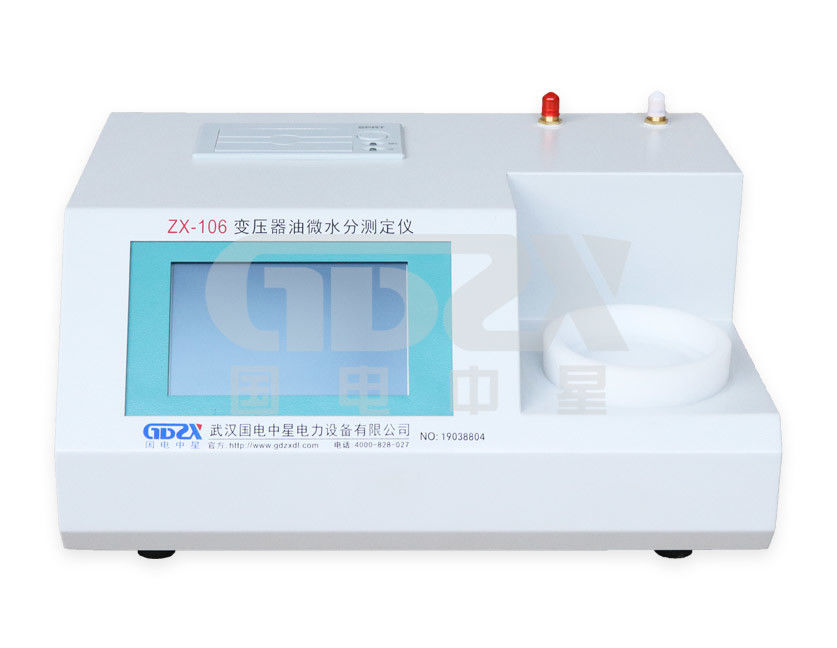

ZX-106 Automatic Transformer Oil trace Moisture Tester by Karl Fisher coulomb tit-ration method, can reliably on liquid, gas and solid samples for trace moisture determination. When testing, for insoluble solid reagent and easy contamination of the electrode and reagent material can be equipped with corresponding solid, gas and liquid injector for indirect determination, is a kind of highly efficient, fully automatic analysis instrument. Widely used in electric power, petroleum, chemical, pharmaceutical, railway, environmental protection, scientific research institutions and other industries.
1. Electrode open circuit fault and short circuit fault auto-detection function
2. Built-in thermal printer, can do off-line printing
3. With Screen protection function to extend LCD life span
4. High precision and rapid measuring speed
|1. Drop formula:||electric quantity tit-ration (Coulomb analysis)|
|2. Range:||0ug~ 200mg (10ug~100ug)|
|3. Sensitivity threshold:||0.1ug|
|4. Accuracy:||3-1000ug ±3ug, The above 1000ug is not more than ±0.2% (Error without sampling, ambient humidity)|
|5. Test sample type:||solid, liquid, gas|
|6. Display formula:||64K color high definition touch monitor|
|7. Data storage:||1000 test records|
|8. State indication:||Dynamic curve, text display|
|9. Stir mixing speed:||sliding touch panel speed control|
|10. Time period:||ten years of normal operation of power down time|
|11. Printer:||micro thermal printer, paper width 56mm|
|12. Power source:||220V 10V + AC, 50Hz + 2.5Hz|
|13. Work rate:||50VA|
|15. Ambient humidity:||≤85%|
|16. Package size and weight:||49*44*26cm; 13kg|
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
