Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable
Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable

Large Image :  Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable

Product Details:
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: SMG2000E
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: US $ 700.00-1400.00/Set
Packaging Details: Packing wooden case or carton
Delivery Time: 8-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1200sets/year
Detailed Product Description
Product Name: Double Clamp Digital Phase Meter AC Current Measuring Range: 200mA, 2A, 10A
Voltage Measuring Range: 20V, 200V, 500V Signal Waveform:: Sine Wave
Signal Frequency:: 50HZ+/-0.2HZ Sampling Rate: 3 Times Per Second
Power Supply: Single 9V Laminated Cell Current Of Power Is Less Than 5mA Ambient Temperature And Humidity:: 23℃+/-5℃; 45%~75%RH
Size And Weight:: 34*30*13cm; 3kg
High Light:

Double Clamp Phase Volt Ampere Meter

,

SMG2000E Volt Ampere Meter

,

Double Clamp Digital Phase Meter

SMG2000E Double Clamp Digital Phase Meter



Product introduction

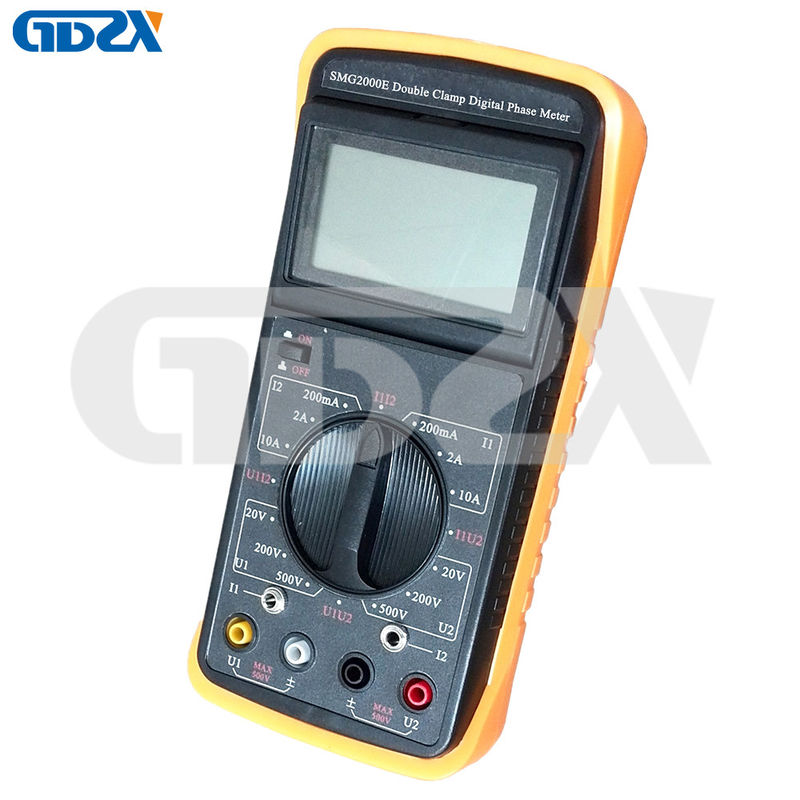

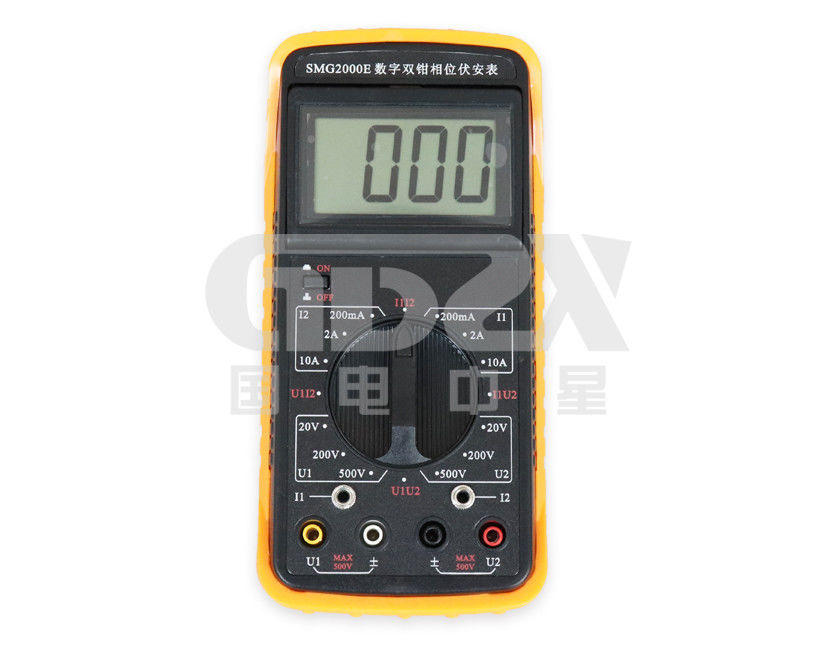

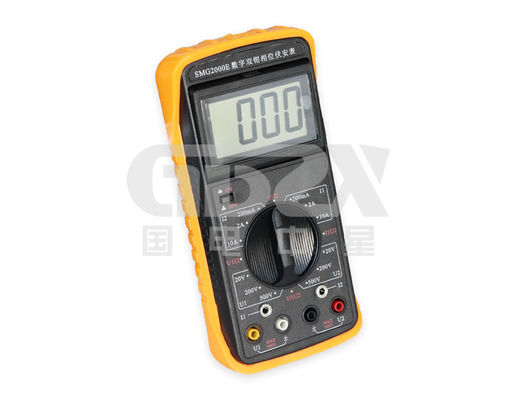

SMG2000E Double Clamp Digital Phase Meter is special designed for testing voltage, current and phase onsite, it is in high-precision, low price, portable hand-held, dual-channel input measuring product. It’s easy to measure the phase between U-U, I-I and U-I, identify the inductive circuit ,capacitive circuit and the phase sequence of three-phase voltage, detect the wiring group of transformer, test the secondary circuit and bus differential protection system, read the phase relationship among the CT groups of a differential protection system, and check if the watthour meter was correctly wired.

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 0

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 1



Features

1. Ingenious structure, easy to operate, hand held structure

2. no need to disconnect circuit or change measurement range under 10mA-10A, 3V-500v when test phase

3. use high contrast LCD, characters can be 25mm, the screen angle can be 70°to obtain the best visual effects

4. the function and layout of the switch are reasonable, rotating can read the measuring voltage, current and phase.

5. High resolution, with new type patent current clamp, current resolution up to 0.1mA; voltage resolution up to 0.1V.

6. Low power consumption, with the function of testing the voltage of battery.

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 2Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 3



Technical Indicators

1.Base Conditions and Working Conditions:
Influence Quantity: Base Condtion
Ambient Temperature: 23℃+/-5℃
Ambient Humidity: 45%~75%RH
Signal Waveform: sine wave
Signal Frequency: 50HZ+/-0.2HZ
External Electric Magnetic Field: To be avoided
Position of Measured current carrying conductor in clamp jaw: Optional position
Current/ voltage Amplitude in Phase / Frequency/ Phase Sequence Test:

Phase U1-U2: 30V~500V;

Phase I1-I2: 10mA~10.00A;

Phase U1-I2 or I1-U2: 10V~500V, 10mA~10.00A

Limits of Rated Working Error: Under the conditions described in 1, the limits of the rated operating error will not exceed twice of the limits of intrinsic error.
2.Intrinsic Error and Performance Indicators under Base Conditions:
Measure Range Resolution Limits of intrinsic error
Voltage
20V 0.01V +(0.3%RD+0.2% Range)
200V 0.1V +(0.3%RD+0.2% Range)
500V 1V +(0.3%RD+0.2% Range)
Current Input Impedance: 2MΩ for all the measure range.
Voltage input impedance of phase testing: >500KΩ.
Impedance of input voltage loop when measuring phase of U1-U2: 40KΩ
Measure Range Resolution Limits of intrinsic error
AC current
200mA 0.1mA +(0.3%RD+0.2% Range)
2A 1mA +(0.3%RD+0.2% Range)
10A 10A +(0.3%RD+0.2% Range)
Phases U-U,U-I, I-I
0~360° +/-2°
3.General Specification:
Display: 3 1/2
Sampling rate: 3 times per second
Power supply: Single 9V laminated cell current of power is less than 5mA
Dimensions: Meter shell 192*95*55mm3
Clamp shell 140*42*20mm3
Nipper jaw Φ7mm*9mm
Weight: Meter body 280g
Measuring clamps 2x200g
Storage Conditions: Temperature -10℃~50℃
4.Size and weight: 34*30*13cm; 3kg

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 4



Product pictures

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 5Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 6

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 7Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 8

Digital Display Double Clamp Phase Volt Ampere Meter Handheld Portable 9

PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
