Product Details:
Payment & Shipping Terms:
|
| Measurement Error:: | <5% | Instrument Weight:: | 5kg |
|---|---|---|---|
| Power Frequency:: | 50 | Working Power Supply:: | AC220V |

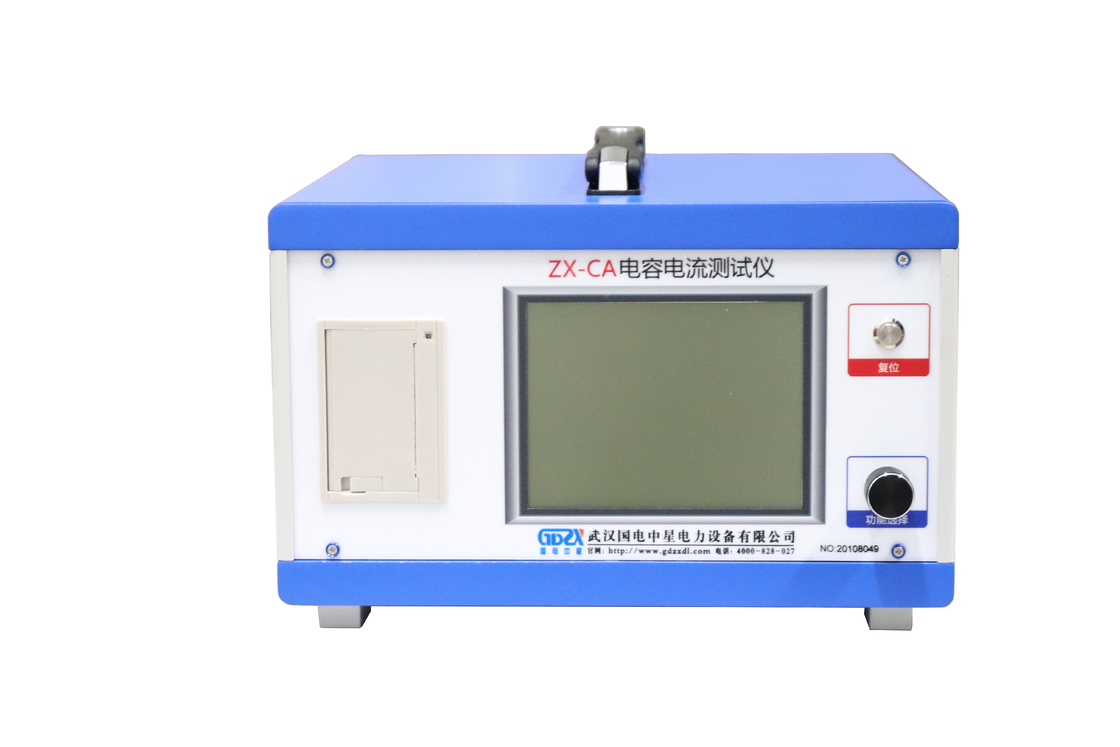

ZX-CA 6kV to 35kV Automatic Capacitance Current Tester
At present, the neutral point of the power supply of our power distribution system is generally not directly grounded, so when the line is single-phase grounded, the current flowing through the fault point is actually the capacitive current generated by the line-to-ground capacitance. According to statistics, the fault of the distribution network is largely caused by the excessive capacitance when the line is single-phase grounded, which cannot cause the arc to self-arrest. Therefore, China's electric power regulations stipulate that when the capacitance current of 10kV and 35kV systems is greater than 30A and 10A respectively, an arc suppression coil should be installed to compensate for the capacitance current, which requires a decision after measuring the capacitance current of the distribution network. In addition, the ground capacitance of the distribution network and the PT parameters will produce PT ferromagnetic resonance overvoltage. In order to verify whether the distribution system will have PT resonance and what kind of resonance occurs, the capacitance of the distribution network to ground must also be accurately measured. The traditional methods of measuring the capacitive current of the distribution network include the direct method of single-phase metal grounding and the indirect measurement method of the added capacitance. These methods all touch the primary equipment, so there are disadvantages such as test danger, complicated operation, and low work efficiency.
Features
1. Measure the capacitance current of the distribution network directly from the secondary side of the PT, without dealing with the primary side.
2. There is no danger of testing, no need to do complicated security measures and wait for long scheduling commands.
3. Simply connect the measuring line to the open triangle end of the PT to measure the capacitance current data.
4. The weak inter-frequency test signal injected at the opening triangle of the PT will not have any impact on the relay protection and the PT itself, and also avoids the 50 Hz power frequency interference signal.
5. The output terminal can withstand 100V AC voltage. During the measurement, a single-phase ground fault occurs in the system, and it will not damage the PT and the tester.
6. No special safety measures are required to make this work safe, simple and fast, and the test results are accurate, stable and reliable.
Technical index
| Ambient temperature | -10 ℃ ~ 50 ℃ |
| Environmental humidity | ≤85% RH |
| Working power supply | AC220V ± 20% |
| Power frequency | 50 ± 5Hz |
| Capacitance | 0.3 ~ 125μF |
| Current | 1 ~ 250A |
| Measurement error | ≤5% |
| Dimensions | 345mm × 295mm × 175mm |
| Instrument weight | 5kg |
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
