Highlight:
Ambient Temperature: |
-10℃～+60℃ |
Ambient Humidity: |
0～100% RH |
Display: |
4.3 Inch Color Touch Screen |
Power Display: |
Percentage Of Battery Status |
Date Display: |
Year, Month, Day |
Time Display: |
Hour, Minute, Second |
Printing Function: |
External Micro Thermal Printer |
Battery Performance: |
Charging Time: 2 Hours; Working Time More Than 10 Hours |
Product Introduction:
WL-VS SF6 handheld micro-water meter is a modern, high-level and intelligent measuring instrument independently developed by our company. This instrument has advantages that are incomparable to similar instruments in terms of measurement principle, degree of automation, and ease of use. It adopts European standard technology to ensure the accuracy and reliability of data. This instrument has a wide measurement range, fast response time, short measurement period, intuitive display and easy operation. This instrument is applicable to a wide range of fields, including humidity measurement of air, nitrogen, inert gas and any gas without corrosive media. It is especially suitable for humidity measurement of SF6 gas. It can be used by electric power, petrochemical, metallurgy, environmental protection, scientific research institutes and other departments, and has a high cost-effectiveness.
Performance Features:
1. Self-calibration: The sensor probe can automatically calibrate the zero point, automatically eliminate system errors introduced by zero point and drift, ensuring the accuracy of each measurement, and avoiding the cumbersomeness of annual calibration.
2. Quick air saving: After turning on the machine and entering the measurement state, the measurement time of microwater separation of each SF6 gas is about 2 minutes.
3. Self-locking connector: It adopts original imported self-locking connector from Germany, which is safe and reliable, and has no air leakage.
4. Data storage: adopts a large capacity design and can store 1,000 sets of test data.
5. Curve function: Large screen curves show the dew point measurement process.
6. Clear display: The color LCD screen directly displays dew point, tiny water (ppm), ambient temperature, time and date.
7. Printing function: External micro thermal printer.
8. USB interface: It can import stored data into a USB drive and process data on the computer.
9. Built-in power supply: rechargeable lithium battery, charge for 2 hours, and can work continuously for 10 hours at a time.
Technical parameters:
|
Dew Point
|
Measurement range
|
-80℃～+20℃(0.04ppm-23700ppm)
|
|
Measurement accuracy
|
±1.0℃(-60℃～+20℃)
±2.0℃(-80℃～-60℃)
|
|
Response time
(+20℃)
|
for -60℃~ +20℃:63% needs 5 seconds, 90% needs 45 seconds
for +20℃~ -60℃:63% needs 10 seconds, 90% needs 240 seconds
|
|
Ambient Temperature
|
-10℃～+60℃
|
|
Ambient Humidity
|
0～100% RH
|
|
Display
|
4.3 inch color touch screen
|
|
Power Display
|
Percentage of battery status
|
|
Date Display
|
Year, month, day
|
|
Time Display
|
Hour, minute, second
|
|
Printing Function
|
External micro thermal printer
|
|
Power Supply
|
AC 220V
|
|
Built-in rechargeable battery
|
|
Battery Performance
|
Charging time: 2 hours; working time more than 10 hours
|
|
Weight
|
2kg
|
|
Dimension
|
250*100*300mm
|
|
Operation Temperature
|
-40℃～+60℃
|
|
Storage Temperature
|
-40℃～+80℃
|

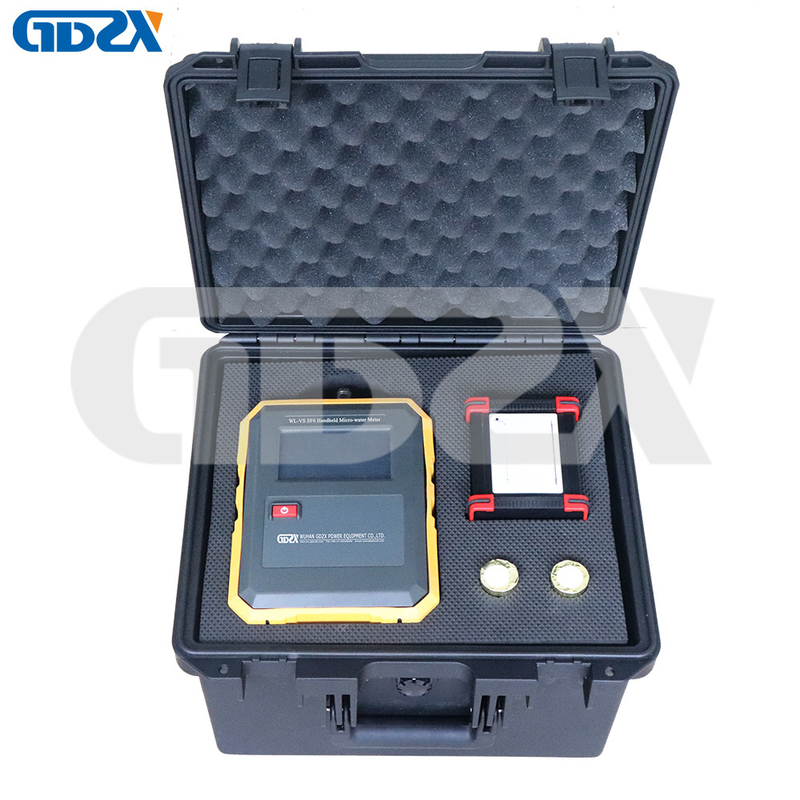

Product Pictures:
Packaging & Shipping
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
Company Information
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Our Services
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
FAQ
1.Q: Are you trading company or manufacturer?
A: We are manufacturer.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the product warranty?
A: 1 year.
