Introduction:

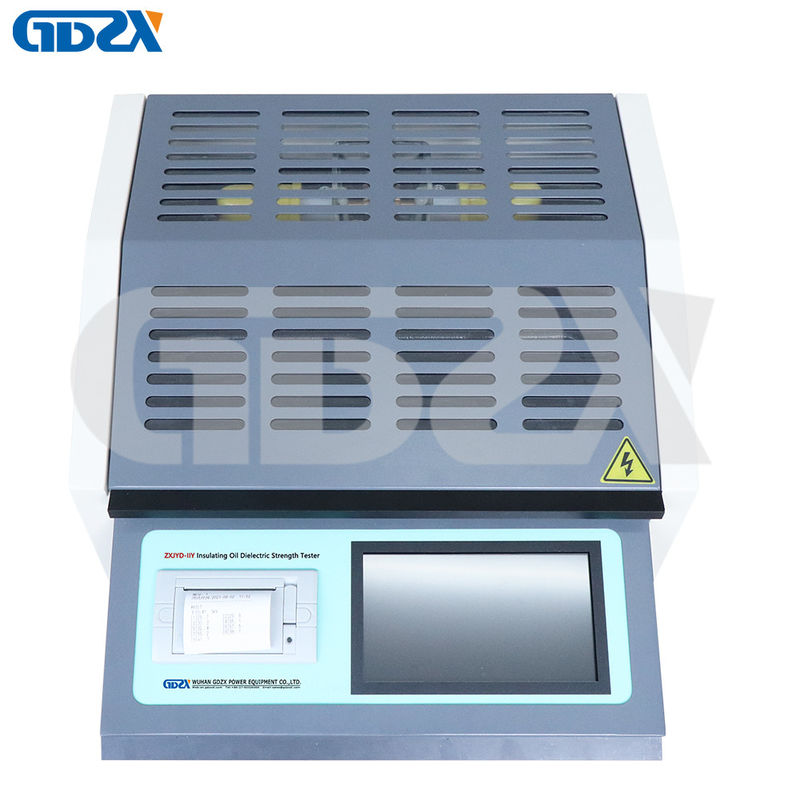

ZXJYD-IIY insulating oil dielectric strength tester is a high-accuracy, fully digital industrial instrument developed by all scientific research and technical personnel of our company, based on the relevant standards and regulations of insulating oil testing, and leverages its own advantages. After many on-site tests and long-term unremitting efforts, it has carefully developed and developed high-accuracy, fully digital industrial instruments. The instrument is easy to operate and has a beautiful and elegant shape. Since fully automatic digital microcomputer control is adopted, the measurement accuracy is high, the anti-interference ability is strong, and the safety and reliability are safe and reliable.
Features:
1. The instrument adopts a large-capacity microcontroller to work stably and reliably.
2. The instrument has temperature, humidity and clock display functions, and can customize infrared oil temperature measurement.
3. The instrument has a wide range of watchdog circuit to eliminate crashes;
4. A variety of standard choices, the instrument program is equipped with GB/T507-1986, GB/T507-2002, DL429.9, IEC156 and self-programming operations, which can adapt to a variety of choices from different users;
5. The instrument oil cup is made of special glass and polymer materials, finely processed to eliminate oil leakage and corrosion;
6. The instrument's unique high-voltage end sampling design allows the test value to enter the A/D converter directly, avoiding errors caused in the analog circuit, and making the measurement results more accurate;
7. The instrument has protection functions such as overcurrent, overvoltage, short circuit, etc., and has extremely strong anti-interference ability and good electromagnetic compatibility;
8. It can be switched at will in Chinese and English to meet any customer needs;
9. The instrument itself has data analysis function to assist staff in determining the quality of the oil; 10. USB or RS232 data transmission (optional);
Product parameters:
| Booster Capacity |
1.5 kVA
|
| Boost speed |
0.5kV/s-5.0kV/s (increment every 0.5) 10 levels are available |
| Output voltage |
0～100 kV (optional) |
| Voltage Accuracy |
(2% reading + 2 words) |
| Power distortion rate |
＜1%
|
| Electrode gap |
Standard 2.5 mm |
| Number of tests |
6 times (1-9 times are optional) |
| Rest time |
900S (0-9000 S optional) |
| Interval still time |
300S (0-900S optional) |
| Stirring time |
15S (0-250S optional) |
| External dimensions |
420mm in length; 360mm in width; 360mm in height |
| Instrument weight |
36kg
|
| Ambient temperature |
0～40℃
|
| Relative humidity |
≤85%
|
| Working power supply |
AC 220V(1 ± 10%)
|
| Power supply frequency |
50 Hz (1 ± 10%)
|
| Power consumption |
＜200 W
|
Product Pictures:
