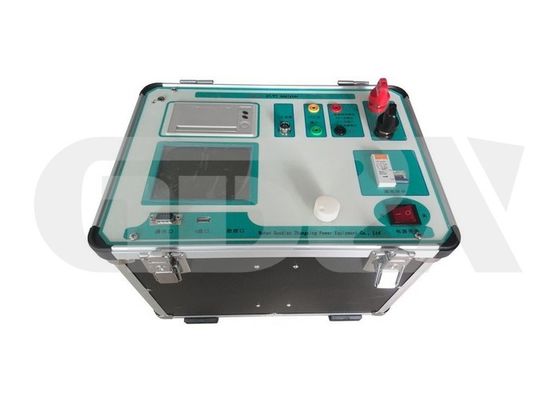

ZXHQ-M+ Automatic CT PT Analyzer

ZXHQ-M+ Automatic CT PT Analyzer
ZXHQ-M+ Automatic CT PT Analyzer

Large Image :  ZXHQ-M+ Automatic CT PT Analyzer

Product Details:
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXHQ-M+
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Output Voltage: 0—1000V Current Output: 0-20A
High Light:

ct pt test set

,

current transformer test set

Introduction:

Full-automatic equipment for testing CT and PT volt-ampere characteristic, 5% and 10% error curve, polarity & ratio, ratio error and phase error (this is for A+ only), secondary winding resistance, secondary burden, AC withstand, degauss.

Features:

1.Output true value of voltage and current, standard sine wave, 50-60Hz.

2.Resolution up to 0.15V

3.Intuitive display of I-V curve, auto coordinate zooming

4.Built-in printer, to print curve and data easily.

5.Optical knob operation, rotate or click to finish all the tests.

6.Save 2000 groups of testing results, which will not lose after power off

7.Perfect data review, search, print, delete function

8.Knee point auto calculation, filtering data printing function

9.Backlight brightness adjust function, date time function

10.RS232 or USB communication interface to connect PC

11.Portable design, suitable for field test

Parameter:

  Input voltage Max voltage output Max current output Power Error
CT V/A output 220V 0—1000V 20A 3KVA <0.5%
PT V/A output 220V 0—220V 10A 3KVA <0.5%
CT Ratio output 220V 0—8V 0—600A ——— <0.5%
PT Ratio output 220V 0—1000V ——— ——— <0.5%
CT Ratio Test Maximum display vaule: 999.9K:5/1 <0.5%
PT Ratio Test Maximum display vaule: 999.9K:100,150,100/3,100/√3 <0.5%
DC resistance Max:0-20Ω <0.5%
Secondary flow Current: 0-200A Time: 5 min Secondary withstand Votalge:0-1000V Time: 5 min
Work temperature -10~55℃ work voltage: AC 220V(±20%)50Hz
Mainmachine volume 350×240×270 Weight 20Kg
