Product Details:
Payment & Shipping Terms:
|
| Product Name: | AC/DC Single Phase Standard Power Source | Working Time:: | Continuous |
|---|---|---|---|
| Output Frequency And Accuracy:: | 50 Hz、60 Hz、400 Hz: <1% | Voltage Current Output Range And Accuracy:: | (23℃±2℃ > 10% Range); |
| Power Supply Consumption:: | AC DC 220V±10%, 50 Hz±1Hz, <180VA; | DC Ripple Coefficient:: | <0.1% |
| AC Distortion:: | <0.5% | Size And Weight:: | 73*59*32cm; 21KG |
| Working Environment:: | Temperature: 5℃~35℃; Relative Humidity: ≤80%; | ||
| High Light: | calibration test bench,electric meter calibration equipment |
||
ZX1030E AC/DC Single Phase Standard Power Source
Product introduction
ZX1030E AC/DC Single Phase Standard Power Source is used for testing and calibrating all kinds of ammeter, voltmeter, ohmmeter under 0.2 level. It can also be used as testing power source, matching with high level standard meters to calibrate ammeter, voltmeter, ohmmeter at 0.2 or higher level. There are two regulation modes: analog regulation (potentiometer) and digital regulation (keyboard).
1. 5½ LED digitally display output by actual value or by percentage;
2. AC/DC current output range: 0~100 uA ~500uA ~2mA~5mA~20mA ~50mA ~200mA ~500mA ~2A~5A~20A~30A(optional)~50A(optional);
3. AC/DC voltage output range: 0~200mV~1V~2V~5V~10V~20V~50V~100V~200V~500V~1000V;
4. Three AC frequency for option: 50Hz,60 Hz,400 Hz;
5. Auto protection or manual resetting function for over load;
6. Over load rang is 10% for each level of voltage, current;
7. Clip-on transformer testing: matching with our product of standard coil, measuring range AC 0~750A ( above 1000A for part of meters) DC 0~1000A, error: ±0.3%;
| 1. Stability: |
DC < 0.01% of full range / 2 min; AC < 0.03% of full range / 2 min; |
| 2. AC distortion: | <0.5% |
| 3. DC ripple coefficient: | <0.1% |
| 4. Output frequency and accuracy: | 50 Hz,60 Hz,400 Hz: <1% |
| 5. Voltage Current Output range and accuracy: | (23℃±2℃ > 10% range); |
| 6. Power supply consumption: | AC DC 220V±10%, 50 Hz±1Hz, <180VA; |
| 7. Working environment: | Temperature: 5℃~35℃; relative humidity: ≤80%; |
| 8. Working time: | continuous |
| 9. Size and weight: | 73*59*32cm; 21KG |

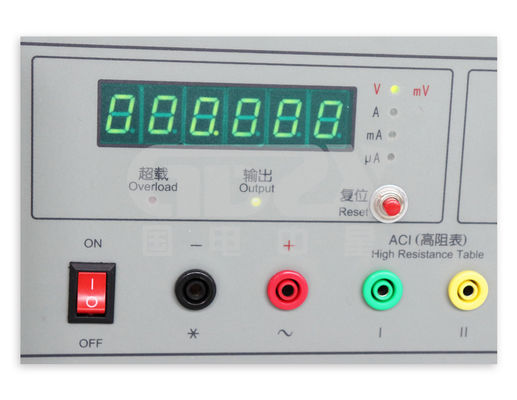

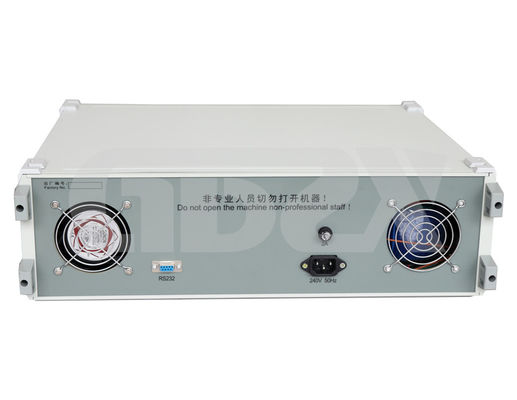

Product pictures
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
